REAR MASTER CYLINDER
GS650E 1982 (Z) USA (E03)

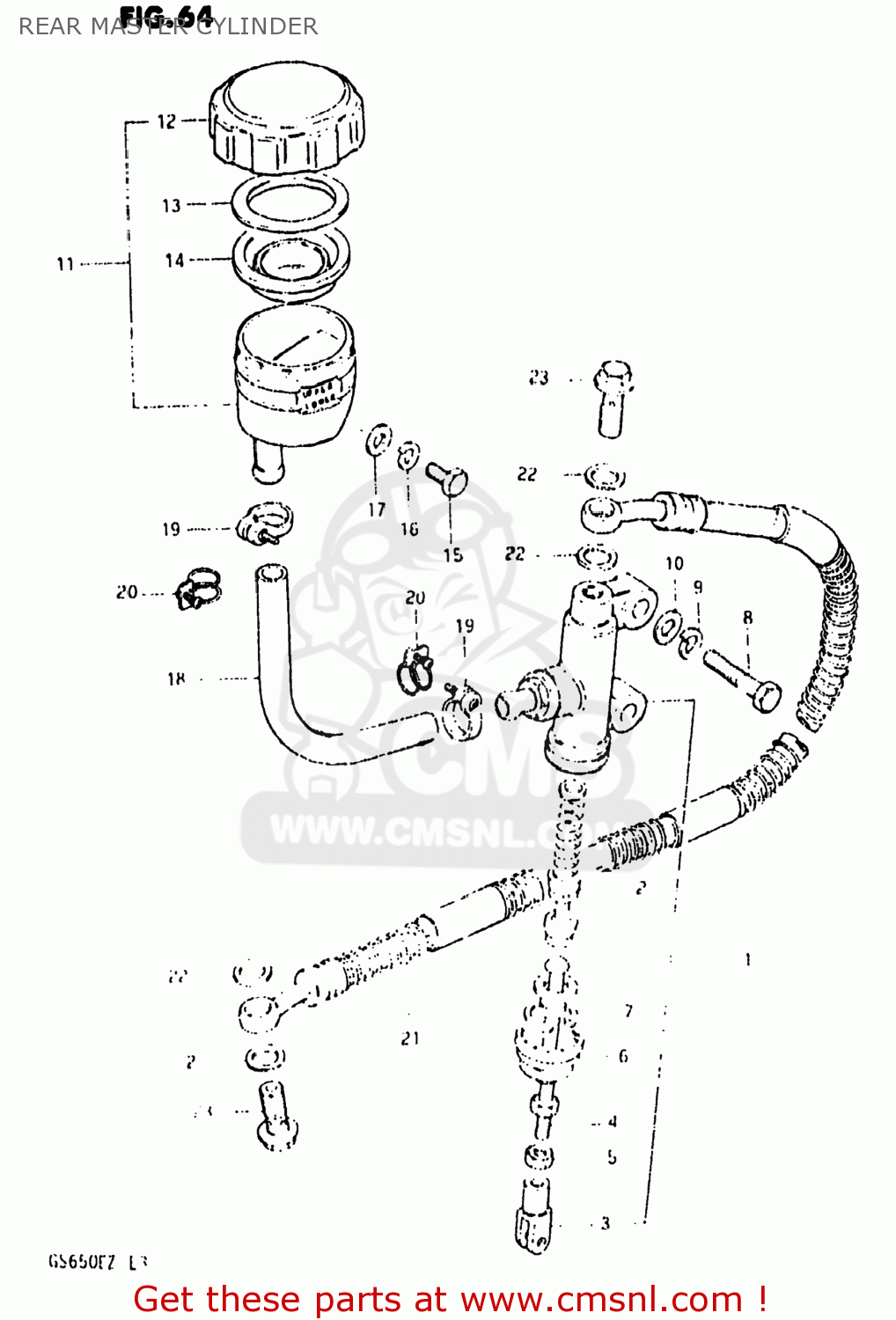

Rear master cylinder diagram GS650E 1982 (Z) USA (E03)
REAR MASTER CYLINDER GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
6960047002
ref: 1-1
69600-47011
CYLINDER ASSEMBLY,REAR MASTER
€ 182.00
1-2
6960047003
ref: 1-2
69600-47011
CYLINDER ASSEMBLY,REAR MASTER
€ 182.00
2-1
6960045810
ref: 2-1
69600-45820
PISTON/CUP SET
€ 53.00
2-2
6960045820
ref: 2-2
PISTON/CUP SET
€ 53.00
3-1
6969245002
ref: 3-1
69692-34300
YOKE
€ 11.00
3-2
6969234300
ref: 3-2
YOKE
€ 11.00
4
6967045001
ref: 4
ROD,PUSH
€ 18.50
5-1
0831012088
ref: 5-1
08310-00087
NUT
€ 2.00
5-2
6969334300
ref: 5-2
69693-05A00
NUT,MASTER CYLINDER
€ 1.50
6
6969145001
ref: 6
BOOT
€ 6.50
7
5116270040
ref: 7
CIRCLIP
€ 3.00
8
0110708308
ref: 8
01500-08307
BOLT (8X30)
€ 2.50
9
0832121088
ref: 9
08321-01087
LOCK WASHER
€ 2.00
10
0832211088
ref: 10
08322-01087
WASHER
€ 2.00
11
6974034230
ref: 11
69740-31D00
TANK ASSEMBLY,RESERVOIR
€ 27.50
12
5966933603
ref: 12
59669-07D00
CAP
€ 16.50
13
5966818441
ref: 13
PLATE,DIAPHRAGM
€ 3.50
14
5966718441
ref: 14
DIAPHRAGM
€ 8.50
15
0110706168
ref: 15
01500-06167
BOLT, UPPER
€ 3.00
16
0832121068
ref: 16
08321-01067
LOCK WASHER
€ 2.50
17
0832221068
ref: 17
08322-01067
WASHER
€ 2.00
18
6973134500
ref: 18
HOSE,RESERVOIR TANK
€ 0.00
19
6973534200
ref: 19
CLAMP
€ 4.50
20
0940016302
ref: 20
09400-16304
CLAMP
€ 4.50
21
6948034503
ref: 21
HOSE,REAR BRAKE
€ 76.50
22
0916110005
ref: 22
09161-10009
WASHER
€ 2.00
23
0936010007
ref: 23
09360-10017
BOLT,UNION
€ 6.50
