CARBURETOR (MODEL Z)
GS650E 1982 (Z) USA (E03)

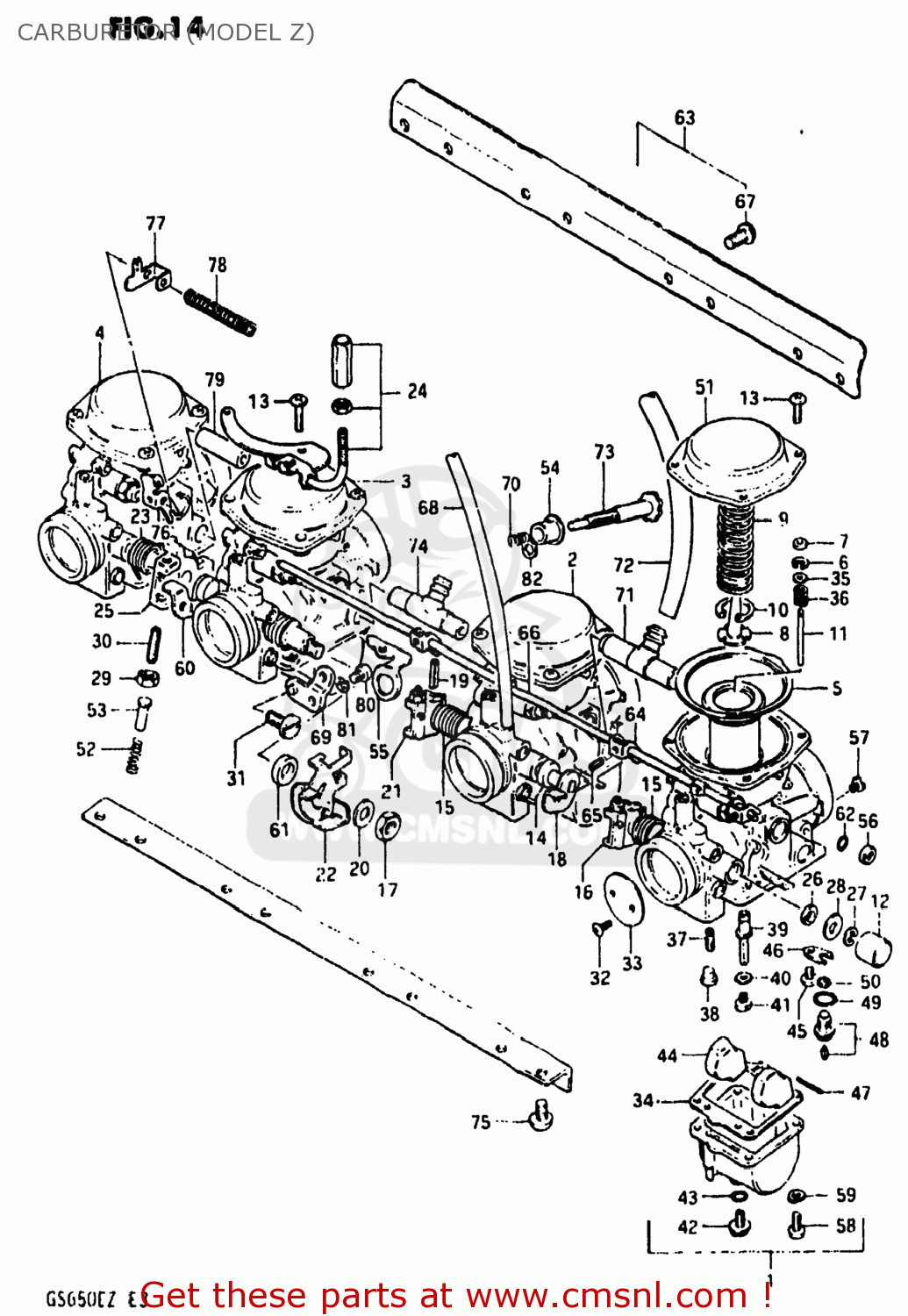

Carburetor (model z) diagram GS650E 1982 (Z) USA (E03)
CARBURETOR (MODEL Z) GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1320134260
ref: 1
CARBURETOR ASSEMBLY
€ 129.50
2
1320234260
ref: 2
CARBURETOR ASSEMBLY
€ 138.00
3
1320334260
ref: 3
CARBURETOR ASSEMBLY
€ 148.00
4
1320434260
ref: 4
CARBURETOR ASSEMBLY
€ 142.00
5
1350045110
ref: 5
DIAPHRAGM
€ 170.50
6
1339431210
ref: 6
CLIP,NEEDLE
€ 3.50
7
1338744030
ref: 7
RING
€ 5.00
8
1338944030
ref: 8
HOLDER,GUIDE
€ 10.50
9
1350344080
ref: 9
SPRING
€ 11.50
10
1358144030
ref: 10
E RING
€ 6.50
11
1338334200
ref: 11
NEEDLE JET
€ 0.00
12
1357847070
ref: 12
CAP
€ 5.50
13
0211205168
ref: 13
02112-05167
SCREW
€ 2.50
14
1355747070
ref: 14
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
15
1357347070
ref: 15
SPRING,THROTTLE SHAFT
€ 6.00
16
1355047070
ref: 16
SHAFT,THROTTLE
€ 44.50
17
0831022088
ref: 17
08310-00087
NUT 8MM
€ 2.00
18
1355047080
ref: 18
SHAFT,THROTTLE
€ 42.50
19
1356347070
ref: 19
PIN,THROTTLE SHAFT
€ 0.00
20
1360647070
ref: 20
WASHER
€ 3.00
21
1355347070
ref: 21
LEVER,THROTTLE SHAFT
€ 0.00
22
1355547070
ref: 22
LEVER ASSEMBLY,THROTTLE
€ 0.00
23
1357347080
ref: 23
SPRING,THROTTLE SHAFT
€ 0.00
24
1362147180
ref: 24
BRACKET,THROTTLE CABLE
€ 10.00
25
1355047090
ref: 25
SHAFT,THROTTLE
€ 0.00
26
1355631210
ref: 26
13651-51010
SEAL
€ 4.00
27
1361744080
ref: 27
E RING
€ 3.50
28
1355747070
ref: 28
GASKET,THROTTLE SHAFT (NAS)
€ 4.00
29
1360747070
ref: 29
NUT
€ 4.00
30
1360547080
ref: 30
SCREW
€ 7.00
31
1360545410
ref: 31
13605-73000
SCREW
€ 8.00
32
1360444080
ref: 32
SCREW
€ 3.50
33
1355134220
ref: 33
VALVE,THROTTLE
€ 21.00
34
1325144080
ref: 34
13251-44080-H17
GASKET,FLOAT CHAMBER (NAS)
€ 9.50
35
1338244030
ref: 35
WASHER
€ 3.50
36
1338844030
ref: 36
SPRING
€ 6.00
37
0949242007
ref: 37
JET,PILOT(42.5)
€ 8.50
38
1335744080
ref: 38
PLUG,NEEDLE JET
€ 4.50
39
0949400319
ref: 39
JET,NEEDLE
€ 18.50
40
1333244080
ref: 40
13382-03110
WASHER,NEEDLE NOZZLE
€ 2.50
41
0949197003
ref: 41
JET,MAIN(97.5)
€ 8.50
42
1324744080
ref: 42
PLUG,DRAIN
€ 9.50
43
1324644080
ref: 43
GASKET (NAS)
€ 3.50
44
1325044080
ref: 44
FLOAT
€ 31.00
45
0211204068
ref: 45
02112-0406B
SCREW 4X6
€ 2.00
46
1337311400
ref: 46
PLATE,NEEDLE VALVE FITING
€ 7.00
47
1325492311
ref: 47
PIN,FLOAT
€ 2.00
48
1337011400
ref: 48
13370-44500
VALVE ASSEMBLY,NEEDLE
€ 40.50
49
1337444080
ref: 49
13374-35C00
O-RING,NEEDLE VALVE
€ 6.00
50
1337665010
ref: 50
13376-19F00
FILTER
€ 6.50
51
1350245110
ref: 51
COVER,DIAPHRAGM
€ 42.00
52
1326844010
ref: 52
SPRING,THROTTLE SCREW
€ 3.00
53
1357347070
ref: 53
SPRING,THROTTLE SHAFT
€ 6.00
54
1327631210
ref: 54
BUSH
€ 4.00
55
1362744090
ref: 55
BRACKET,THROTTLE ADJUST
€ 0.00
56
1368231210
ref: 56
CAP,STARTER VALVE
€ 5.00
57
0949335001
ref: 57
JET,AIR (175)
€ 0.00
58
0211205168
ref: 58
02112-05167
SCREW
€ 2.50
59
0832121058
ref: 59
08321-0105A
LOCK WASHER
€ 2.00
60
1355047100
ref: 60
SHAFT,THROTTLE
€ 0.00
61
1358947070
ref: 61
WASHER
€ 3.00
62
1327847090
ref: 62
O RING
€ 2.00
63
1321047180
ref: 63
CARBURETOR ASSEMBLY
€ 0.00
64
1342244080
ref: 64
LEVER
€ 10.00
65
1360547070
ref: 65
SCREW
€ 5.50
66
1341047070
ref: 66
SHAFT,STARTER
€ 29.00
67
0215205128
ref: 67
02142-05127
SCREW
€ 1.50
68
1368331610
ref: 68
09355-45855-600
HOSE
€ 14.00
69
1362747070
ref: 69
BRACKET,THROTTLE ADJUST
€ 4.00
70
1327193011
ref: 70
SPRING
€ 4.50
71
1368547070
ref: 71
NIPPLE
€ 25.00
72
1368347070
ref: 72
09352-60103-600
HOSE
€ 18.00
73
1326747070
ref: 73
SCREW
€ 21.00
74
1368547080
ref: 74
NIPPLE,CARBURETOR
€ 25.50
75
0211206128
ref: 75
02112-06127
SCREW 6X12
€ 2.00
76
1341349220
ref: 76
LEVER,CHOKE CABLE
€ 4.00
77
1342149220
ref: 77
PLATE,CHOKE CABLE
€ 3.00
78
1343749220
ref: 78
SPRING,CHOKE CABLE
€ 0.00
79
1368547090
ref: 79
NIPPLE
€ 16.50
80
0211205108
ref: 80
02112-05107
SCREW
€ 2.00
81
0832121058
ref: 81
08321-0105A
LOCK WASHER
€ 2.00
82
1343247090
ref: 82
WASHER
€ 2.50
