FUEL TANK (MODEL Z)

GS650E 1982 (Z) USA (E03)

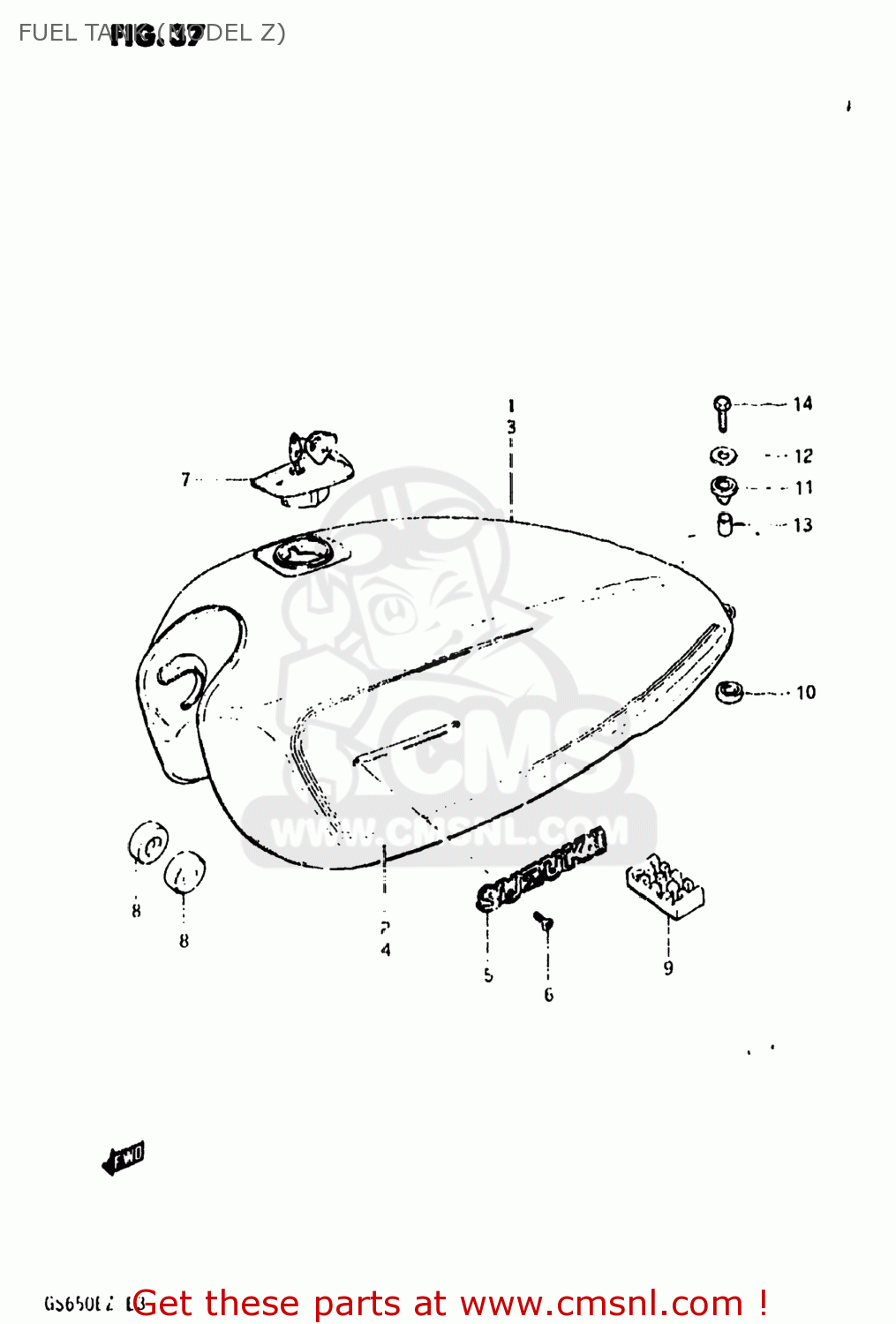

Fuel tank (model z) diagram GS650E 1982 (Z) USA (E03)

FUEL TANK (MODEL Z) GS650E 1982 (Z) USA (E03)

FUEL TANK (MODEL Z) GS650E 1982 (Z) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

441003453013Z
ref: 1
44110-47302-13L

TANK ASSEMBLY,FUEL

€ 230.50

2

681103453075F
ref: 2

TAPE SET,FUEL TANK

€ 33.50

3

441003453003F
ref: 3
44110-47302-13L

TANK ASSEMBLY,FUEL

€ 230.50

4

681103453081E
ref: 4

TAPE SET,FUEL TANK

€ 21.00

5

6811144600
ref: 5

EMBLEM

€ 0.00

6

0213203065
ref: 6
02122-0306B

SCREW 3X6

€ 2.00

7

4420049703
ref: 7
44200-49810

CAP SET,FUEL TANK

€ 121.00

8

0932910007
ref: 8

CUSHION

€ 3.00

9

4454134500
ref: 9

CUSHION,FUEL TANK CTR

€ 13.00

10

0932014013
ref: 10

CUSHION

€ 3.00

11

0932010020
ref: 11

CUSHION

€ 4.00

12

0916006004
ref: 12
09160-06134

WASHER (6.5X24X1.6)

€ 1.50

13

0918006072
ref: 13
09180-06271

SPACER

€ 2.00

14

0110706308
ref: 14
01500-06307

BOLT

€ 2.50
