HEADLAMP HOUSING - FRONT FENDER
GS650E 1982 (Z) USA (E03)

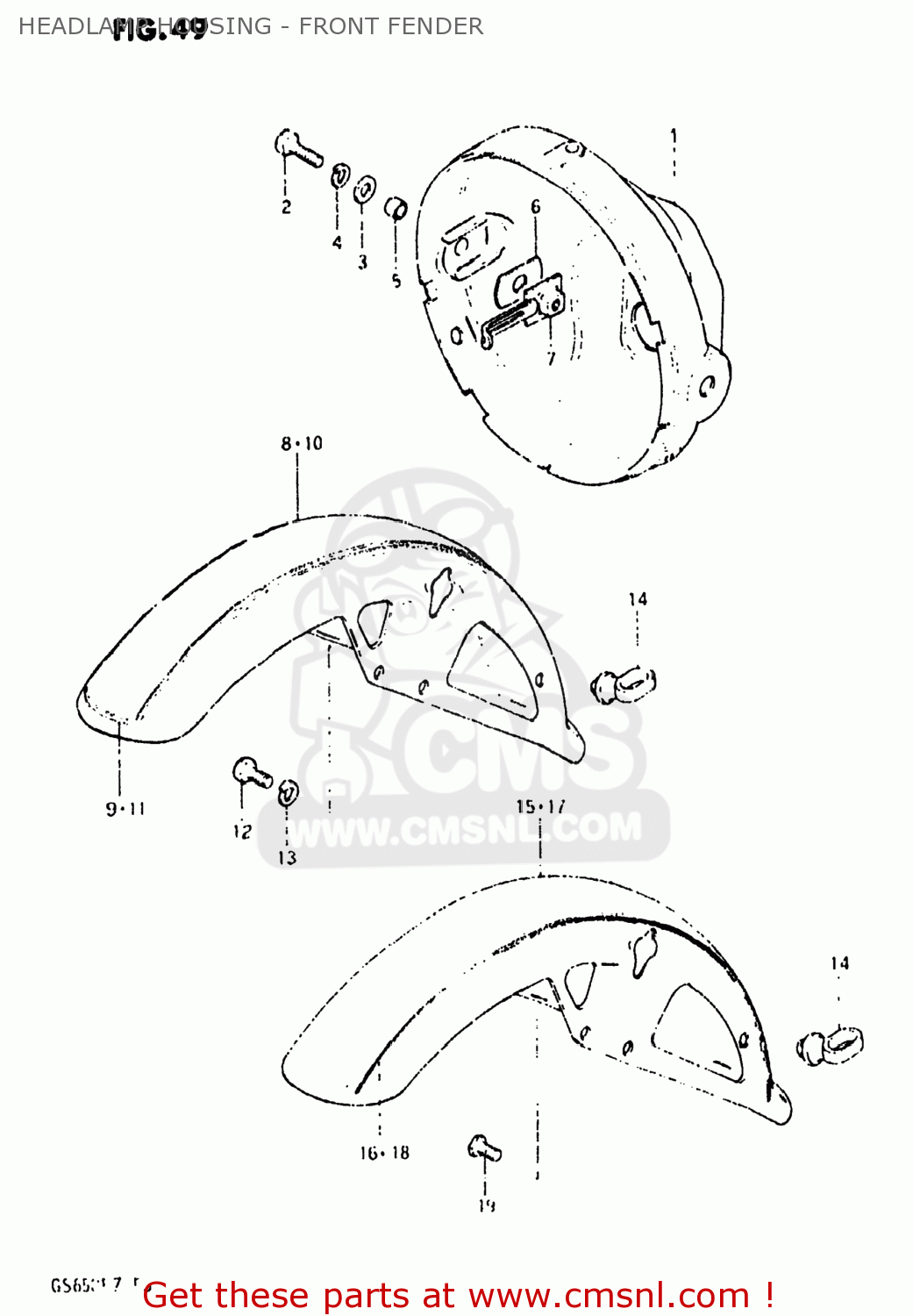

Headlamp housing - front fender diagram GS650E 1982 (Z) USA (E03)
HEADLAMP HOUSING - FRONT FENDER GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5181134500291
ref: 1
51811-34501-019
HOUSING,HEADLAMP
€ 60.50
2
0120408257
ref: 2
BOLT
€ 2.00
3
0832211086
ref: 3
08322-0108A
WASHER 8MM
€ 1.50
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
0918008030
ref: 5
09180-08187
SPACER (8.8X12X7)
€ 3.50
6
0932912002
ref: 6
CUSHION
€ 3.00
7
5182045000
ref: 7
51820-45001
PLATE,HEADLAMP HOUSING
€ 4.00
8
5310034500737
ref: 8
53110-34510-13L
FENDER,FRONT
€ 185.00
9
681504730079L
ref: 9
TAPE,FRONT FENDER
€ 19.00
10
531003450010S
ref: 10
53110-34510-13L
FENDER,FRONT
€ 185.00
11
681504730066N
ref: 11
TAPE,FRONT FENDER
€ 0.00
12
0110708168
ref: 12
01500-0816B
BOLT
€ 2.00
13
0832121088
ref: 13
08321-01087
LOCK WASHER
€ 2.00
14
5862121203
ref: 14
58621-21204
GUIDE,CABLE
€ 7.50
15
531003452013Z
ref: 15
53110-34510-13L
FENDER,FRONT
€ 185.00
16
681503451075F
ref: 16
68150-34500-75F
TAPE,FRONT FENDER
€ 16.00
17
531003452003F
ref: 17
53110-34510-13L
FENDER,FRONT
€ 185.00
18
681503451081E
ref: 18
68150-34500-81E
TAPE,FRONT FENDER
€ 18.00
19
0910008135
ref: 19
09100-08215
BOLT 8X16
€ 3.00
