GS650E 1982 (Z) USA (E03)

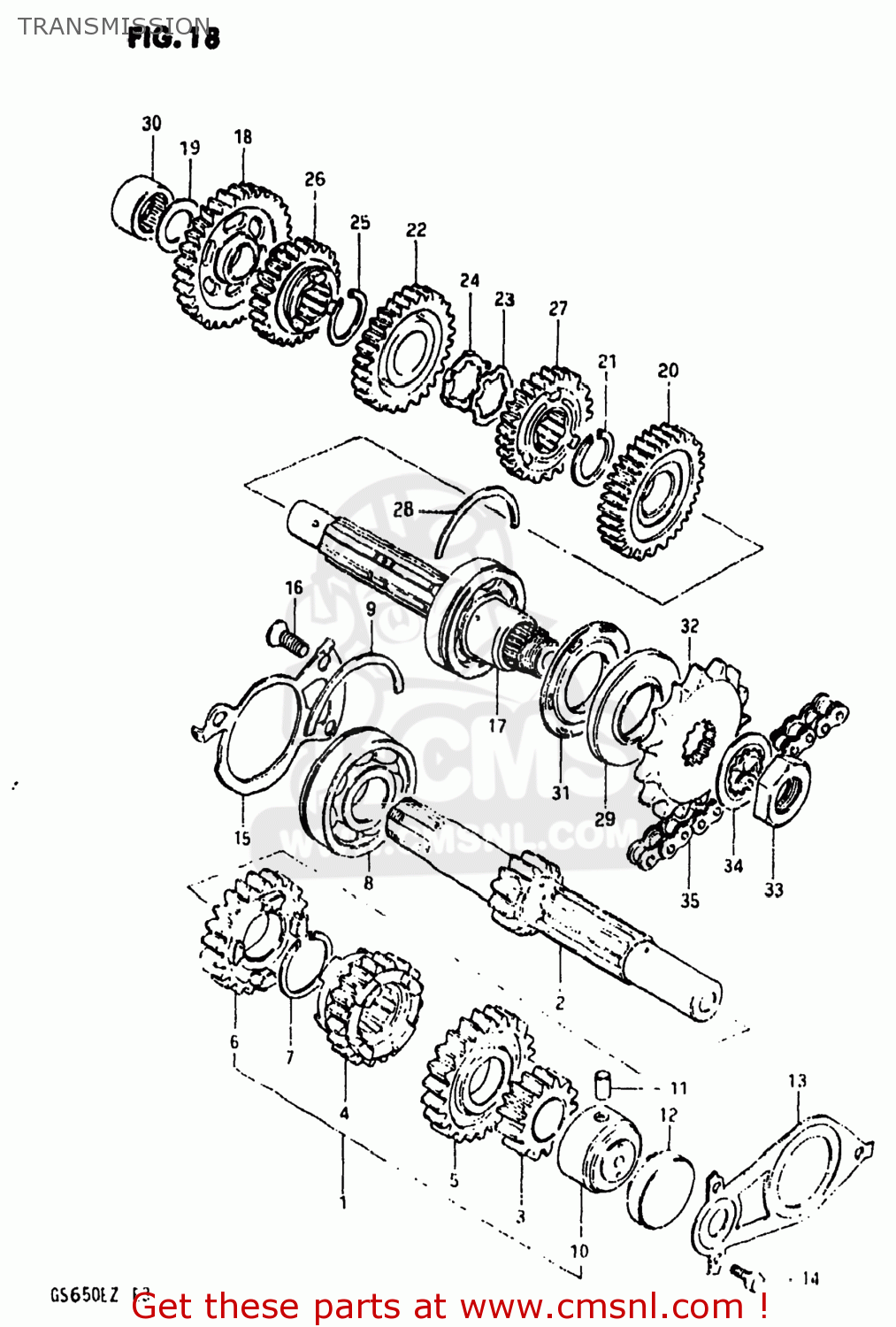

Transmission diagram GS650E 1982 (Z) USA (E03)
TRANSMISSION GS650E 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412034500
ref: 1
SHAFT,COUNTER
€ 169.00
2
2412134500
ref: 2
SHAFT,COUNTER
€ 110.50
3
2422134500
ref: 3
GEAR,SECOND DRIVE
€ 66.50
4
2423134500
ref: 4
GEAR,THIRD DRIVE
€ 106.50
5
2424034500
ref: 5
GEAR,FOURTH DRIVE
€ 87.50
6
2425034500
ref: 6
GEAR,FIFTH DRIVE
€ 87.50
7
0938025010
ref: 7
CIRCLIP
€ 3.00
8
0926225051
ref: 8
09262-25105
BEARING(25X62X17)
€ 59.50
9
0939062006
ref: 9
09390-62012
C-RING
€ 5.00
10
0926320029
ref: 10
09263-20030
BEARING
€ 38.00
11
0422107129
ref: 11
PIN
€ 1.50
12
0924134001
ref: 12
PLUG
€ 4.50
13
2311747000
ref: 13
23117-44000
PLATE,CLUTCH PUSH ROD
€ 17.00
14
0110706128
ref: 14
01500-06127
BOLT
€ 2.00
15
2474144000
ref: 15
PLATE,COUNTERSHAFT BEARING
€ 9.50
16
0212206168
ref: 16
02122-06167
SCREW
€ 2.00
17-1
2410034810
ref: 17-1
24100-34812
SHAFT,DRIVE
€ 130.00
17-2
2410034811
ref: 17-2
24100-34812
SHAFT,DRIVE
€ 130.00
18
2431034500
ref: 18
GEAR,FIRST DRIVEN
€ 65.00
19
0821120341
ref: 19
WASHER
€ 2.00
20
2432034500
ref: 20
GEAR,SECOND DRIVEN
€ 91.00
21
0938025010
ref: 21
CIRCLIP
€ 3.00
22
2433034500
ref: 22
GEAR,THIRD DRIVEN
€ 106.50
23
0916725013
ref: 23
WASHER,LOCK
€ 2.50
24
0916925001
ref: 24
WASHER
€ 2.00
25
0938025010
ref: 25
CIRCLIP
€ 3.00
26
2434134500
ref: 26
GEAR,FOURTH DRIVEN
€ 64.50
27
2435134500
ref: 27
GEAR,FIFTH DRIVEN
€ 91.00
28
0939062006
ref: 28
09390-62012
C-RING
€ 5.00
29
0928332015
ref: 29
SEAL,OIL(32X62X7)
€ 15.50
30
0926320028
ref: 30
09263-20027
ROLLER BEARING (20X34X1
€ 34.00
31
0928232002
ref: 31
SEAL,OIL(32X62X5.5)
€ 11.50
32
2751147000
ref: 32
27511-47B00
SPROCKET,ENGINE
€ 27.50
33-1
0914020009
ref: 33-1
NUT
€ 9.00
33-2
0914020011
ref: 33-2
NUT
€ 7.00
34
0916725011
ref: 34
09167-25019
WASHER
€ 2.50
35
2760034560
ref: 35
27600-17C20-106
CHAIN ASSEMBLY,DRIVE
€ 258.00
