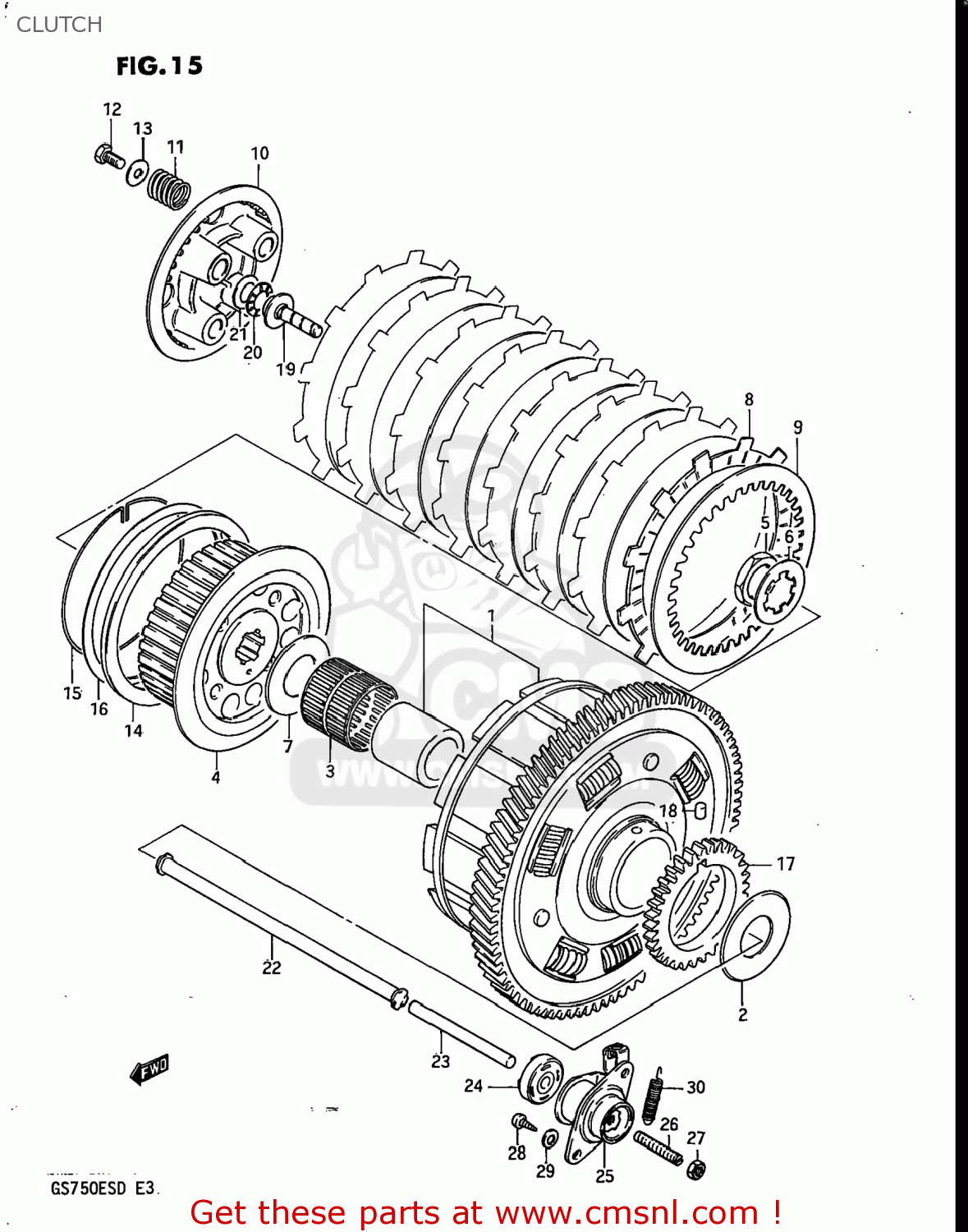

CLUTCH

ref

part #

description

quantity

1

2120031830
ref: 1
21200-31834

GEAR ASSEMBLY,PRIMARY DRIVE

€ 290.00

2

0916025037
ref: 2

WASHER(25X54X2.5)

€ 9.00

3

0926335013
ref: 3

BEARING(35X40X39.8)

€ 29.00

4

2141031302
ref: 4
21410-31304

HUB,CLUTCH SLEEVE

€ 99.00

5

0914024004
ref: 5
09140-24007

NUT

€ 4.50

6

0916725007
ref: 6

WASHER,LOCK

€ 7.50

7

0916025023
ref: 7
09160-25055

WASHER

€ 9.50

8

2144145100
ref: 8

PLATE,CLUTCH DRIVE (MCA)

€ 20.00

9

2145131000
ref: 9

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

10

2146231300
ref: 10

PLATE,CLUTCH PRESSURE

€ 35.00

11

0944020010
ref: 11
09440-20013

SPRING

€ 5.00

12

0110706168
ref: 12
01500-06167

BOLT, UPPER

€ 3.00

13

0916006020
ref: 13
09160-06066

WASHER

€ 2.00

14

2147145101
ref: 14

SEAT,WAVE WASHER

€ 16.00

15

2148145100
ref: 15

RING,STOPPER

€ 5.00

16

0916400003
ref: 16

WASHER

€ 9.00

17

1632131300
ref: 17

GEAR,OIL PUMP DRIVE

€ 44.00

18

0926106002
ref: 18

PIN(6X6)

€ 1.50

19

2312144100
ref: 19

PIECE,CLUTCH PUSH

€ 21.50

20

0926315003
ref: 20

BEARING(15X28X2)

€ 7.00

21

0916015015
ref: 21
09160-15045

WASHER

€ 4.00

22

2311031300
ref: 22
23110-32C50

ROD,CLUTCH PUSH

€ 25.00

23

2311131301
ref: 23

ROD,CLUTCH PUSH,L

€ 14.50

24

0928506013
ref: 24
09285-06018

OIL SEAL

€ 12.00

25

2320031300
ref: 25

SCREW ASSY,CLUTCH RELEASE

€ 104.50

26

0913406001
ref: 26
09134-06010

SCREW

€ 3.00

27

0831022068
ref: 27
08310-00067

NUT 6MM

€ 2.50

28

0311106168
ref: 28
03111-06163

SCREW

€ 1.50

29

0832221068
ref: 29
08322-01067

WASHER

€ 2.00

30

0944308001
ref: 30

SPRING

€ 3.00
