CRANKCASE
GS750ES 1983 (D) USA (E03)

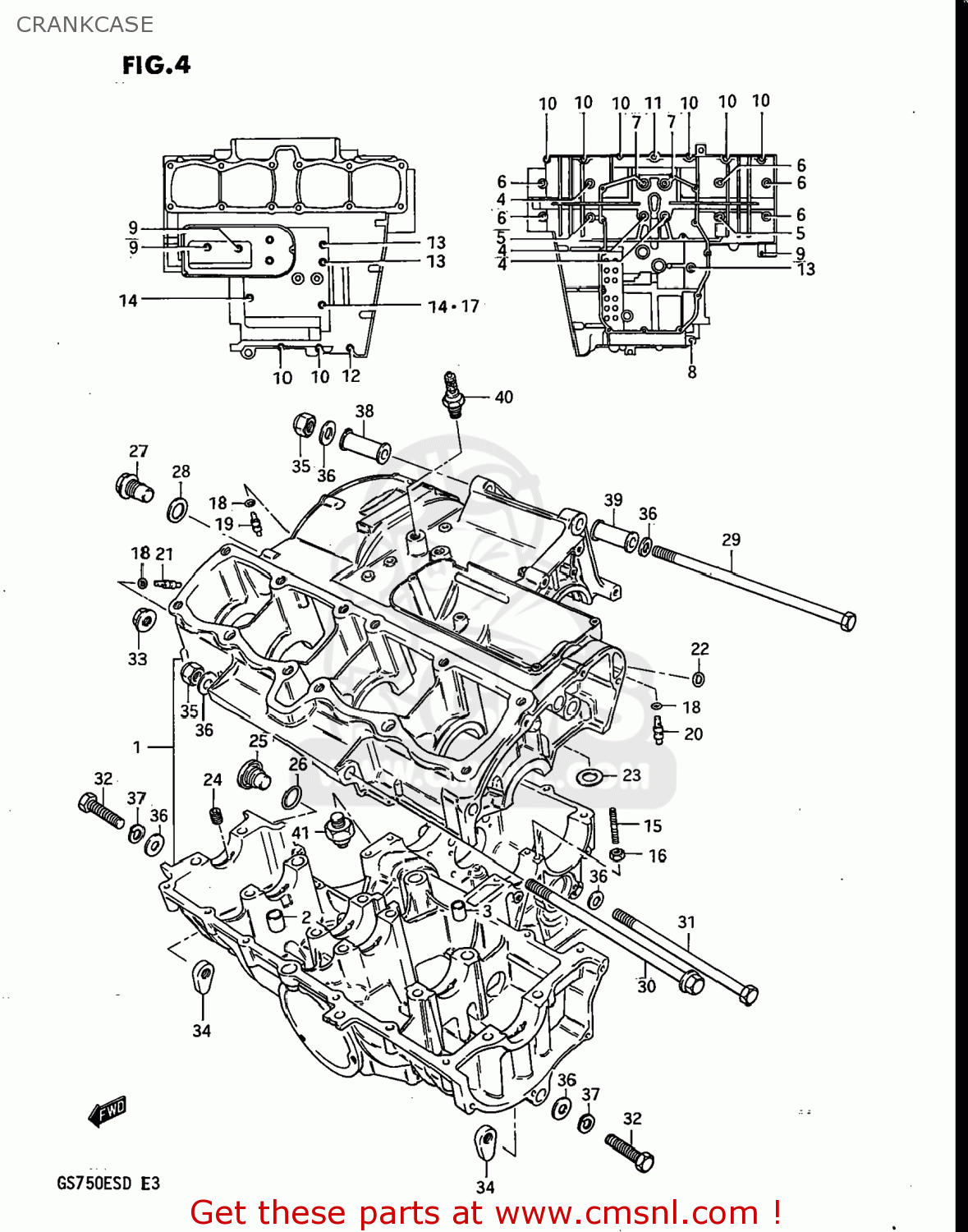

Crankcase diagram GS750ES 1983 (D) USA (E03)
CRANKCASE GS750ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
1130031870
ref: 1-1
11300-31874
CRANKCASE SET
€ 1,825.50
1-2
1130031871
ref: 1-2
11300-31874
CRANKCASE SET
€ 1,825.50
2
0920613004
ref: 2
PIN(10.4X13X22)
€ 3.00
3
0920611005
ref: 3
09206-11017
PIN (11X20)(SUS)
€ 6.50
4
0910308026
ref: 4
09103-08109
BOLT
€ 3.50
5
0910308038
ref: 5
BOLT(8X135)
€ 4.00
6
0910308080
ref: 6
09103-08139
BOLT
€ 5.50
7
0910608015
ref: 7
07130-0860B
BOLT
€ 4.50
8
0151708605
ref: 8
01550-0860A
BOLT 8X60
€ 3.50
9
0151706355
ref: 9
01550-0635A
BOLT
€ 2.50
10
0151706405
ref: 10
01550-0640A
BOLT (6X40)
€ 2.00
11
0151706505
ref: 11
01550-0650A
BOLT 6X50
€ 2.00
12
0151706555
ref: 12
01550-0655B
BOLT 6X55
€ 2.00
13
0151706855
ref: 13
01550-0685B
BOLT
€ 2.50
14
0151706955
ref: 14
BOLT (5X95)
€ 3.00
15
0142106458
ref: 15
01421-0645A
STUD BOLT (6X45)
€ 2.50
16
0831616068
ref: 16
08319-31067
NUT
€ 2.50
17
0916806018
ref: 17
GASKET(6.2X13X1.2) (NAS)
€ 2.00
18
0928004004
ref: 18
O RING(D:1.2,ID:4)
€ 2.00
19
0949320014
ref: 19
JET,OIL GALLERY
€ 8.00
20
0949380005
ref: 20
JET(8)
€ 12.00
21
0949380007
ref: 21
JET,OIL
€ 14.00
22
0928013001
ref: 22
O RING(D:3.2,ID:12.9)
€ 4.00
23
0821110201
ref: 23
09181-10195
WASHER,THRUST
€ 2.00
24
0949350005
ref: 24
JET,AIR
€ 0.00
25
0924816003
ref: 25
09248-16007
PLUG
€ 16.50
26
0928017002
ref: 26
O RING(D:2.4,ID:16.8)
€ 3.50
27
0924814006
ref: 27
PLUG
€ 4.00
28
0916814004
ref: 28
GASKET(14X19.2X2) (NAS)
€ 2.50
29
0910010195
ref: 29
BOLT 10X255
€ 14.50
30
0910310075
ref: 30
09103-10109
BOLT
€ 12.00
31
0910010137
ref: 31
09100-10078
BOLT
€ 10.50
32
0110710355
ref: 32
01500-1035B
BOLT
€ 2.50
33
0831931105
ref: 33
08319-3110A
NUT 10MM
€ 3.00
34
0915910020
ref: 34
NUT
€ 7.50
35
0915910039
ref: 35
09159-10064
NUT
€ 8.50
36
0832211105
ref: 36
08322-0110A
WASHER
€ 2.50
37
0832121105
ref: 37
08321-0110A
LOCK WASHER
€ 3.00
38
1161011410
ref: 38
11610-44100
SPACER,ENGINE MOUNT
€ 9.50
39
1161044010
ref: 39
SPACER,ENGINE MOUNT(L:50)
€ 12.00
40
3487031300
ref: 40
34870-31301
GAUGE ASSEMBLY,OIL TEMPERATURE
€ 121.00
41
3782034200
ref: 41
37820-33D10
SWITCH ASSEMBLY
€ 29.00
