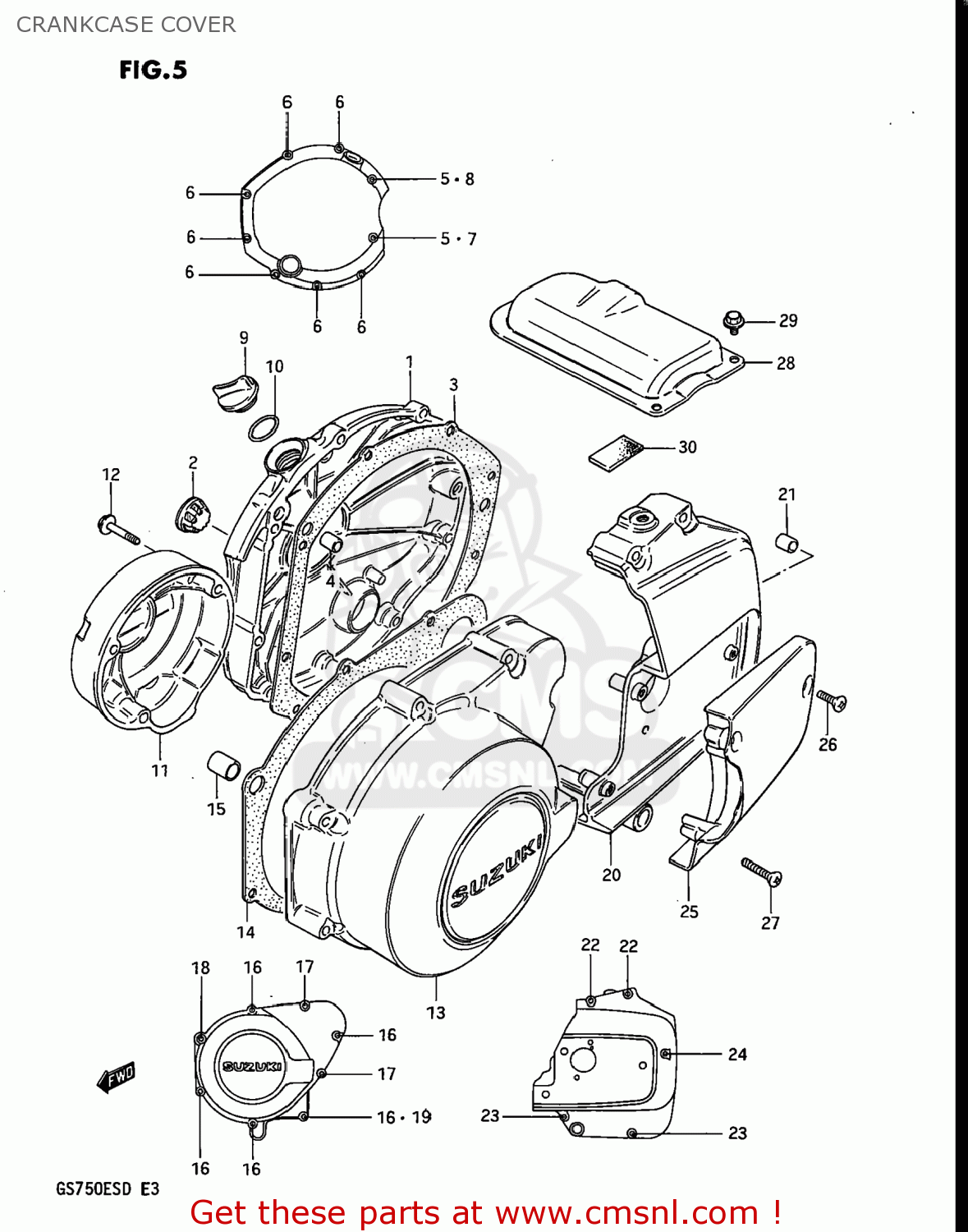

CRANKCASE COVER

ref

part #

description

quantity

1

1134031301
ref: 1

COVER,CLUTCH

€ 200.50

2

1197133210
ref: 2

LENS,OIL LEVEL CHECK

€ 13.50

3

1148231301
ref: 3
11482-31301-H17

GASKET,CLUTCH COVER (MCA)

€ 14.00

4

0920209004
ref: 4

PIN

€ 2.50

5

0916806015
ref: 5
09168-06023

WASHER

€ 2.00

6

0154706258
ref: 6
01547-06257

BOLT

€ 2.50

7

0154706308
ref: 7
01547-06307

BOLT (6X30)

€ 2.50

8

0154706358
ref: 8
01547-06357

BOLT (6X35)

€ 2.50

9

0925920007
ref: 9

PLUG(20X10)

€ 6.50

10

0928017003
ref: 10

O RING(D:3.1,ID:16.8)

€ 2.00

11

1138131300
ref: 11

COVER,CONTACT BRAKER

€ 115.00

12

0154705308
ref: 12
01547-05307

BOLT (5X30)

€ 2.00

13

1135131300
ref: 13

COVER,MAGNETO

€ 185.50

14

1148331301
ref: 14
11483-31301-H17

GASKET,MAGNETO COVER (MCA)

€ 19.50

15

0920611005
ref: 15
09206-11017

PIN (11X20)(SUS)

€ 6.50

16

0154706358
ref: 16
01547-06357

BOLT (6X35)

€ 2.50

17

0154706408
ref: 17
01547-06407

BOLT (6X40)

€ 2.50

18

0154706458
ref: 18
01547-06457

BOLT

€ 2.50

19

0916806015
ref: 19
09168-06023

WASHER

€ 2.00

20

1136031301
ref: 20

COVER,ENGINE SPROCKET

€ 115.50

21

0421109129
ref: 21

PIN

€ 2.00

22

0154706408
ref: 22
01547-06407

BOLT (6X40)

€ 2.50

23

0154706508
ref: 23
01547-06507

BOLT (6X50)

€ 2.50

24

0154706708
ref: 24
01547-06707

BOLT (6X70)

€ 2.50

25

1138031301
ref: 25

CAP,CLUTCH RELEASE ADJUST

€ 62.50

26

0213205208
ref: 26
02122-0520A

SCREW

€ 2.00

27

0213205308
ref: 27
02132-05307

SCREW

€ 1.50

28

1138231300
ref: 28

COVER,STARTER MOTOR

€ 21.00

29

0154705085
ref: 29
01547-0508B

BOLT (5X8)

€ 2.50

30

1136234200
ref: 30

DAMPER,STARTER MOTOR CLUTCH

€ 5.50

all assemblies
