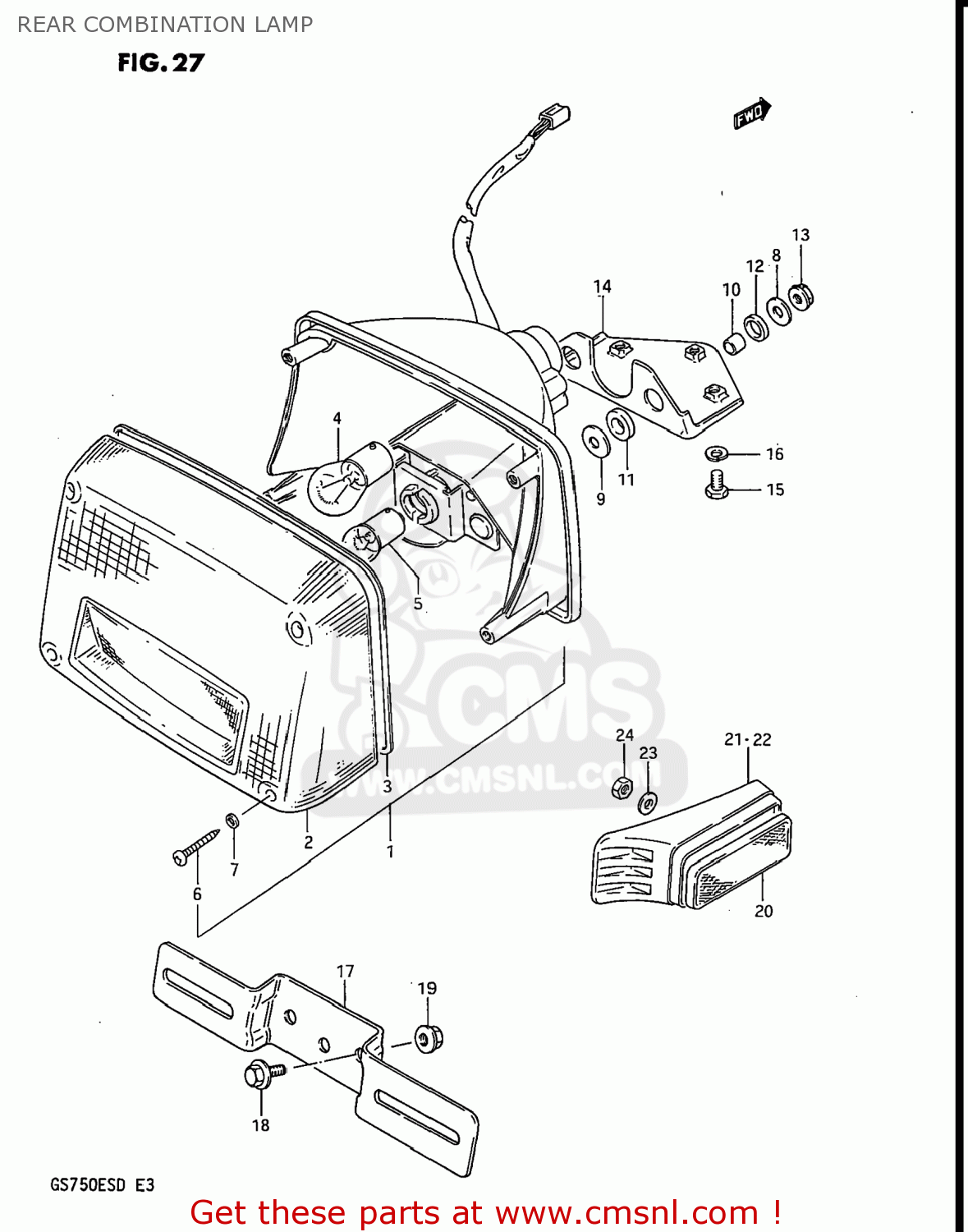

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3571031330
ref: 1
35710-49330

LAMP ASSEMBLY,REAR COMBINATION

€ 209.50

2

3571249031
ref: 2

LENS

€ 43.50

3

3571349030
ref: 3

GASKET (NAS)

€ 12.50

4

0947112035
ref: 4

BULB(12V23W)

€ 5.50

5

0947112037
ref: 5
09471-12141

BULB

€ 7.00

6

3562749030
ref: 6
03511-0416A

SCREW,REAR COMBINATION LAMP

€ 1.50

7

3562743010
ref: 7

GASKET (NAS)

€ 2.00

8

0916006007
ref: 8
09160-06084

WASHER

€ 2.00

9

0916006012
ref: 9
09160-06054

WASHER(6,5X22X1.6)

€ 2.00

10

0918006038
ref: 10

SPACER(6.1X9X7.5)

€ 2.00

11

0932009003
ref: 11

CUSHION

€ 2.00

12

0932009004
ref: 12

CUSHION

€ 2.50

13

0831626068
ref: 13
08316-2006A

NUT 6MM

€ 2.00

14

3572631300
ref: 14
35726-31301

BRACKET,REAR COMBINATION LAMP

€ 8.00

15

0110706128
ref: 15
01500-06127

BOLT

€ 2.00

16

0832121068
ref: 16
08321-01067

LOCK WASHER

€ 2.50

17

3592731330
ref: 17

PLATE,REAR LICENSE

€ 6.50

18

0151706168
ref: 18
01550-06167

BOLT

€ 1.50

19

0831626068
ref: 19
08316-2006A

NUT 6MM

€ 2.00

20

3597043430
ref: 20
35970-02130

REFLECTOR,REFLEX

€ 19.50

21

3597731330
ref: 21

SPACER,REAR REFLECTOR,RIGHT

€ 3.50

22

3597831330
ref: 22
35978-06A30

SPACER

€ 3.50

23

0916005013
ref: 23

WASHER(5.2X16X1)

€ 1.50

24

0831011058
ref: 24
08310-00057

NUT

€ 2.50
