STARTING MOTOR
GS750ES 1983 (D) USA (E03)

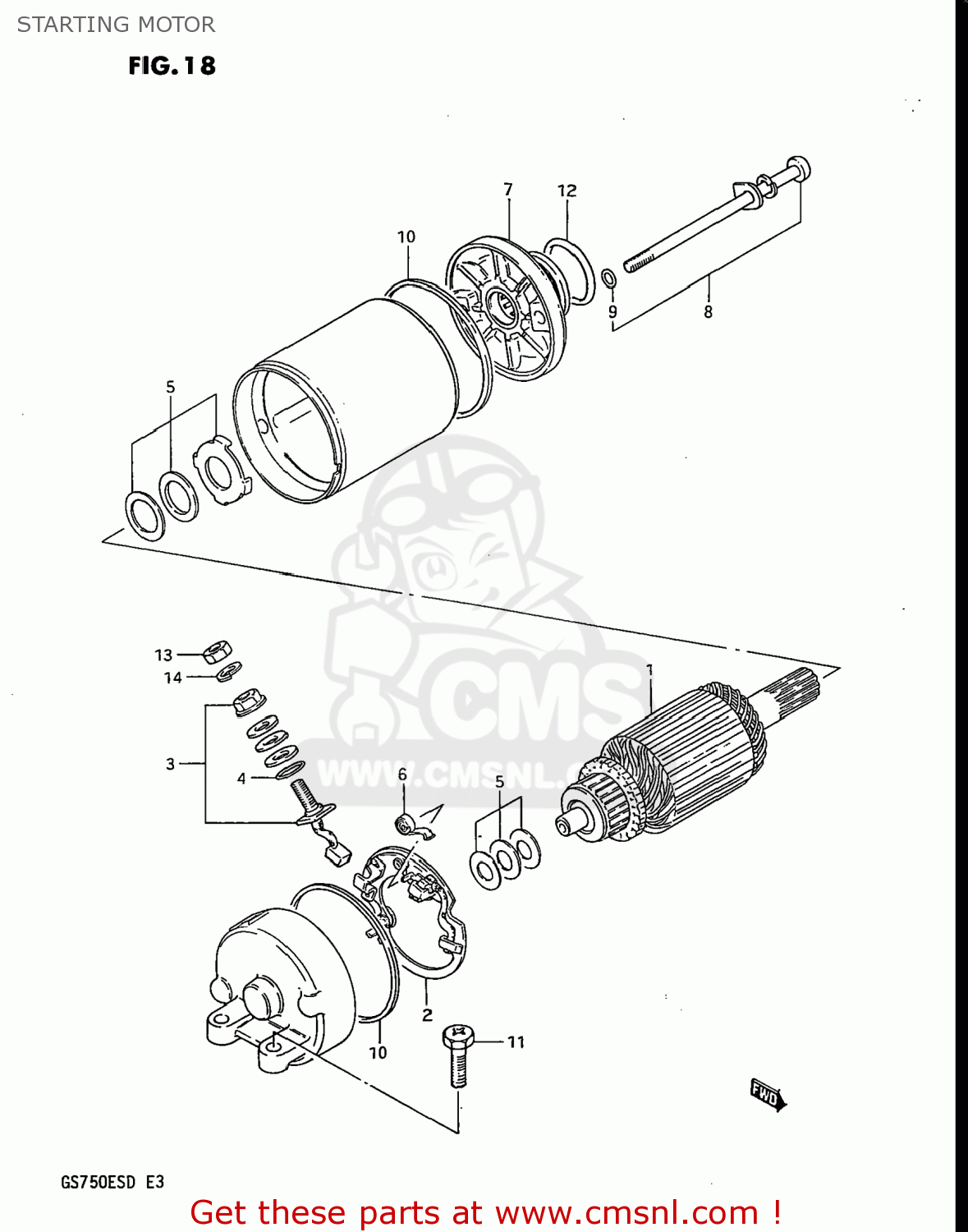

Starting motor diagram GS750ES 1983 (D) USA (E03)
STARTING MOTOR GS750ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
3110031300
ref:
MOTOR ASSEMBLY,STARTING
€ 590.00
1
3131131300
ref: 1
ARMATURE
€ 138.50
2
3113231300
ref: 2
HOLDER SET,BRUSH(-)
€ 55.50
3
3113031300
ref: 3
TERMINAL SET,BRUSH,PLUS
€ 36.00
4
3114349040
ref: 4
O RING
€ 3.00
5
3117031300
ref: 5
SHIM SET,STARTING MOTOR
€ 10.50
6
3113531300
ref: 6
SPRING,BRUSH
€ 4.00
7
3115031300
ref: 7
BRACKET SET,STARTING MOTOR
€ 86.50
8
3128031300
ref: 8
BOLT SET,STARTING MOTOR
€ 0.00
9
3114349040
ref: 9
O RING
€ 3.00
10
3126431300
ref: 10
31264-32E00
O RING
€ 7.50
11
0912806024
ref: 11
09103-06212
SCREW (6X25)
€ 2.50
12
0928024003
ref: 12
O RING(D:3,ID:24.5)
€ 2.00
13
0831022068
ref: 13
08310-00067
NUT 6MM
€ 2.50
14
0832121068
ref: 14
08321-01067
LOCK WASHER
€ 2.50
