SEAT TAIL COVER (GS750ED)

GS750ES 1983 (D) USA (E03)

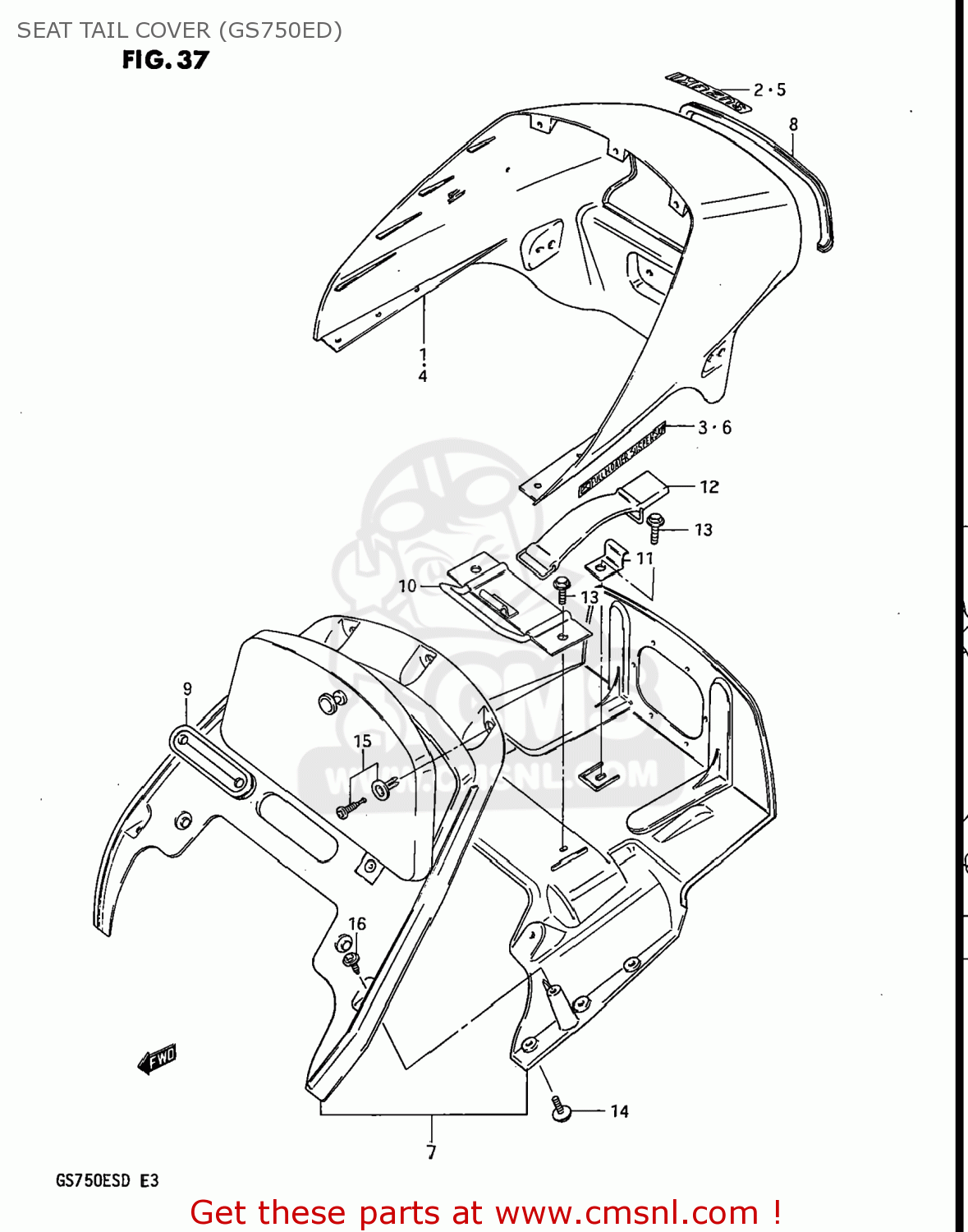

Seat tail cover (gs750ed) diagram GS750ES 1983 (D) USA (E03)

prices are in EUR

ref

part #

description

quantity

455103132012D
ref: 1
45511-31320

COVER COMP,SEAT TAIL

€ 78.50

681663130007G
ref: 2
68166-31300-719

EMBLEM

€ 4.50

682350470087W
ref: 3

EMBLEM

€ 16.00

455103132005L
ref: 4
45511-31320

COVER COMP,SEAT TAIL

€ 78.50

6816631300742
ref: 5
68166-31300-13L

EMBLEM

€ 5.00

682350470091R
ref: 6

EMBLEM

€ 2.50

4551531300
ref: 7
45515-31301

FLAP,SEAT TAIL COVER

€ 35.50

4556231300
ref: 8

MOLDING,SEAT TAIL COVER

€ 7.00

4552231300
ref: 9

GROMMET,SEAT TAIL COVER

€ 13.00

4522531300
ref: 10

PLATE,CHAIN LOCK HOLDER

€ 3.00

4522031300
ref: 11

PLATE,SEAT HOOK

€ 9.00

0946200040
ref: 12

BAND

€ 4.50

0154706165
ref: 13
01547-0616B

BOLT

€ 2.50

0214205085
ref: 14
02142-0508A

SCREW

€ 2.00

0940906307
ref: 15
09409-06322-5PK

CLIP

€ 3.00

0315105125
ref: 16
03141-0512A

SCREW

€ 1.50
