FRONT DAMPER (GS750ED)
GS750ES 1983 (D) USA (E03)

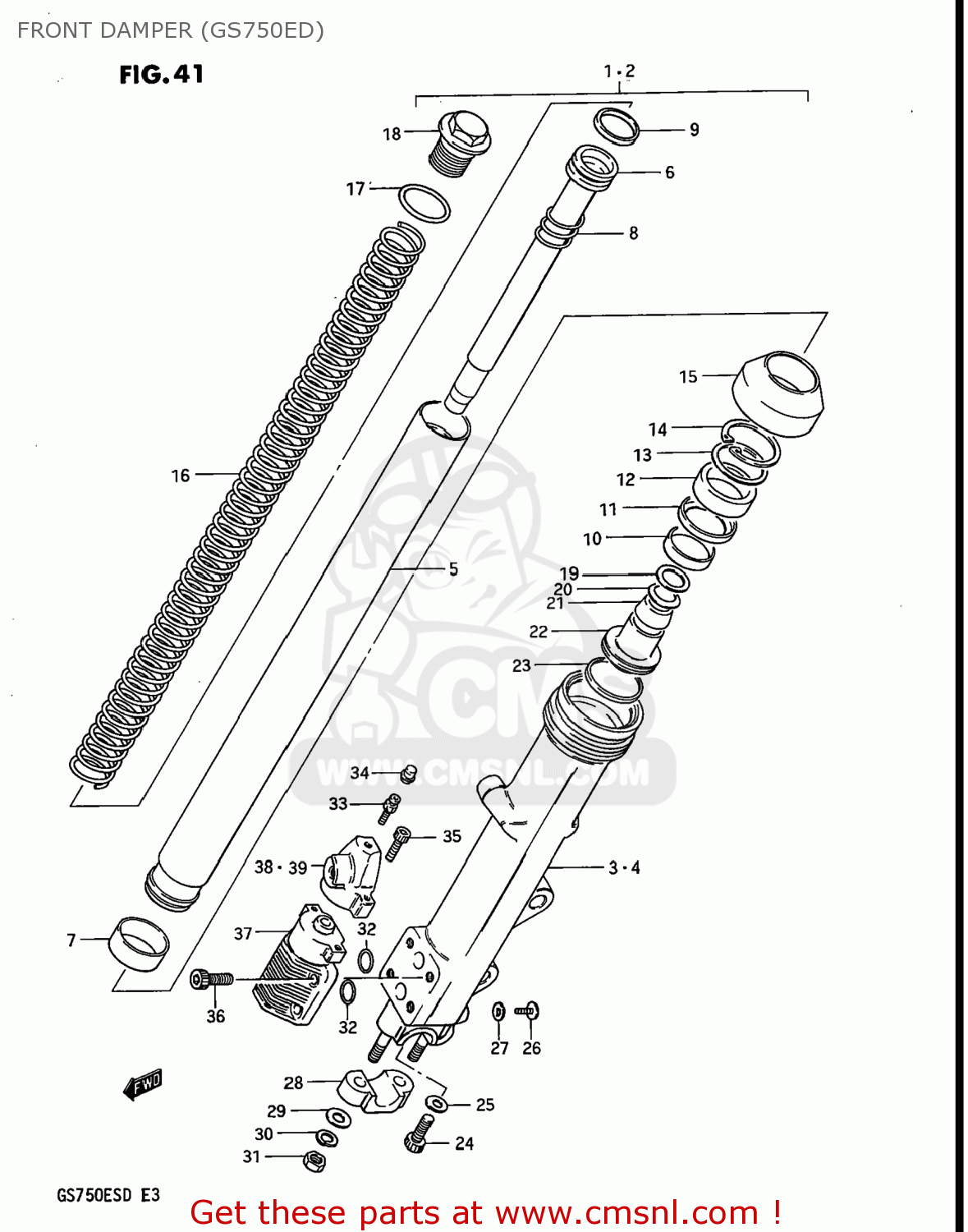

Front damper (gs750ed) diagram GS750ES 1983 (D) USA (E03)
FRONT DAMPER (GS750ED) GS750ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5110331300
ref: 1
51103-31370
DAMPER ASSEMBLY,RIGHT
€ 335.50
2
5110431300
ref: 2
51104-31370
DAMPER ASSEMBLY,LEFT
€ 716.50
3
511303130015T
ref: 3
TUBE,OUTER,RIGHT
€ 255.00
4
511403130015T
ref: 4
TUBE,OUTER,LEFT
€ 127.50
5
5111031300
ref: 5
51110-31340
TUBE,FORK,INNER
€ 284.00
6
5114631300
ref: 6
51146-31305
CYLINDER,FRONT FORK
€ 29.00
7
5112131300
ref: 7
PISTON
€ 18.50
8
5117734210
ref: 8
SPRING,FORK REBOUND
€ 7.00
9
5119634210
ref: 9
RING,PISTON
€ 6.50
10
5115231300
ref: 10
BUSHING,GUIDE
€ 22.50
11
5116834210
ref: 11
51168-38A00
SPACER,SEAL
€ 5.50
12
5115309310
ref: 12
51153-03B30
OIL SEAL,FRONT FORK
€ 15.00
13
5115834320
ref: 13
RING,BACKUP
€ 4.00
14
5155634320
ref: 14
CIRCLIP,INNTERNAL
€ 7.00
15
5157145200
ref: 15
51571-34320
BOOT
€ 20.50
16
5117131300
ref: 16
SPRING
€ 43.00
17
5111745200
ref: 17
O RING
€ 5.50
18
5135131300
ref: 18
CAP,FORK INNER TUBE
€ 20.00
19
5112634310
ref: 19
VALVE
€ 2.50
20
5112734310
ref: 20
SPRING,VALVE
€ 3.00
21
5112534310
ref: 21
VALVE,OIL LOCK PIEACE
€ 7.00
22
5119534370
ref: 22
PIECE,OIL LOCK
€ 24.00
23
5112334320
ref: 23
RING,PISTON
€ 14.50
24
5114748130
ref: 24
BOLT(8X27)
€ 3.50
25
5114831030
ref: 25
51148-36011
GASKET (NAS)
€ 4.00
26
0211204068
ref: 26
02112-0406B
SCREW 4X6
€ 2.00
27
5118333030
ref: 27
GASKET (NAS)
€ 6.50
28
5113244040291
ref: 28
51132-44040-15T
HOLDER,AXLE
€ 38.50
29
0832221085
ref: 29
08322-0108A
WASHER
€ 1.50
30
0832121085
ref: 30
08321-0108A
LOCK WASHER
€ 2.50
31
0831011085
ref: 31
08310-0008A
NUT
€ 1.50
32
5179911420
ref: 32
09280-15007
O RING,FR FORK
€ 2.00
33
5177811420
ref: 33
BREATHER
€ 8.50
34
5177911420
ref: 34
CAP
€ 4.50
35
5179734310
ref: 35
07130-05167
BOLT
€ 2.50
36
5179634310
ref: 36
07130-0616B
BOLT
€ 2.50
37
5179031300
ref: 37
VALVE SET,MODULATOR
€ 210.50
38
5178031300
ref: 38
PLUNGER SET,MODULATOR,RIGHT
€ 92.00
39
5177031300
ref: 39
PLUNGER SET,MODULATOR,LEFT
€ 76.50
