TRANSMISSION
GS750ES 1983 (D) USA (E03)

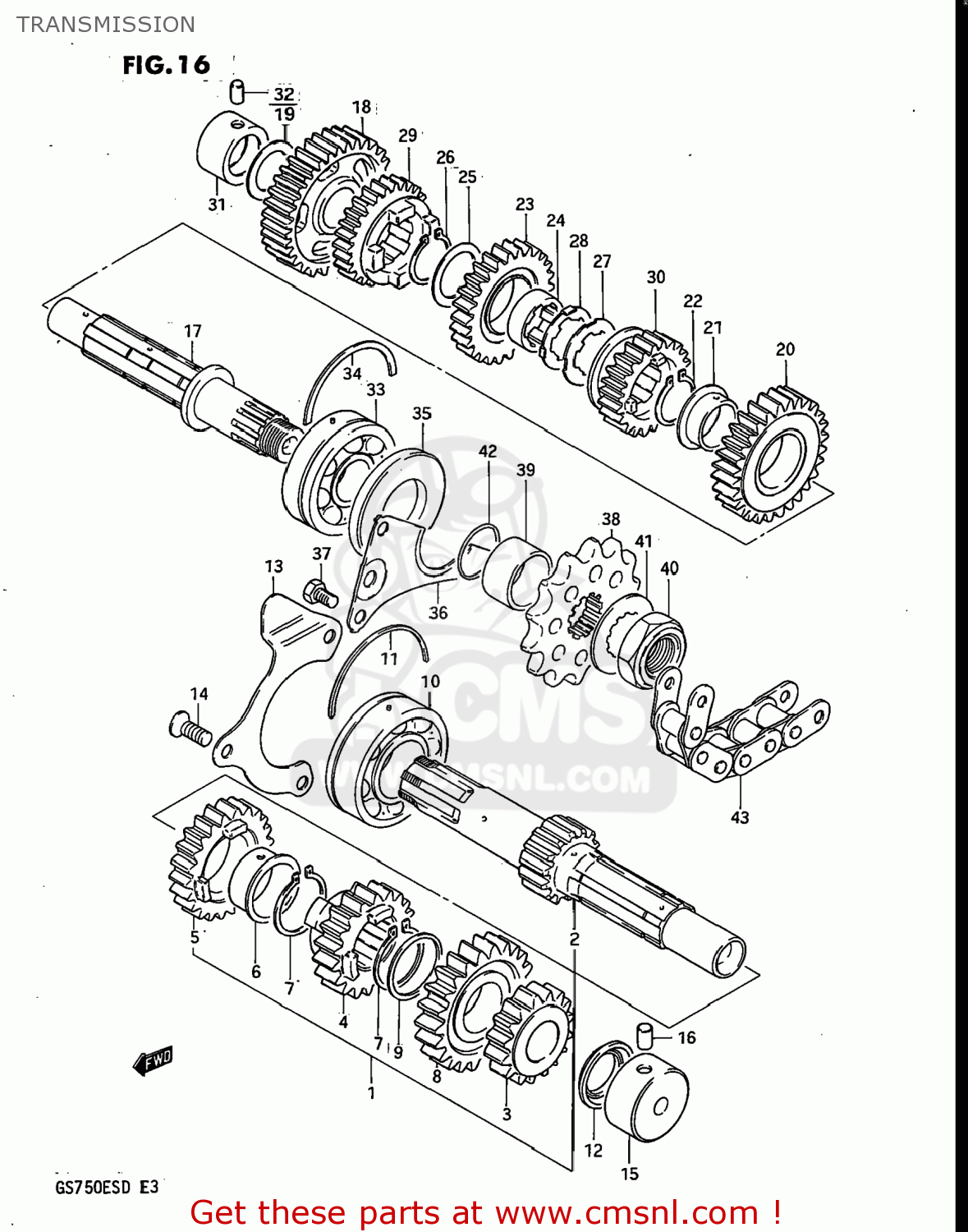

Transmission diagram GS750ES 1983 (D) USA (E03)
TRANSMISSION GS750ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
2412031300
ref: 1
24120-31301
SHAFT,COUNTER
€ 0.00
2
2412131300
ref: 2
24121-31302
SHAFT,COUNTER
€ 145.00
3
2422131300
ref: 3
GEAR,SECOND DRIVE
€ 104.50
4
2423131302
ref: 4
24231-31304
GEAR,THIRD DRIVE
€ 87.00
5
2424131300
ref: 5
GEAR,FOURTH DRIVE
€ 82.50
6
0930125001
ref: 6
24322-19F00
BUSHING
€ 12.50
7
0938025003
ref: 7
RING,SNAP
€ 3.00
8
2425131302
ref: 8
GEAR,FIFTH DRIVE (NT:23)
€ 95.50
9
0916725012
ref: 9
WASHER,LOCK
€ 3.50
10
0926225051
ref: 10
09262-25105
BEARING(25X62X17)
€ 59.50
11
0939062006
ref: 11
09390-62012
C-RING
€ 5.00
12
0928520006
ref: 12
SEAL,OIL(20X31.2X2.7)
€ 7.00
13
2474131300
ref: 13
PLATE,COUNTERSHAFT BEARING
€ 7.00
14
0212206168
ref: 14
02122-06167
SCREW
€ 2.00
15
0926320049
ref: 15
BEARING(20X34X17.5)
€ 58.00
16-1
0422107129
ref: 16-1
PIN
€ 1.50
16-2
0422107209
ref: 16-2
PIN
€ 1.50
17
2413131300
ref: 17
24131-31312
SHAFT,DRIVE
€ 58.00
18
2431031300
ref: 18
GEAR,1ST DRIVEN(NT:35)
€ 94.50
19
0821120341
ref: 19
WASHER
€ 2.00
20
2432131300
ref: 20
GEAR,2ND DRIVEN(NT:28)
€ 78.00
21
0930128001
ref: 21
BUSH(28X32X2)
€ 19.50
22
0833111289
ref: 22
08331-3128A
CIRCLIP
€ 2.50
23
2433131300
ref: 23
GEAR,THIRD DRIVEN
€ 85.00
24
2433249000
ref: 24
BUSH,3RD DRIVEN GEAR
€ 13.50
25
0916728001
ref: 25
WASHER,LOCK
€ 3.00
26
0833111289
ref: 26
08331-3128A
CIRCLIP
€ 2.50
27
0916728002
ref: 27
WASHER,LOCK
€ 3.00
28
0916928001
ref: 28
WASHER
€ 3.00
29
2434131301
ref: 29
24341-31303
GEAR,FOURTH DRIVEN
€ 99.50
30
2435131301
ref: 30
GEAR,5TH DRIVEN(NT:22)
€ 87.00
31
0926320040
ref: 31
BEARING(20X34X20)
€ 42.50
32-1
0422107129
ref: 32-1
PIN
€ 1.50
32-2
0422107209
ref: 32-2
PIN
€ 1.50
33
0926225051
ref: 33
09262-25105
BEARING(25X62X17)
€ 59.50
34
0939062006
ref: 34
09390-62012
C-RING
€ 5.00
35
0928333002
ref: 35
SEAL,OIL(33X62X7)
€ 14.00
36
2475131300
ref: 36
PLATE,DRIVESHAFT OIL
€ 4.50
37
0110706108
ref: 37
01500-06107
BOLT
€ 2.00
38
2751143400
ref: 38
27510-21E00
SPROCKET,ENGINE
€ 45.00
39
0918025066
ref: 39
SPACER (25X33X20.1)
€ 7.50
40
0915920001
ref: 40
09159-20004
NUT
€ 12.00
41
0916725014
ref: 41
09167-25019
WASHER
€ 2.50
42
0928025001
ref: 42
O RING(D:1,ID:24.5)
€ 2.50
43
2760031310
ref: 43
27600-17E10-112
CHAIN ASSEMBLY,DRIVE
€ 197.00
