CYLINDER
GS750ES 1983 (D) USA (E03)

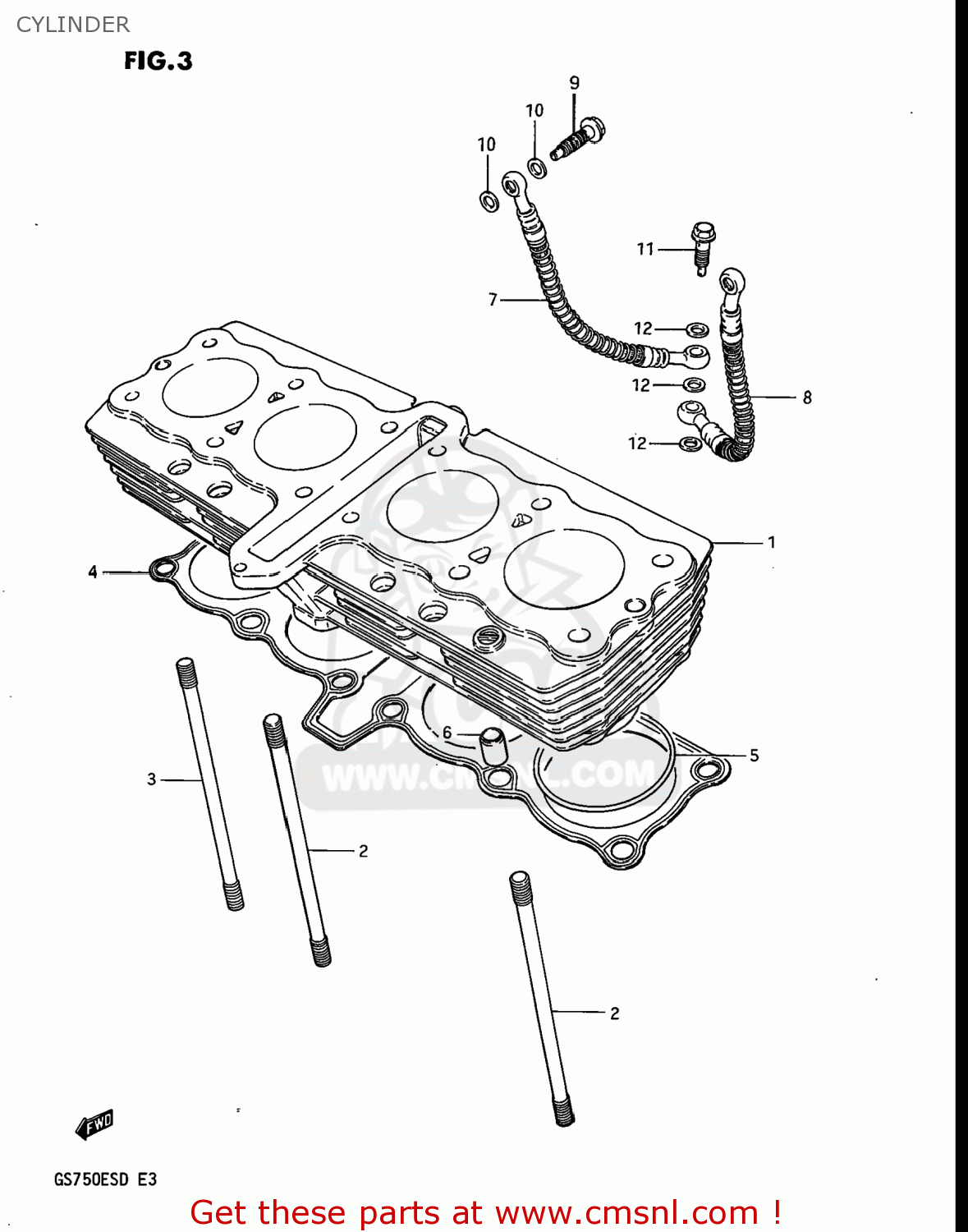

Cylinder diagram GS750ES 1983 (D) USA (E03)
CYLINDER GS750ES 1983 (D) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1121031306
ref: 1
11210-31308
CYLINDER
€ 793.00
2
0910810057
ref: 2
09108-10069
STUD
€ 7.00
3
0910810047
ref: 3
STUD
€ 8.50
4
1124131990
ref: 4
11241-31305
GASKET,CYLINDER
€ 15.00
5
0928070001
ref: 5
O RING(D:2,ID:70)
€ 7.50
6
0920613006
ref: 6
09206-13017
PIN
€ 9.00
7
1128131304
ref: 7
11281-31305
HOSE,OIL
€ 73.00
8
1128231304
ref: 8
11282-31305
HOSE,OIL
€ 73.00
9
0936008008
ref: 9
09360-08011
BOLT UNION
€ 4.00
10
0916808008
ref: 10
09168-08016
GASKET 8.2X14X1 (NAS)
€ 1.00
11
1128531301
ref: 11
BOLT,OIL PIPE
€ 12.50
12
0916110005
ref: 12
09161-10009
WASHER
€ 2.00
