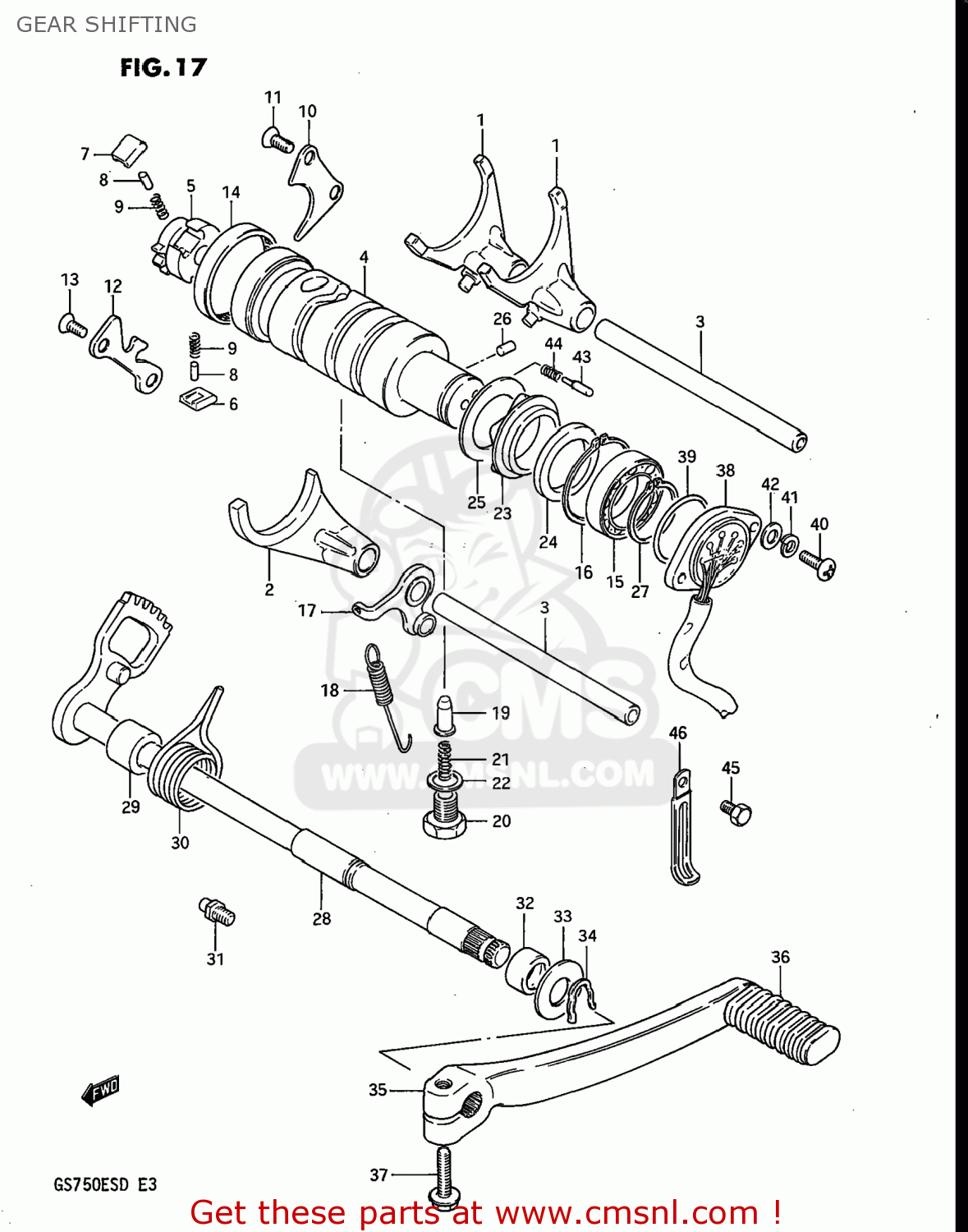

GEAR SHIFTING

ref

part #

description

quantity

1

2521131300
ref: 1

FORK,GEAR SHIFT NO.1

€ 50.00

2

2522131300
ref: 2

FORK,GEAR SHIFT NO.2

€ 57.00

3

2541131301
ref: 3
25411-18900

SHAFT,GEAR SHIFT FORK

€ 14.50

4

2531031300
ref: 4

CAM,GEAR SHIFT

€ 101.00

5

2532231300
ref: 5
25322-31310

RETAINER,GEAR SHIFT CAM

€ 14.50

6

2532311000
ref: 6
25323-34201

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532411000
ref: 7
25324-34201

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533131300
ref: 10
25331-31310

LIFTER,GEAR SHIFT PAWL

€ 7.00

11

0212206128
ref: 11
02122-06127

SCREW

€ 3.00

12

2534109300
ref: 12

GUIDE,GEAR SHIFT CAM

€ 6.00

13

0212206128
ref: 13
02122-06127

SCREW

€ 3.00

14

0926343001
ref: 14

BEARING(43X49X12)

€ 30.00

15

0811069050
ref: 15
08113-69050

BALL BEARING

€ 36.00

16

0833141428
ref: 16
08331-4142A

CIRCLIP,42MM

€ 1.50

17

2535031300
ref: 17

STOPPER,GEAR SHIFTING

€ 10.50

18

0944308026
ref: 18

SPRING

€ 14.50

19

2535131300
ref: 19
25351-30010

STOPPER,GEAR SHIFTING

€ 6.50

20

2535430000
ref: 20

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

21

0944006014
ref: 21

SPRING

€ 1.50

22

0916814004
ref: 22

GASKET(14X19.2X2) (NAS)

€ 2.50

23

2538138400
ref: 23

PLATE,STOPPER

€ 22.00

24

0821125321
ref: 24

WASHER

€ 3.00

25

0916730007
ref: 25

WASHER,LOCK

€ 2.50

26

0621104063
ref: 26
04221-04069

PIN 4X6

€ 2.00

27

0833131258
ref: 27
08331-3125A

CIRCLIP,25MM

€ 2.00

28

2551031300
ref: 28

SHAFT,GEAR SHIFT

€ 54.00

29

0918012068
ref: 29

SPACER(12X20X15.3)

€ 3.00

30

0944426017
ref: 30

SPRING

€ 5.00

31

2567101000
ref: 31
25671-01011

STOPPER,GEAR SHIFT CAM

€ 3.00

32

0928512002
ref: 32
09285-12006

OIL SEAL

€ 7.00

33

0916012020
ref: 33
09160-12089

WASHER (12.5X27X1.6)

€ 2.00

34

0938412001
ref: 34
08331-3112A

SPRING,RETAINER

€ 2.00

35

2560031300
ref: 35

LEVER ASSEMBLY,GEAR SHIFTING

€ 31.50

36

2565249300
ref: 36

RUBBER,PEDAL

€ 5.50

37

0151706258
ref: 37
01550-06257

BOLT

€ 2.50

38

3772031300
ref: 38
37720-31301

TERMINAL BASE,NEUTRAL

€ 51.50

39

0928036001
ref: 39

O RING(D:2.4,ID:36.5)

€ 4.50

40

0211205128
ref: 40
02112-05127

SCREW

€ 2.50

41

0832121058
ref: 41
08321-0105A

LOCK WASHER

€ 2.00

42

0832221058
ref: 42
08322-01057

WASHER

€ 2.50

43

0920905011
ref: 43

PIN(5X15.5)

€ 2.00

44

0944004010
ref: 44

SPRING

€ 1.50

45

0110706108
ref: 45
01500-06107

BOLT

€ 2.00

46

0940406415
ref: 46
09404-06433

CLAMP

€ 3.00
