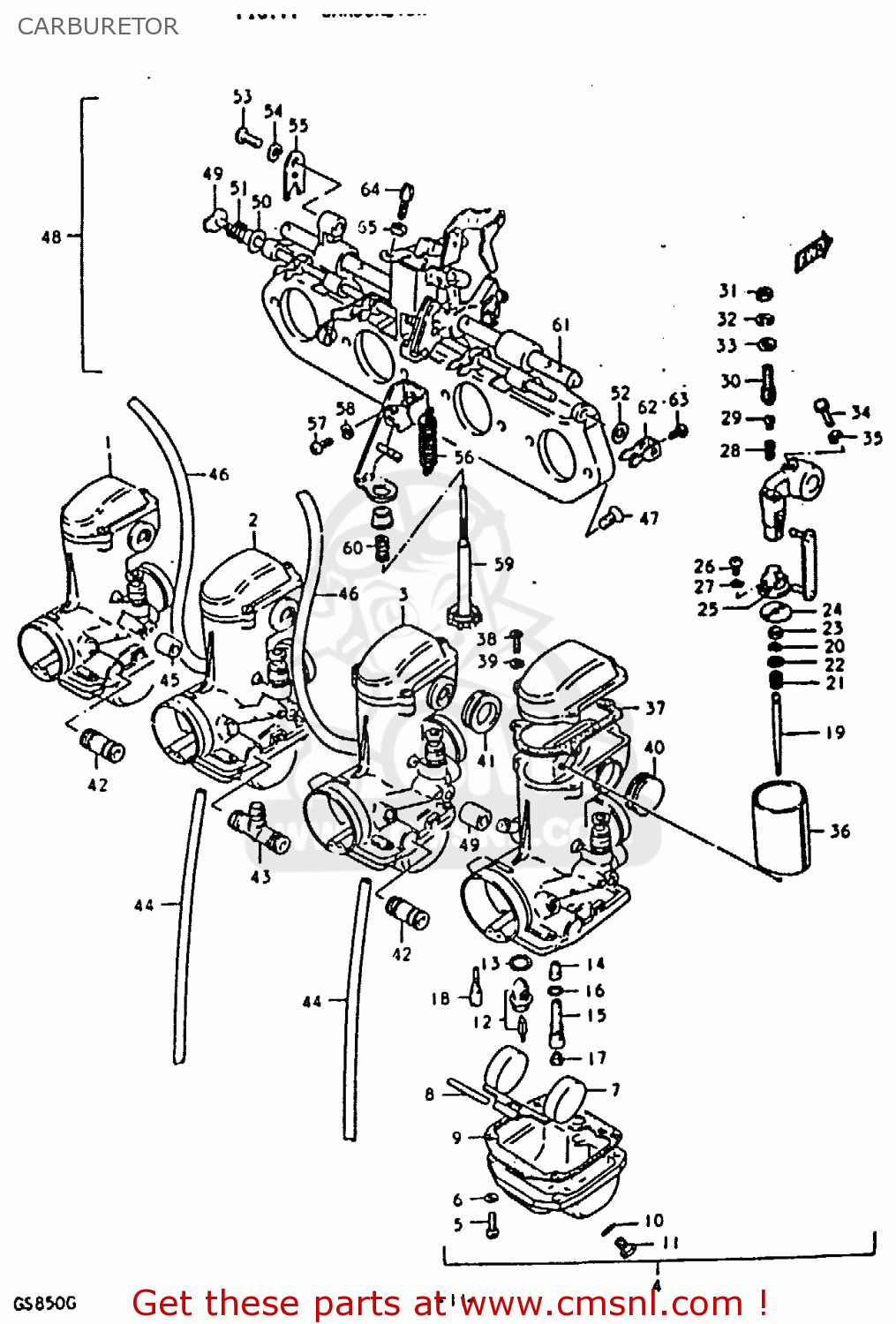

CARBURETOR

ref

part #

description

quantity

0

1320045060
ref: 0

CARBURETOR ASSY

€ 0.00

1

1320145060
ref: 1
LH

CARBURETOR ASSY, NO. 1

€ 328.00

2

1320245060
ref: 2
CENTER LH

CARBURETOR ASSY, NO. 2

€ 0.00

3

1320345060
ref: 3
CENTER RH

CARBURETOR ASSY, NO. 3

€ 0.00

4

1320445060
ref: 4
RH

CARBURETOR ASSY, NO. 4

€ 0.00

5

0211204168
ref: 5

SCREW

€ 1.00

6

0832121048
ref: 6

LOCK WASHER

€ 2.00

7

1325243010
ref: 7

FLOAT

€ 41.00

8

1325401010
ref: 8

PIN,FLOAT

€ 3.00

9

1325143011
ref: 9

GASKET,FLOAT CHAMBER (NAS)

€ 9.50

10

1324643010
ref: 10

O RING

€ 4.00

11

1324745010
ref: 11

SCREW

€ 7.50

12

1337045010
ref: 12

VALVE ASSEMBLY,NEEDLE

€ 51.50

13

1339258600
ref: 13

GASKET,VALVE SEAT (NAS)

€ 2.00

14

0949400198
ref: 14
0-6

JET,NEEDLE

€ 19.50

15

1338545010
ref: 15

PIPE,BLEEDER

€ 36.00

16

1324643010
ref: 16

O RING

€ 4.00

17

0949120004
ref: 17
#102.5

JET

€ 8.50

18

0949215004
ref: 18
#15

JET

€ 15.00

19

1338345030
ref: 19
5DL36-2

NEEDLE,JET

€ 19.50

20

1339410010
ref: 20

CLIP

€ 4.50

21

1338847010
ref: 21

SPRING

€ 7.00

22

1338247010
ref: 22

WASHER,JET NEEDLE

€ 3.00

23

1338747010
ref: 23

RING

€ 7.50

24

1358147010
ref: 24

PLATE,THROTTLE VALVE

€ 5.50

25

1339845010
ref: 25

CONNECTOR

€ 18.00

26

0211103148
ref: 26

SCREW

€ 1.50

27

0832121038
ref: 27

LOCK WASHER

€ 1.50

28

1354345010
ref: 28

SPRING

€ 2.50

29

1354443010
ref: 29

PIN,CARBURETOR

€ 2.50

30

1354845010
ref: 30

SCREW

€ 10.00

31

0831011058
ref: 31

NUT

€ 2.50

32

0832121058
ref: 32

LOCK WASHER

€ 2.00

33

0832221058
ref: 33

WASHER

€ 2.50

34

0110405168
ref: 34

BOLT

€ 1.50

35

0832121058
ref: 35

LOCK WASHER

€ 2.00

36

1355145030
ref: 36
CA:1.5

VALVE,THROTTLE

€ 39.00

37

1326643010
ref: 37

GASKET (NAS)

€ 7.00

38

0211204168
ref: 38

SCREW

€ 1.00

39

0832121048
ref: 39

LOCK WASHER

€ 2.00

40

1367843010
ref: 40

PIPE,DELIVERY

€ 4.50

41

1355645010
ref: 41

SEAL

€ 15.50

42

1368545030
ref: 42

NIPPLE

€ 24.50

43

1368545040
ref: 43

NIPPLE

€ 28.00

44

1368345070
ref: 44

HOSE

€ 10.00

45

1368333110
ref: 45
6*10*16

HOSE

€ 18.00

46

1368345050
ref: 46
5*8*450

HOSE 4.5X8X390

€ 14.00

47

0212206148
ref: 47

SCREW

€ 2.50

48

1321045050
ref: 48

CARBURETOR ASSEMBLY

€ 0.00

49

1341049020
ref: 49

SHAFT,STARTER

€ 0.00

50

1343249020
ref: 50

WASHER

€ 3.00

51

1343749020
ref: 51

SPRING

€ 1.50

52

1361545010
ref: 52

WASHER,STARTER SHAFT

€ 3.50

5-3

0211205168
ref: 5-3

SCREW

€ 2.50

54

0832121058
ref: 54

LOCK WASHER

€ 2.00

55

1355733110
ref: 55

GASKET

€ 3.50

56

1357345010
ref: 56

SPRING,THROTTLE RETURN

€ 23.00

57

0211205168
ref: 57

SCREW

€ 2.50

58

0832121058
ref: 58

LOCK WASHER

€ 2.00

59

1326745010
ref: 59

ADJUSTER

€ 10.00

60

1326833110
ref: 60

SPRING,THROTTLE SCREW

€ 4.00

61

1355043010
ref: 61

SHAFT ASSEMBLY

€ 44.50

62

1342245030
ref: 62

LEVER,STARTER

€ 6.00

63

1360531210
ref: 63

SCREW

€ 3.00

64

1357748110
ref: 64

ADJUSTER,CABLE

€ 8.00

65

1366116600
ref: 65

NUT

€ 5.00

66-1

0949197001
ref: 66-1
#97.5 OPT

JET

€ 8.50

66-2

0949120003
ref: 66-2
#100 OPT

JET

€ 10.50

66-3

0949121003
ref: 66-3
#105 OPT

JET

€ 9.50

66-4

0949121006
ref: 66-4
#107.5 OPT

JET

€ 8.50

66-5

0949122004
ref: 66-5
#110 OPT

JET, MAIN

€ 7.00

all assemblies
