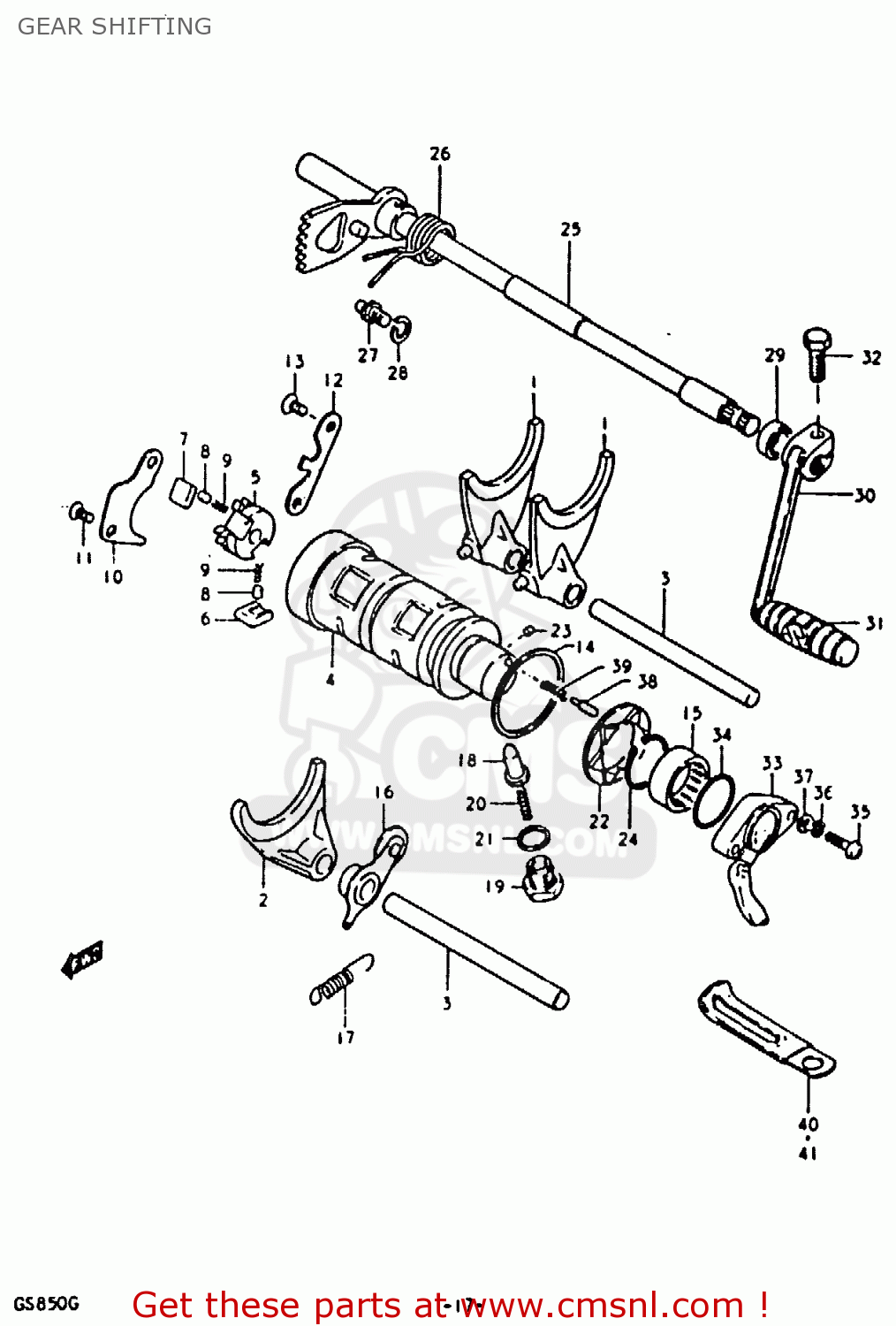

GEAR SHIFTING

ref

part #

description

quantity

1

2521134000
ref: 1
4TH & 5TH

FORK,GEAR SHIFT NO.1

€ 54.50

2

2523145100
ref: 2
3RD

FORK,GEAR SHIFT NO.3

€ 43.50

3

2541131000
ref: 3

SHAFT,GEAR SHIFT FORK

€ 14.50

4

2531045101
ref: 4

CAM,GEAR SHIFT

€ 209.00

5

2532211000
ref: 5

RETAINER,GEAR SHIFT CAM

€ 14.50

6

2532311000
ref: 6

PAWL,GEAR SHIFT NO.1

€ 6.00

7

2532411000
ref: 7

PAWL,GEAR SHIFT NO.2

€ 6.00

8

0926105003
ref: 8

PIN(5X8)

€ 1.50

9

0944004003
ref: 9

SPRING

€ 1.50

10

2533111001
ref: 10

LIFTER,GEAR SHIFT PAWL

€ 2.50

11

0212206128
ref: 11

SCREW

€ 3.00

12

2534118000
ref: 12

GUIDE,GEAR SHIFT CAM

€ 51.50

13

0212206128
ref: 13

SCREW

€ 3.00

14

0916040001
ref: 14
40*45*1

WASHER(40X45X1)

€ 2.50

15

0926325018
ref: 15

BEARING(25X32X12)

€ 17.50

16

2535045100
ref: 16

STOPPER,GEAR SHIFTING

€ 9.50

17

0944309006
ref: 17

SPRING

€ 2.50

18

2535130010
ref: 18

STOPPER,GEAR SHIFT CAM NO.2

€ 6.50

19

2535430000
ref: 19

HOLDER,GEAR SHIFT CAM STOP SPR

€ 6.50

20

0944006018
ref: 20

SPRING

€ 1.50

21

0916814004
ref: 21

GASKET(14X19.2X2) (NAS)

€ 2.50

22

2538145000
ref: 22

PLATE,GEAR SHIFT CAM STOPPER

€ 14.00

23

0621104063
ref: 23

PIN 4X6

€ 2.00

24

0833111258
ref: 24

CIRCLIP

€ 2.00

25

2551045100
ref: 25

SHAFT,GEAR SHIFT

€ 51.50

26

0944426012
ref: 26

SPRING

€ 3.50

27

2567101000
ref: 27

STOPPER,GEAR SHIFT CAM

€ 3.00

28

0916208005
ref: 28

WASHER

€ 2.00

29

0928512002
ref: 29

OIL SEAL

€ 7.00

30

2560045100
ref: 30

LEVER ASSEMBLY,GEAR SHIFTING

€ 52.50

31

2565216500
ref: 31

RUBBER,GEAR SHIFT PEDAL

€ 4.00

32

0110708208
ref: 32

BOLT

€ 3.00

33

3772045011
ref: 33

BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL

€ 92.50

34

0928026003
ref: 34

O-RING (D:2.4 ID:26.2)

€ 2.50

35

0211205208
ref: 35

SCREW 5X20

€ 3.00

36

0832121058
ref: 36

LOCK WASHER

€ 2.00

37

0832221058
ref: 37

WASHER

€ 2.50

38

0920905011
ref: 38

PIN(5X15.5)

€ 2.00

39

0944004010
ref: 39

SPRING

€ 1.50

40

0940406401
ref: 40
L:50

CLAMP L:35

€ 2.50

41

0940408401
ref: 41
L:52

CLAMP

€ 3.50

all assemblies
