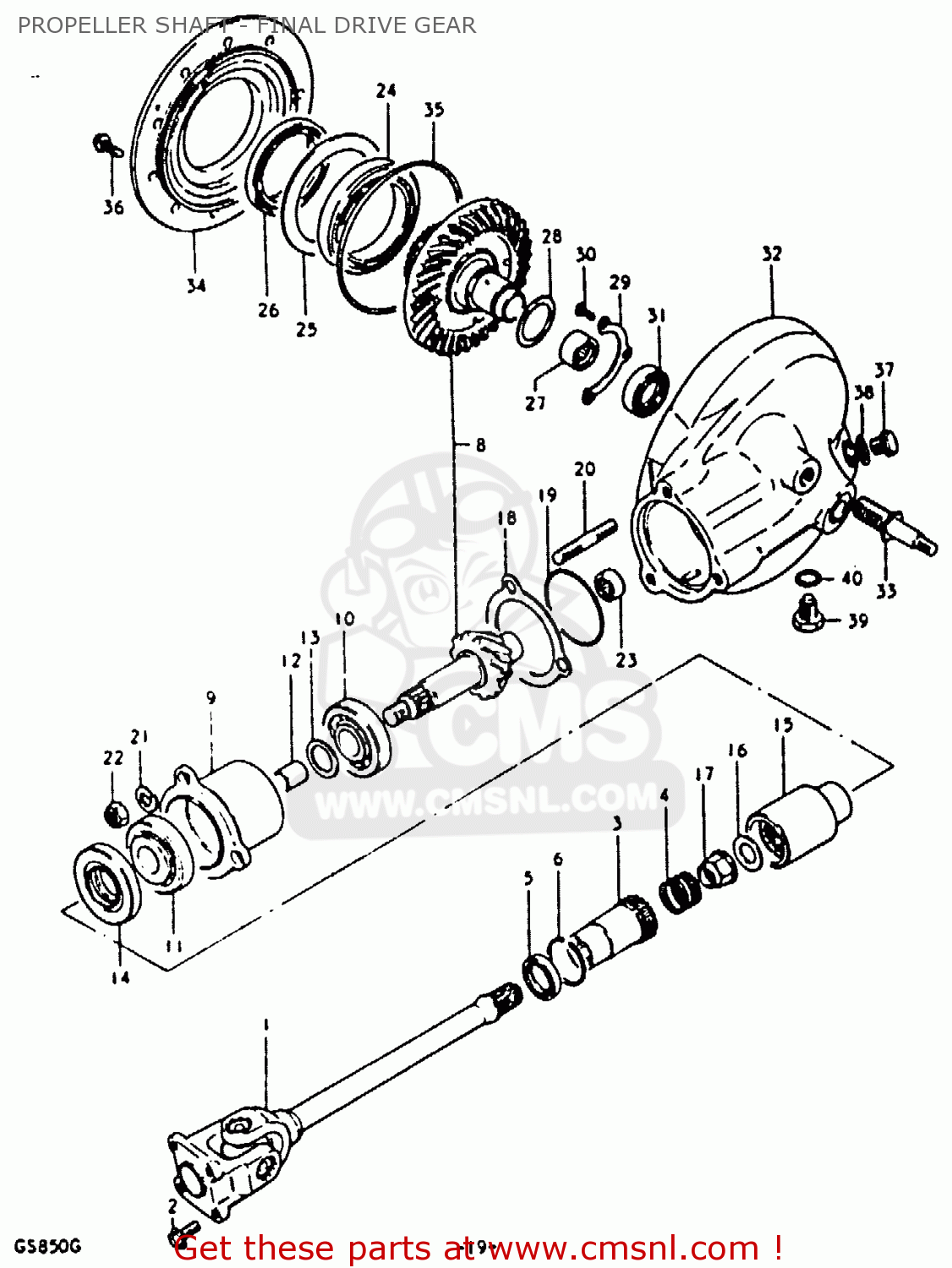

PROPELLER SHAFT - FINAL DRIVE GEAR - GS850 1986 (G) GENERAL EXPORT (E01)

ref

part #

description

quantity

1

2710045100
ref: 1

SHAFT ASSEMBLY,PROPELLER

€ 232.00

2

0910308031
ref: 2
8*16

BOLT 8X16

€ 3.00

3

2717145101
ref: 3

COUPLING,PROPELLER SHAFT

€ 38.00

4

0944027005
ref: 4

SPRING

€ 3.50

5

0928330026
ref: 5

SEAL,OIL(30X40.5X5.5)

€ 9.00

6

0938140003
ref: 6

CIRCLIP

€ 5.00

7

2730045820
ref: 7
INC.REF.NO. 8 40.

FINAL BEVEL GEAR & CASE

€ 1,639.00

8

2730045810
ref: 8
NT:11/34

GEAR SET,FINAL BEVEL

€ 660.50

9

2744145100
ref: 9

HOUSING,DRIVE GEAR

€ 19.00

10

0926525013
ref: 10

BEARING(25X52X19.25)

€ 48.50

11

0926525014
ref: 11

BEARING

€ 44.00

12

0918025057
ref: 12
25.2*30*3.5

SPACER (25.2X30X3.5)

€ 4.00

13-1

0918125006
ref: 13-1
T:1.60

SHIM (25X30X1.6)

€ 3.00

13-2

0918125007
ref: 13-2
T:1.62

SHIM (25X30X1.62)

€ 3.00

13-3

0918125008
ref: 13-3
T:1.64

SHIM (25X30X1.64)

€ 3.00

13-4

0918125009
ref: 13-4
T:1.66

SHIM (25X30X1.66)

€ 3.00

13-5

0918125010
ref: 13-5
T:1.68

SHIM (25X30X1.68)

€ 3.00

13-6

0918125011
ref: 13-6
T:1.70

SHIM (25X30X1.7)

€ 3.00

13-7

0918125012
ref: 13-7
T:1.80

SHIM (25X30X1.8)

€ 3.00

13-8

0918125013
ref: 13-8
T:1.90

SHIM (25X30X1.9)

€ 3.00

13-9

0918125014
ref: 13-9
T:2.00

SHIM (25X30X2

€ 3.00

14

0928332017
ref: 14

SEAL,OIL(32X54X7)

€ 16.50

15

2717245100
ref: 15

GEAR,FINAL DRIVE

€ 47.00

16

0916014021
ref: 16
14*29*4

WASHER(14X29X4)

€ 5.00

17

0915914010
ref: 17

NUT

€ 11.00

18-1

2744545100
ref: 18-1
T:0.15

SHIM,DRIVE GEAR HOUSING

€ 4.00

18-2

2744545102
ref: 18-2
T:0.30

SHIM,DRIVE GEAR HOUSING

€ 4.50

18-3

2744545101
ref: 18-3
T:0.35

SHIM,DRIVE GEAR HOUSING

€ 5.50

18-4

2744545103
ref: 18-4
T:0.40

SHIM,DRIVE GEAR HOUSING

€ 5.50

19

0928063004
ref: 19

O RING(D:2.4,ID:62.6)

€ 9.50

20

0142110308
ref: 20

STUD 10X30

€ 2.50

21

0832131108
ref: 21

LOCK WASHER

€ 2.00

22

0915910027
ref: 22

NUT

€ 3.00

23

0926324012
ref: 23

BEARING(24X33X17)

€ 40.50

24

0926270001
ref: 24

BEARING(70X110X13)

€ 78.50

25-1

2732745100
ref: 25-1
T:0.35

SHIM,DRIVEN GEAR BEARING

€ 2.50

25-2

2732745102
ref: 25-2
T:0.40

SHIM,DRIVEN GEAR BEARING

€ 2.50

25-3

2732745103
ref: 25-3
T:0.50

SHIM,DRIVEN GEAR BEARING

€ 2.50

25-4

2732745104
ref: 25-4
T:0.60

SHIM,DRIVEN GEAR BEARING

€ 3.00

26

0928970001
ref: 26

SEAL,OIL(70X96X16)

€ 41.50

27

0926335004
ref: 27

BEARING(35X48X23.7)

€ 58.00

28-1

2732645104
ref: 28-1
T:1.35

SHIM,FINAL DRIVEN GEAR

€ 2.50

28-2

2732645100
ref: 28-2
T:1.25

SHIM,FINAL DRIVEN GEAR

€ 2.50

28-3

2732645101
ref: 28-3
T:1.20

SHIM,FINAL DRIVEN GEAR

€ 2.50

28-4

2732645103
ref: 28-4
T:1.10

SHIM,FINAL DRIVEN GEAR

€ 3.00

28-5

2732645102
ref: 28-5
T:1.05

SHIM,FINAL DRIVEN GEAR

€ 2.50

29

2732945100
ref: 29

RETAINER,FINAL DRIVEN GEAR BRG

€ 5.00

30

0211206128
ref: 30

SCREW 6X12

€ 2.00

31

0928330028
ref: 31

SEAL,OIL(30X42X7)

€ 7.50

32

2745045102
ref: 32

CASE ASSEMBLY,FINAL GEAR

€ 167.50

33

0910810025
ref: 33

STUD

€ 16.00

34

2746045101
ref: 34

CASE,FINAL GEAR BEARING

€ 115.00

35

0928000014
ref: 35

O-RING (D:3.1 ID:144.4)

€ 9.50

36

0151708258
ref: 36

BOLT

€ 2.50

37

0924714012
ref: 37

PLUG (14X12)

€ 3.50

38

0916814004
ref: 38

GASKET(14X19.2X2) (NAS)

€ 2.50

39

0924714014
ref: 39

PLUG

€ 5.50

40

0916814004
ref: 40

GASKET(14X19.2X2) (NAS)

€ 2.50
