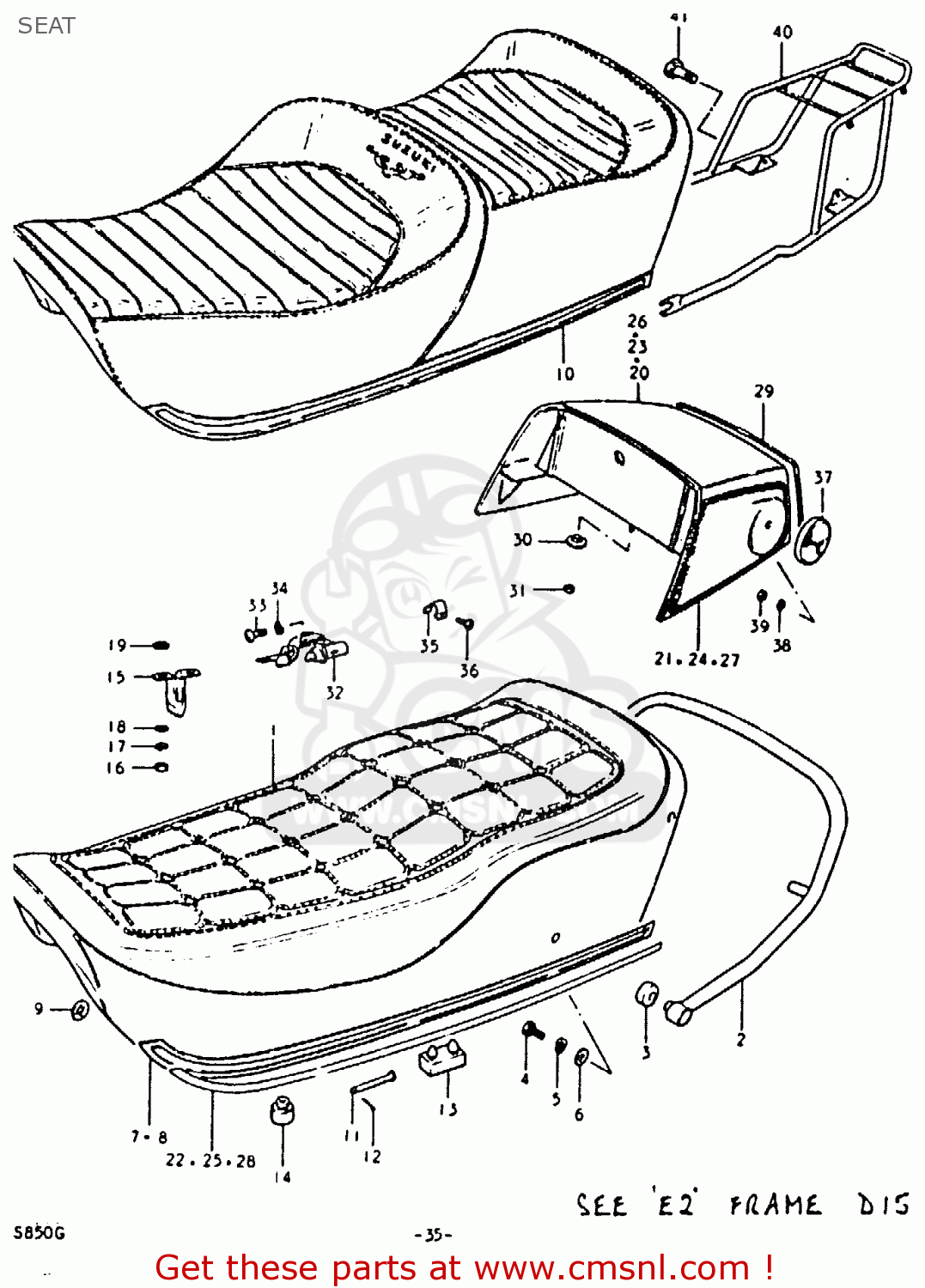

SEAT

ref

part #

description

quantity

1

451004510041G
ref: 1
STEP TYPE

SEAT ASSEMBLY

€ 360.50

2

4621145100
ref: 2

HANDLE,PILLION RIDER

€ 43.50

3

4621249000
ref: 3

CUSHION

€ 15.00

4

0110708208
ref: 4

BOLT

€ 3.00

5

0832121088
ref: 5

LOCK WASHER

€ 2.00

6

0832211088
ref: 6

WASHER

€ 2.00

7

4519145100
ref: 7

MOLE,R

€ 114.50

8

4519245100
ref: 8

MOLE,L

€ 149.00

9

0914804010
ref: 9

NUT

€ 2.00

10

451004561040N
ref: 10
OPT

SEAT ASSEMBLY

€ 0.00

11

0920006018
ref: 11

PIN

€ 2.00

12

0411120158
ref: 12

PIN

€ 1.50

13

0932108006
ref: 13

CUSHION

€ 3.00

14

0932110001
ref: 14

CUSHION

€ 2.50

15

4521347000
ref: 15

STRIKER,SEAT LOCK

€ 7.00

16

0831011068
ref: 16

NUT

€ 2.50

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

0832221068
ref: 18

WASHER

€ 2.00

19

0916006027
ref: 19

WASHER (6.5X20X1.2)

€ 2.00

20

4551045100019
ref: 20

COVER, SEAT TAIL

€ 138.50

21

681014589067M
ref: 21

TALL COVER TAPE SET

€ 27.00

22

6810145860019
ref: 22

TAPE SET

€ 16.50

23

455104510000J
ref: 23

COVER, SEAT TAIL

€ 138.50

24

681014589062F
ref: 24

TAIL COVER TAPE SET

€ 0.00

25

681014586000J
ref: 25

TAPE SET, SEAT MOULDING

€ 0.00

26

455104510005H
ref: 26

COVER, SEAT TAIL

€ 138.50

27

681014589067N
ref: 27

TAIL COVER TAPE SET

€ 27.50

28

681014586005H
ref: 28

TAPE SET, SEAT MOULDING

€ 16.50

29

4552245100
ref: 29

MOLDING,SEAT TAIL COVER

€ 444.50

30

0916906016
ref: 30

WASHER

€ 1.50

31

0831921068
ref: 31

NUT 6MM

€ 2.00

32

9570045813
ref: 32

LOCK ASSY,SEAT

€ 59.50

33

0211205128
ref: 33

SCREW

€ 2.50

34

0832121058
ref: 34

LOCK WASHER

€ 2.00

35

9572245000
ref: 35

SPRING,HELMET HOLDER

€ 8.50

36

0211205088
ref: 36

SCREW

€ 2.00

37

3597049030
ref: 37

REFLEX REFLECTOR,RR

€ 27.00

38

0832221058
ref: 38

WASHER

€ 2.50

39

0831011058
ref: 39

NUT

€ 2.50

40

4631049000
ref: 40
OPT

CARRIER

€ 54.50

41

0121408507
ref: 41
OPT

BOLT

€ 0.00
