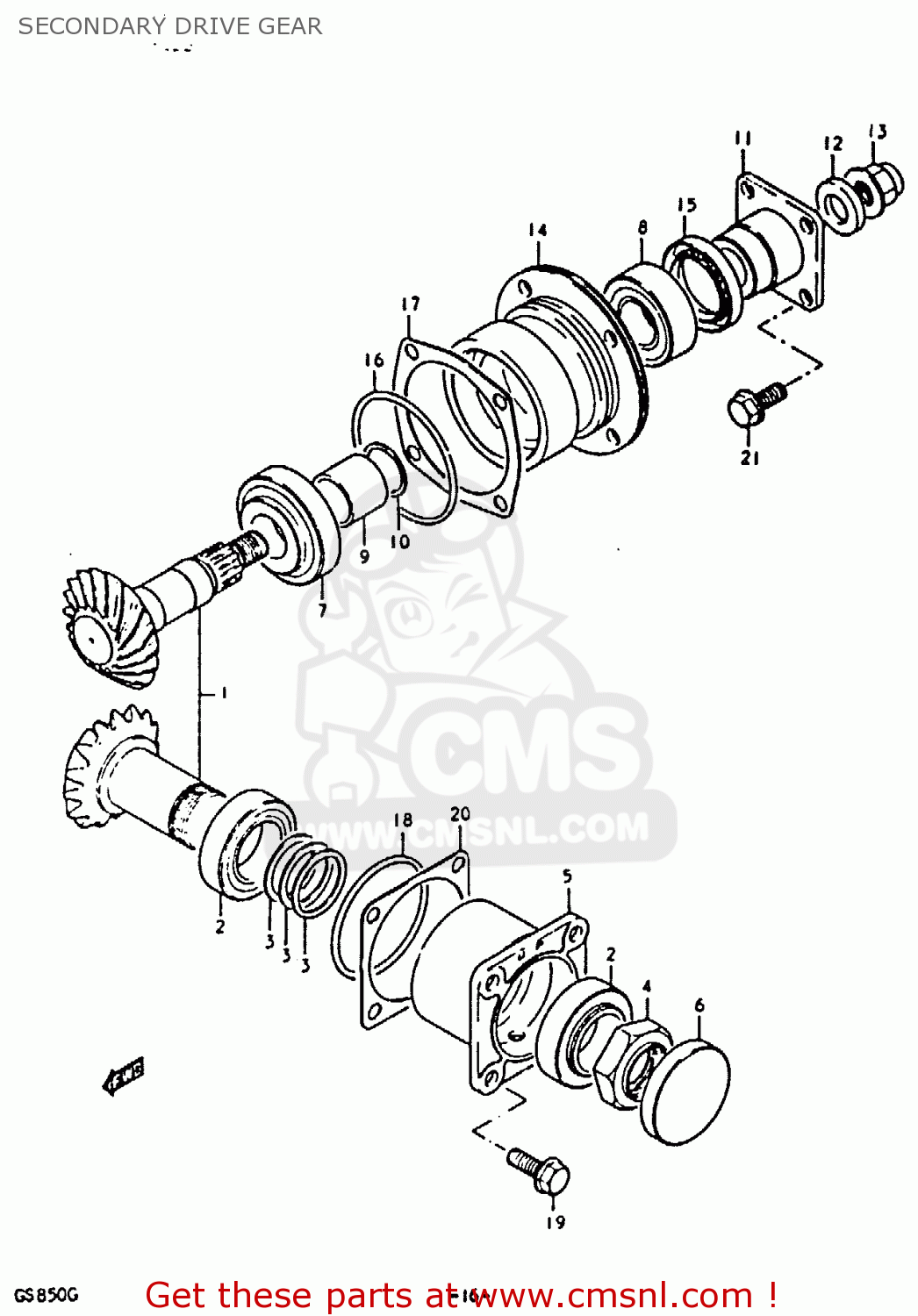

SECONDARY DRIVE GEAR

ref

part #

description

quantity

0

2490045820
ref: 0
INC.REF.NO. 1~15.

SECONDARY BEVEL GEAR/HOUSING

€ 732.50

1

2490045810
ref: 1
NT:16/17

SECONDARY GEAR SET

€ 352.00

2

0926532001
ref: 2

BEARING(32X58X17)

€ 46.00

3-1

0918132001
ref: 3-1
T:1.60

SHIM (32X38X1.6)

€ 4.50

3-2

0918132002
ref: 3-2
T:1.62

SHIM(32X38X1.62)

€ 4.00

3-3

0918132003
ref: 3-3
T:1.64

SHIM (32X38X1.64)

€ 3.00

3-4

0918132004
ref: 3-4
T:1.66

SHIM (32X38X1.66)

€ 3.50

3-5

0918132005
ref: 3-5
T:1.68

SHIM (32X38X1.68)

€ 3.00

3-6

0918132006
ref: 3-6
T:1.70

SHIM (32X38X1.7)

€ 4.00

3-7

0918132007
ref: 3-7
T:1.80

SHIM (32X38X1.8)

€ 3.00

3-8

0918132008
ref: 3-8
T:1.90

SHIM (32X38X1.9)

€ 4.00

3-9

0918132009
ref: 3-9
T:2.00

SHIM(32X38X2)

€ 4.50

4

0915932001
ref: 4

NUT

€ 9.50

5

2493145100
ref: 5

HOUSING,SECONDARY DRIVE

€ 58.00

6

0924158001
ref: 6

PLUG

€ 15.00

7

0926525012
ref: 7

TAPER,ROLLER BEARING

€ 52.50

8

0926525011
ref: 8

BEARING

€ 44.00

9

0918025056
ref: 9
25.2*30*21.5

SPACER (25.2X30X40)

€ 7.00

10-1

0918125006
ref: 10-1
T:1.60

SHIM (25X30X1.6)

€ 3.00

10-2

0918125007
ref: 10-2
T:1.62

SHIM (25X30X1.62)

€ 3.00

10-3

0918125008
ref: 10-3
T:1.64

SHIM (25X30X1.64)

€ 3.00

10-4

0918125009
ref: 10-4
T:1.66

SHIM (25X30X1.66)

€ 3.00

10-5

0918125010
ref: 10-5
T:1.68

SHIM (25X30X1.68)

€ 3.00

10-6

0918125011
ref: 10-6
T:1.70

SHIM (25X30X1.7)

€ 3.00

10-7

0918125012
ref: 10-7
T:1.80

SHIM (25X30X1.8)

€ 3.00

10-8

0918125013
ref: 10-8
T:1.90

SHIM (25X30X1.9)

€ 3.00

10-9

0918125014
ref: 10-9
T:2.00

SHIM (25X30X2

€ 3.00

11

2495145101
ref: 11

FLANGE,UNIVERSAL JOINT

€ 35.00

12

0916014021
ref: 12
14*29*4

WASHER(14X29X4)

€ 5.00

13

0915914010
ref: 13

NUT

€ 11.00

14

2494145101
ref: 14

HOUSING,SECONDARY DRIVE

€ 76.50

15

0928335018
ref: 15

SEAL,OIL(35X52X9)

€ 13.00

16

0928070005
ref: 16

O RING(D:3.1,ID:69.4)

€ 6.50

17-1

2494545100
ref: 17-1
T:0.35

SHIM,DRIVEN GEAR HOUSING

€ 4.00

17-2

2494545102
ref: 17-2
T:0.40

SHIM,DRIVEN GEAR HOUSING

€ 4.50

17-3

2494545103
ref: 17-3
T:0.50

SHIM,DRIVEN GEAR HOUSING

€ 4.50

17-4

2494545104
ref: 17-4
T:0.60

SHIM,DRIVEN GEAR HOUSING

€ 4.00

18

0928063004
ref: 18

O RING(D:2.4,ID:62.6)

€ 9.50

19

0151708208
ref: 19

BOLT

€ 3.00

20-1

2493545100
ref: 20-1
T:0.35

SHIM,SECONDARY DRIVE

€ 13.00

20-2

2493545102
ref: 20-2
T:0.40

SHIM,SECONDARY DRIVE

€ 13.00

20-3

2493545103
ref: 20-3
T:0.50

SHIM,DRIVE GEAR HOUSING

€ 5.50

20-4

2493545104
ref: 20-4
T:0.60

SHIM,SECONDARY DRIVE

€ 4.50

21

0151708258
ref: 21

BOLT

€ 2.50
