CYLINDER

GS850 1986 (G) GENERAL EXPORT (E01)

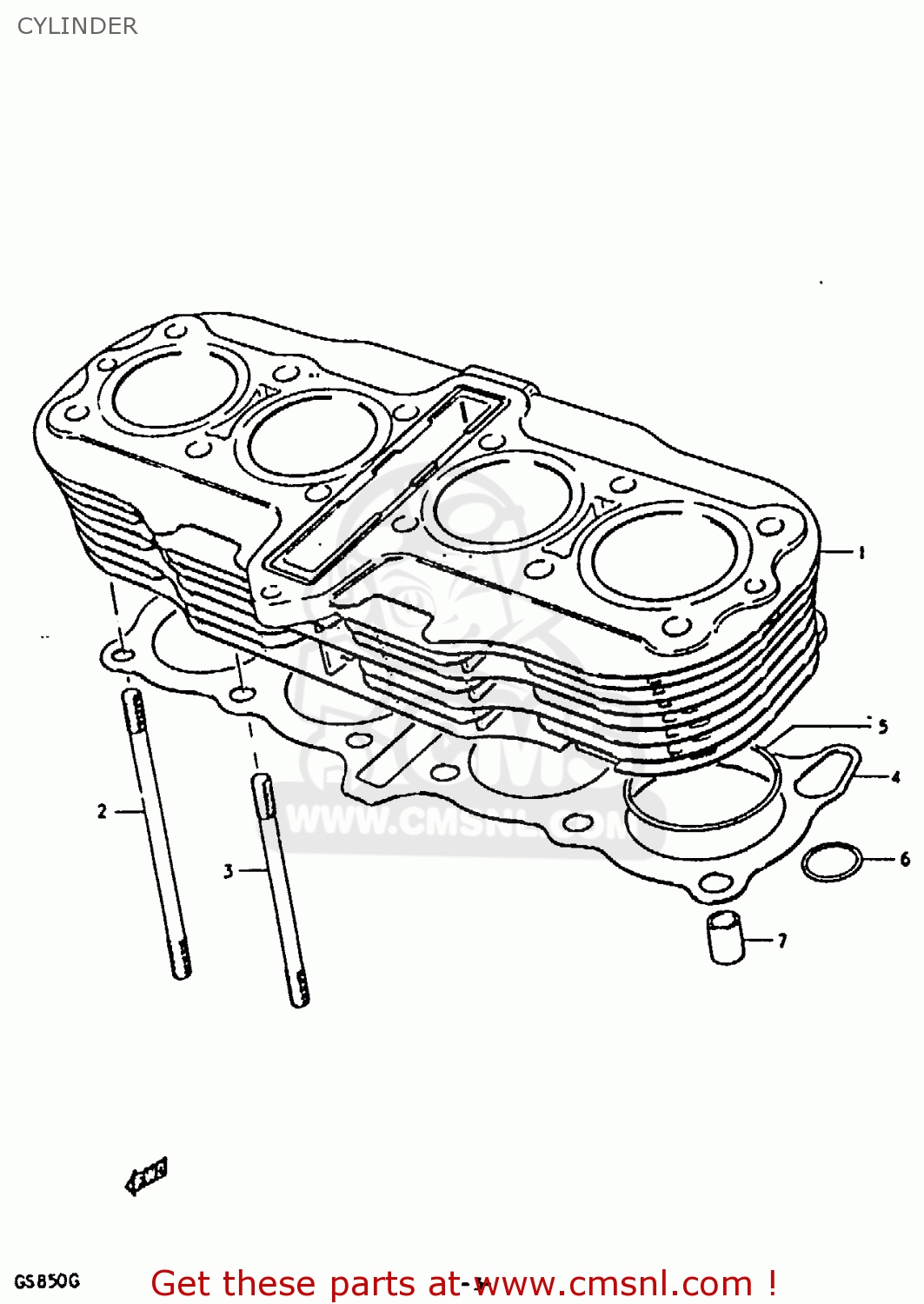

Cylinder diagram GS850 1986 (G) GENERAL EXPORT (E01)

CYLINDER GS850 1986 (G) GENERAL EXPORT (E01)

CYLINDER GS850 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

1

1121045100
ref: 1

CYLINDER

€ 0.00

2

0910810027
ref: 2

BOLT,STUD

€ 12.00

3

0910810028
ref: 3

STUD

€ 9.00

4

1124145040
ref: 4

GASKET,CYLINDER (MCA)

€ 12.50

5

0928070001
ref: 5

O RING(D:2,ID:70)

€ 7.50

6

0928021004
ref: 6

O RING(D:3.05)

€ 4.00

7

0920613001
ref: 7

PIN

€ 2.50
