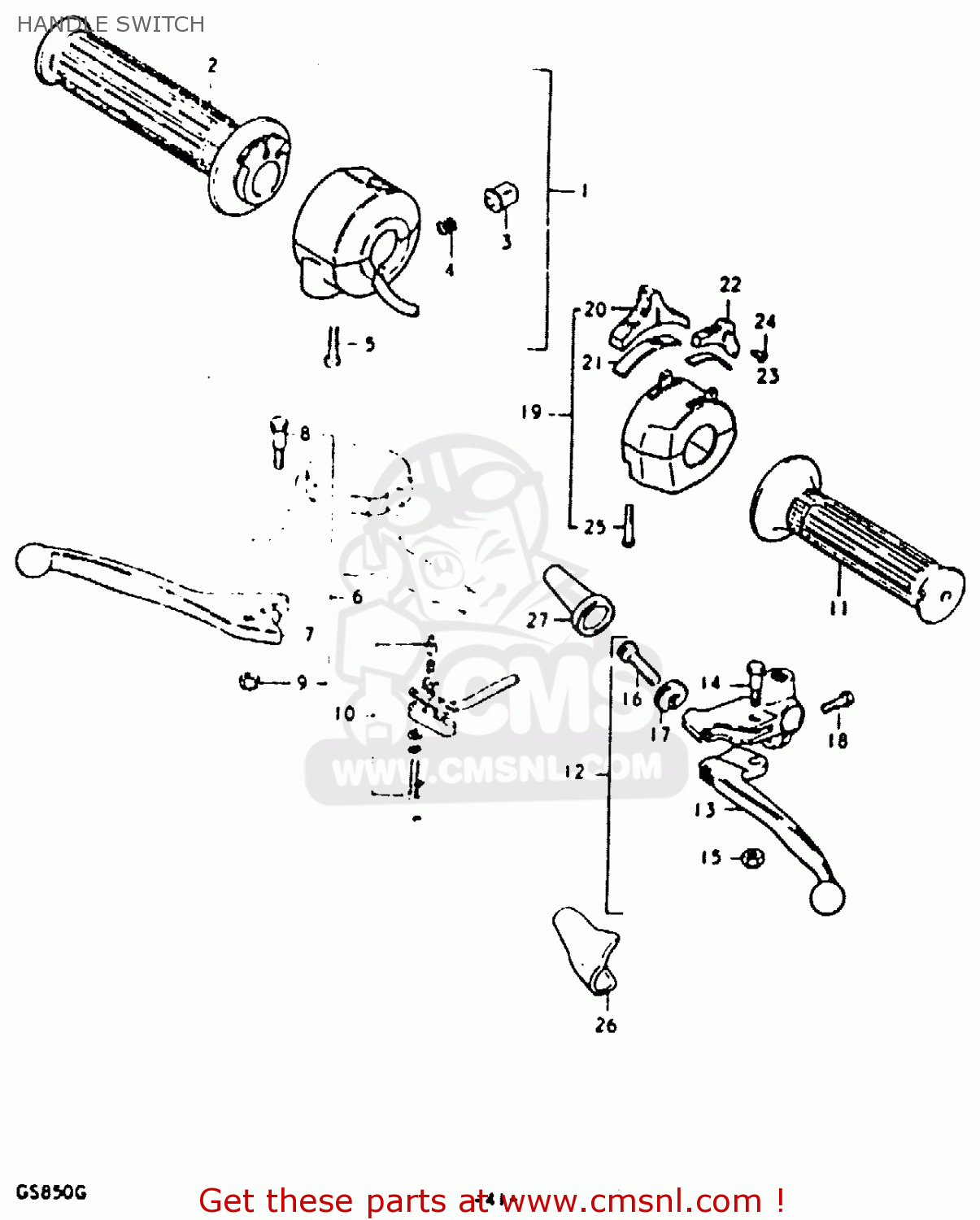

HANDLE SWITCH

ref

part #

description

quantity

1

5710049010
ref: 1

GRIP ASSY, THROTTLE

€ 57.00

2

5711034600
ref: 2

GRIP,THROTTLE

€ 27.50

3

5737001311
ref: 3

BUTTON

€ 4.00

4

5738201311
ref: 4

SPRING

€ 3.00

5

0211205258
ref: 5

SCREW

€ 2.00

6

5730011300
ref: 6

LEVER ASSEMBLY,BRAKE

€ 27.50

7

5742011300
ref: 7

LEVER,BRAKE

€ 27.50

8

5743118620
ref: 8

BOLT,LEVER

€ 8.00

9

0831921068
ref: 9

NUT 6MM

€ 2.00

10

5746033700
ref: 10
OPT

SWITCH ASSY,STOP

€ 38.50

11

5721128600
ref: 11

GRIP,L

€ 10.00

12

5750049000
ref: 12

LEVER ASSEMBLY

€ 49.50

13

5762049000
ref: 13

LEVER,CLUTCH

€ 30.50

14

5743149000
ref: 14

BOLT,LEVER PIVOT

€ 6.00

15

0831921068
ref: 15

NUT 6MM

€ 2.00

16

5744111010
ref: 16

ADJUSTER,CABLE

€ 8.00

17

5744211010
ref: 17

NUT,CABLE ADJUSTER

€ 4.00

18

0110706208
ref: 18

BOLT

€ 2.00

19

3740049000
ref: 19

SWITCH ASSEMBLY,HANDLE,LEFT

€ 278.00

20

5771233011
ref: 20

KNOB,HANDLE SWITCH

€ 6.00

21

5771433010
ref: 21

PLATE,SWITCH KNOB

€ 3.00

22

5771334012
ref: 22

KNOB,DIMMER SWITCH

€ 6.00

23

5771534012
ref: 23

SPRING

€ 2.00

24

0312103088
ref: 24

SCREW

€ 3.50

25

0912505105
ref: 25

SCREW

€ 4.50

26

5766131000
ref: 26

COVER,CLUTCH LEVER

€ 5.50

27

5827331000
ref: 27

BOOT,CLUTCH CABLE

€ 2.50

all assemblies
