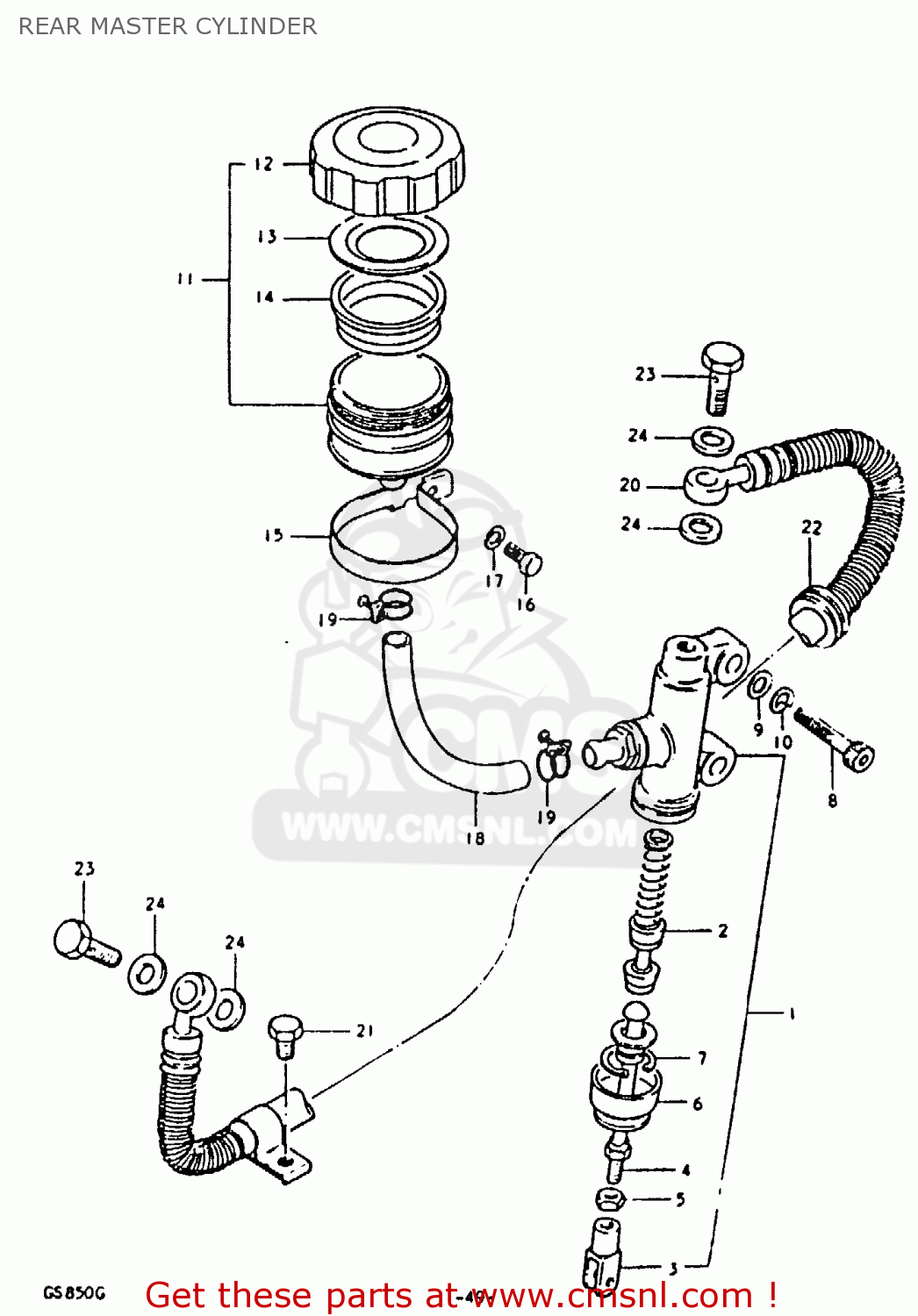

REAR MASTER CYLINDER

ref

part #

description

quantity

1

6960047001
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 182.00

2

6960045810
ref: 2

PISTON/CUP SET

€ 53.00

3

6969245001
ref: 3

YOKE

€ 11.00

4

6967045000
ref: 4

ROD,PUSH

€ 18.50

5

0831012088
ref: 5

NUT

€ 2.00

6

6969145001
ref: 6

BOOT

€ 6.50

7

5116270040
ref: 7

CIRCLIP

€ 3.00

8

0910608013
ref: 8

BOLT

€ 3.00

9

0832211088
ref: 9

WASHER

€ 2.00

10

0832121088
ref: 10

LOCK WASHER

€ 2.00

11

6974047001
ref: 11

TANK ASSEMBLY,RESERVOIR

€ 41.00

12

5966918605
ref: 12

CAP

€ 16.50

13

5966818441
ref: 13

PLATE,DIAPHRAGM

€ 3.50

14

5966718441
ref: 14

DIAPHRAGM

€ 8.50

15

0940251601
ref: 15

CLAMP

€ 6.50

16

0110706168
ref: 16

BOLT, UPPER

€ 3.00

17

0832121068
ref: 17

LOCK WASHER

€ 2.50

18

6973147000
ref: 18
L:120

HOSE,RESERVOIR TANK

€ 34.00

19

0940016301
ref: 19

CLAMP

€ 4.50

20

6948045101
ref: 20

HOSE,REAR BRAKE

€ 75.50

21

0110706108
ref: 21

BOLT

€ 2.00

22

0930814007
ref: 22

GROMMET

€ 4.00

23

0936010003
ref: 23

BOLT UNION

€ 6.50

24

0916110005
ref: 24

WASHER

€ 2.00
