FRONT MASTER CYLINDER

GS850 1986 (G) GENERAL EXPORT (E01)

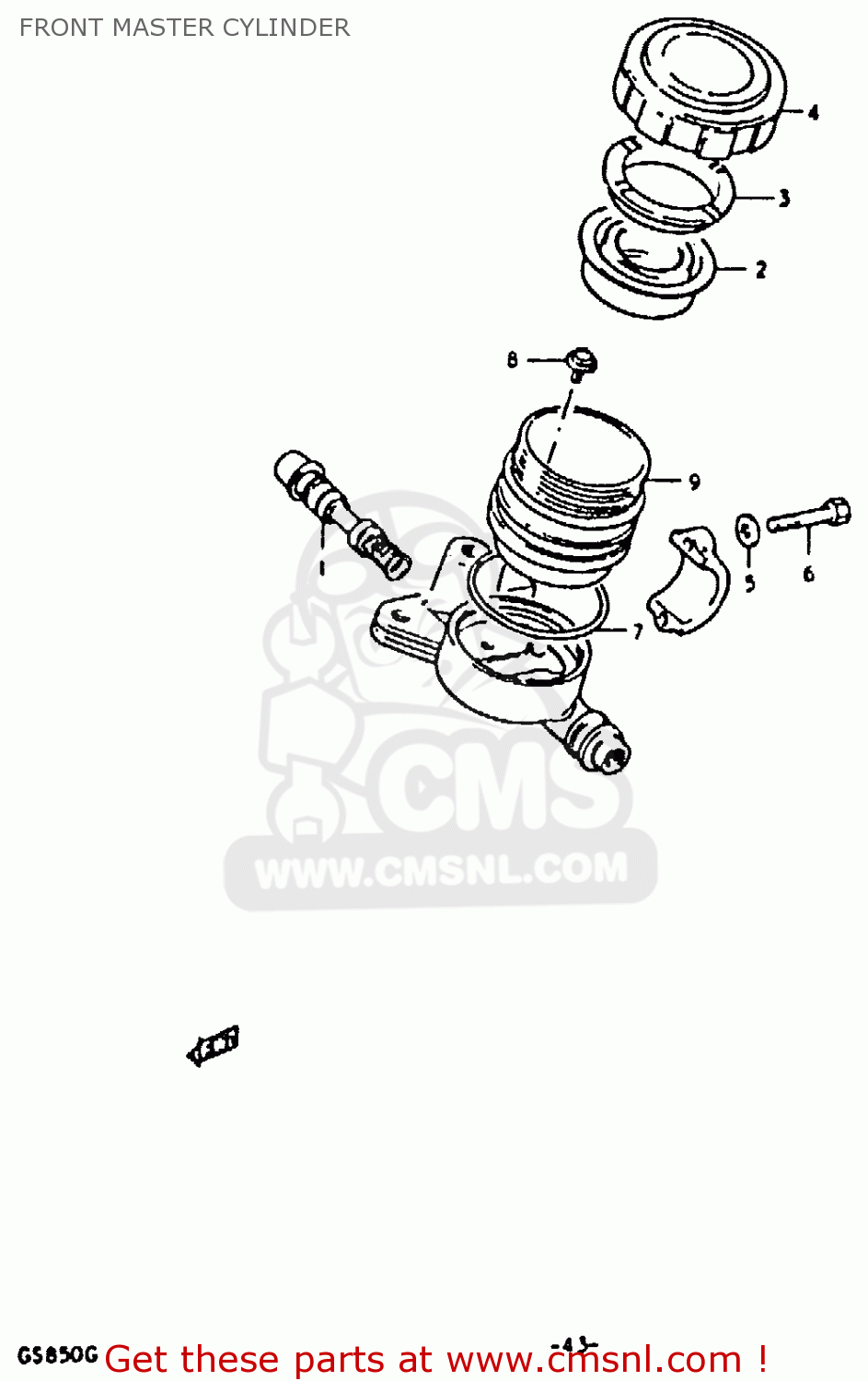

Front master cylinder diagram GS850 1986 (G) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS850 1986 (G) GENERAL EXPORT (E01)

FRONT MASTER CYLINDER GS850 1986 (G) GENERAL EXPORT (E01)

prices are in EUR

ref

part #

description

quantity

0

5960031617
ref: 0
NISSIN

CYLINDER ASSY, MASTER

€ 298.00

1

5960031827
ref: 1

CYLINDER ASSEMBLY,MASTER

€ 73.50

2

5966718441
ref: 2

DIAPHRAGM

€ 8.50

3

5966818441
ref: 3

PLATE,DIAPHRAGM

€ 3.50

4

5966918605
ref: 4

CAP

€ 16.50

5

0832221068
ref: 5

WASHER

€ 2.00

6

0110706258
ref: 6

BOLT

€ 2.00

7

5968633600
ref: 7

O RING

€ 14.00

8

5968833601
ref: 8

SCREW,MASTER CYLINDER

€ 2.00

9

5968745000
ref: 9

RESERVOIR

€ 28.50
