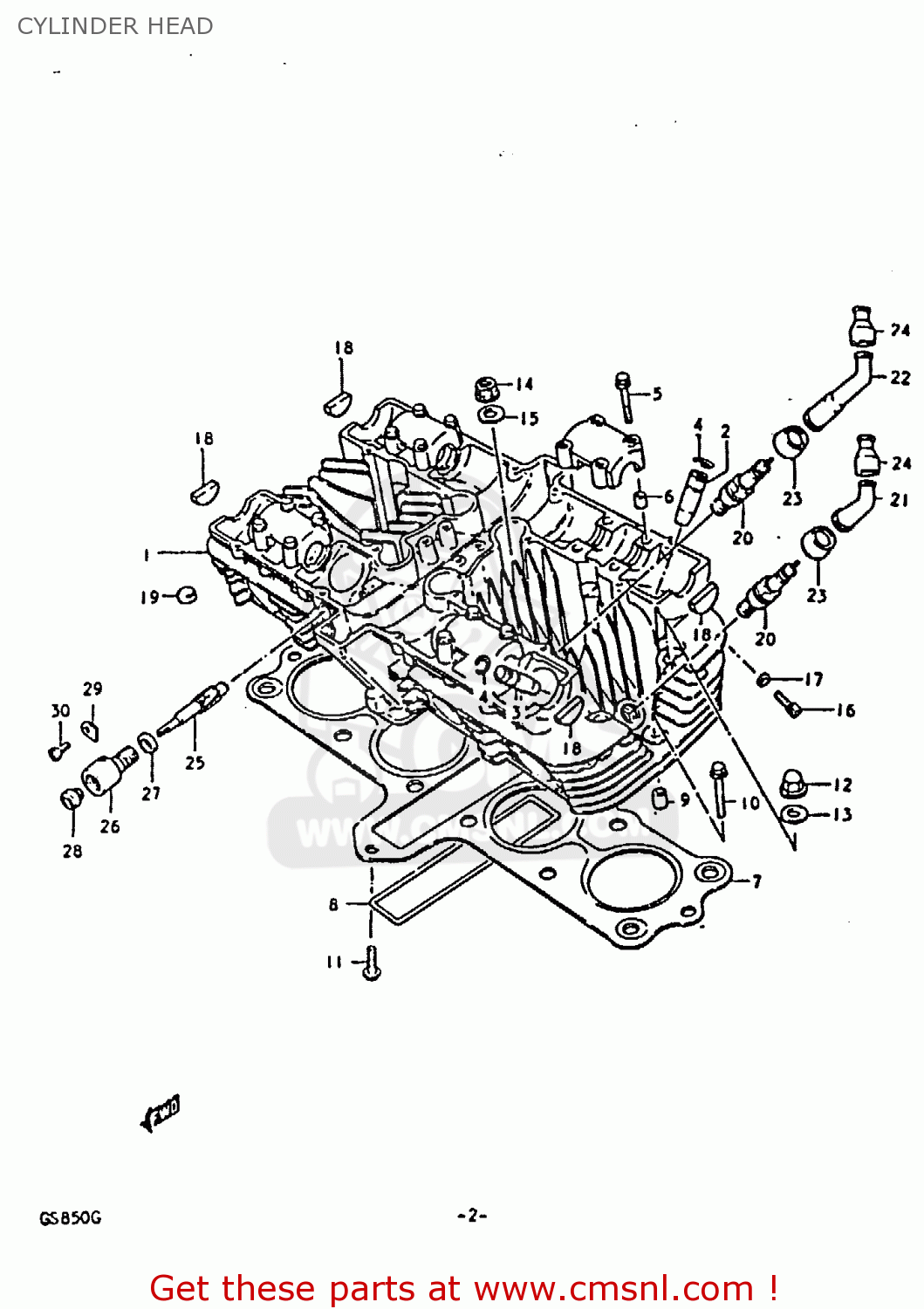

CYLINDER HEAD

ref

part #

description

quantity

1

1110045820
ref: 1

HEAD ASSEMBLY,CYLINDER

€ 877.00

2

1111545722
ref: 2

GUIDE,VALVE

€ 25.50

3

1111645722
ref: 3

GUIDE,VALVE

€ 27.00

4

0938110003
ref: 4

RING,SNAP

€ 2.50

5

0910306026
ref: 5

BOLT(6X39)

€ 2.00

6

0920608001
ref: 6

PIN(6.2X8X11)

€ 2.00

7

1114149002
ref: 7

GASKET,CYLINDER HEAD (MCA)

€ 102.50

8

0928099003
ref: 8

O RING(D:3,ID:26X157)

€ 34.00

9

0421111189
ref: 9

PIN

€ 2.00

10

0151706458
ref: 10

BOLT,UNDER

€ 2.50

11

0151706308
ref: 11

BOLT

€ 2.00

12

0915910026
ref: 12

NUT

€ 6.00

13

0916810017
ref: 13

GASKET(10.5X22X2) (NAS)

€ 3.50

14

0831616108
ref: 14

NUT

€ 2.00

15

0916010039
ref: 15
10.5*22*2.3

WASHER(10.5X22X2.3)

€ 2.50

16

0910605006
ref: 16

BOLT

€ 2.00

17

0916805010
ref: 17

GASKET(5.3X9.3X1.2) (NAS)

€ 2.00

18

0924123002
ref: 18

PLUG

€ 8.50

19

1115245000
ref: 19

PAD

€ 3.50

20-1

0948200091
ref: 20-1
NGK, B-8ES

PLUG,SPARK

€ 3.00

20-2

0948200092
ref: 20-2
ND, W24ES

PLUG,SPARK(W24ES)

€ 3.50

21

3351043010
ref: 21

CAP,SPARK PLUG

€ 11.50

22

3351045010
ref: 22

CAP ASSY,SPARK PLUG

€ 23.00

23

3354169010
ref: 23

SEAL,SPARK PLUG

€ 5.00

24

3354298000
ref: 24

SEAL,SPARK PLU

€ 4.50

25

2643145001
ref: 25
NT:10

GEAR,TACHOMETER DRIVEN

€ 43.00

26

2644145000
ref: 26

SLEEVE,TACHOMETER DRIVE

€ 18.00

27

2645145000A
ref: 27

SEAL,TACHOMETER DRIVEN

€ 4.50

28

0928905002
ref: 28

SEAL,OIL(5X12X8)

€ 11.00

29

2644933000
ref: 29

PLATE,TACH DRIVE GEAR SLEEVE

€ 3.50

30

0912805101
ref: 30

SCREW(5X12)

€ 1.50
