CYLINDER HEAD COVER

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

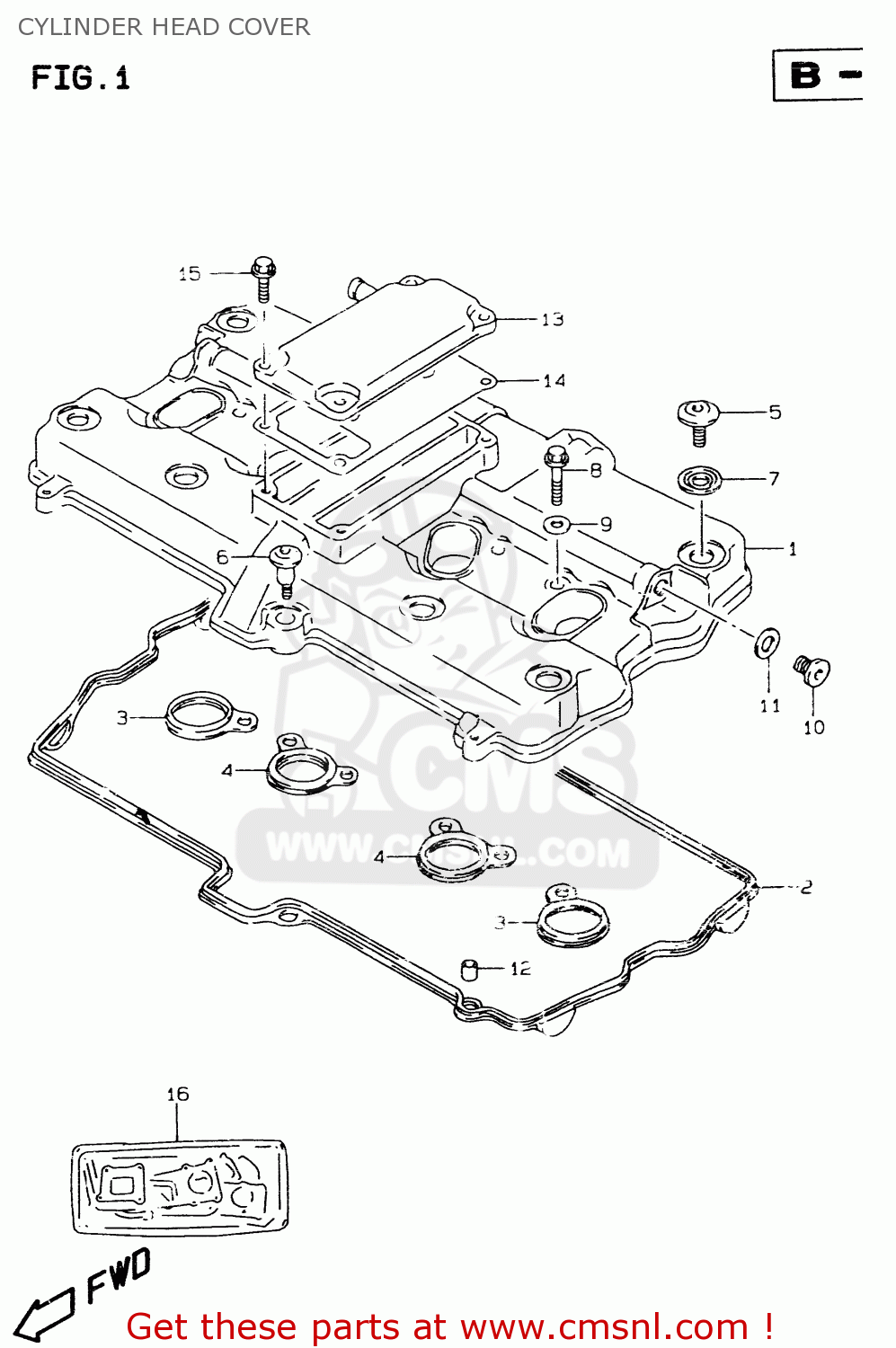

Cylinder head cover diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

CYLINDER HEAD COVER GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

CYLINDER HEAD COVER GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1117126E01
ref: 1

COVER,CYLINDER HEAD

€ 522.00

2

1117327A02
ref: 2

GASKET,CYLINDER HEAD COVER (NAS)

€ 34.00

3

1117827A01
ref: 3

GASKET,HEAD COVER NO.2 (NAS)

€ 5.50

4

1117927A02
ref: 4

GASKET,HEAD COVER NO.3 (NAS)

€ 7.50

5

0910607009
ref: 5

BOLT(7X17.5)

€ 4.50

6

0910607010
ref: 6

BOLT(7X31)

€ 4.50

7

0916111008
ref: 7

WASHER(10.6X25.5X2.3)

€ 4.50

8

0936008009
ref: 8

BOLT,UNION 8X35

€ 26.50

9

0916808008
ref: 9

GASKET 8.2X14X1 (NAS)

€ 1.00

10

0924812004
ref: 10

PLUG(L:12)

€ 5.50

11

0916812002
ref: 11

GASKET(12.1X16.2X3.7) (NAS)

€ 2.00

12

0422108129
ref: 12

PIN

€ 2.00

13-1

1117626D00
ref: 13-1

COVER,BREATHER

€ 35.50

13-2

1117631301
ref: 13-2
E18

COVER,BREATHER

€ 31.50

14-1

1117717E00
ref: 14-1

GASKET,BREATHER COVER

€ 12.50

14-2

1117727A00H17
ref: 14-2
E18

GASKET,BREATHER COVER (NAS)

€ 11.00

15-1

0155006253
ref: 15-1

BOLT

€ 2.50

15-2

0155006203
ref: 15-2
E18

BOLT

€ 2.50

16-1

1140026881
ref: 16-1
MODEL S/T/V

GASKET SET (NAS)

€ 356.50

16-2

1140026882
ref: 16-2
MODEL W

GASKET SET (NAS)

€ 356.50
