ELECTRICAL

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

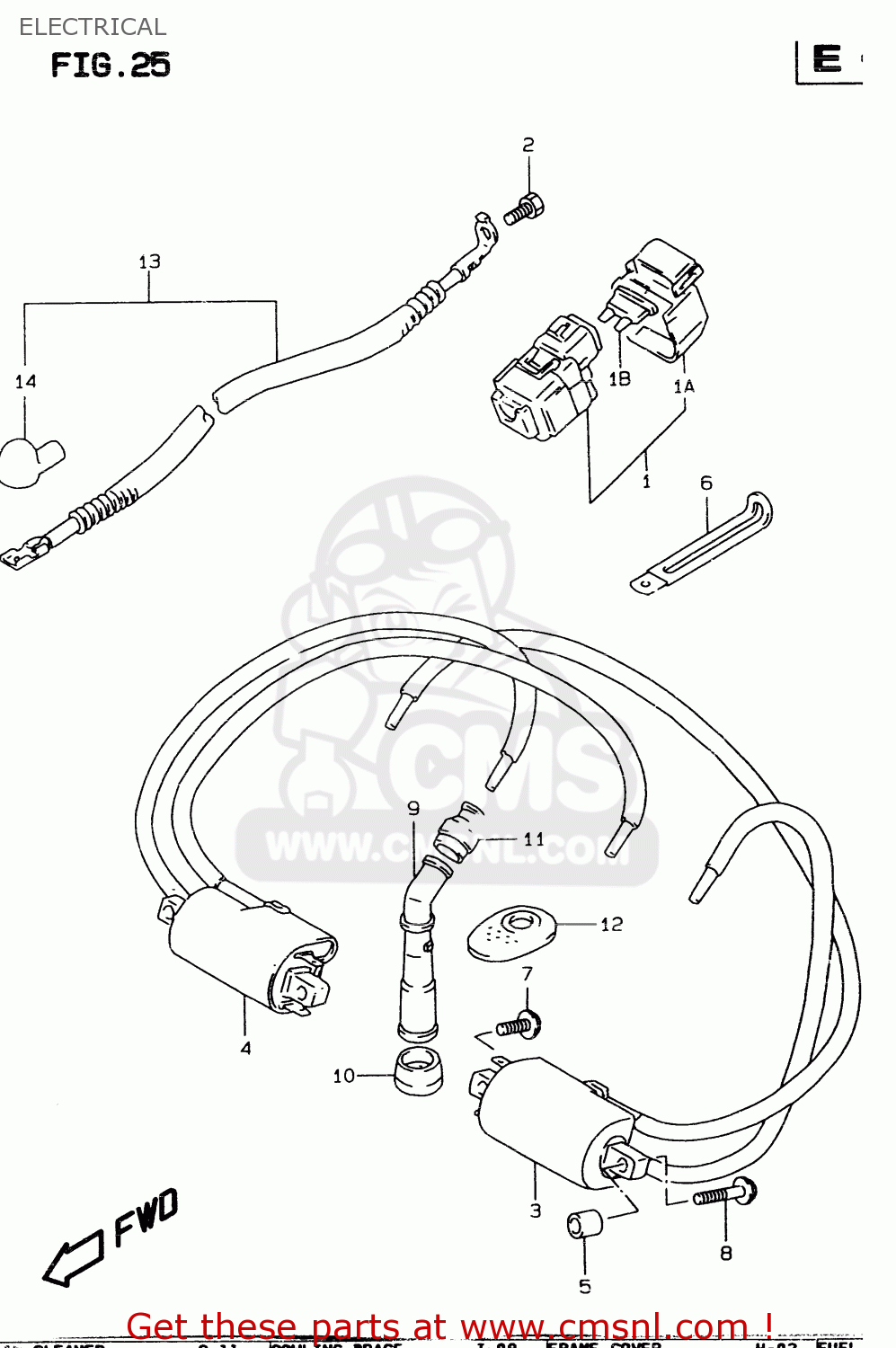

Electrical diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

ELECTRICAL GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

ELECTRICAL GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

3180026E00
ref: 1

RELAY ASSY,STARTING MOTOR

€ 77.50

1A

3186126E00
ref: 1A

COVER,STARTER RELAY

€ 3.50

1B

0948130101
ref: 1B

FUSE(30A)

€ 6.00

2

0912806013
ref: 2

SCREW(6X8)

€ 1.50

3

3341026E01
ref: 3
<-33410-26E00

COIL ASSY,IGNITION

€ 163.50

4

3342026E01
ref: 4
<-33420-26E00

COIL ASSY,IGNITION

€ 152.50

5

0918006095
ref: 5

SPACER(6X12X10)

€ 4.50

6

0940406431
ref: 6

CLAMP(L:65)

€ 2.50

7

0155006203
ref: 7
MODEL S/T/V

BOLT

€ 2.50

8-1

0155006253
ref: 8-1
MODEL S/T/V

BOLT

€ 2.50

8-2

0155006253
ref: 8-2
MODEL W

BOLT

€ 2.50

9

3351048B10
ref: 9

CAP,SPARK PLUG

€ 29.50

10

3354123E01
ref: 10
<-33541-23E00

SEAL,SPARK PLUG CAP

€ 7.00

11

3354238B00
ref: 11

SEAL,HIGH TENSION CORD

€ 4.50

12

3354348B00
ref: 12

COVER,SPARK PLUG CAP

€ 12.50

13

3381026E00
ref: 13

WIRE,STARTER MOTOR LEAD

€ 25.00

14

3186106C00
ref: 14

CAP,STARTER MOTOR TERMINAL

€ 3.00
