FOOTREST

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

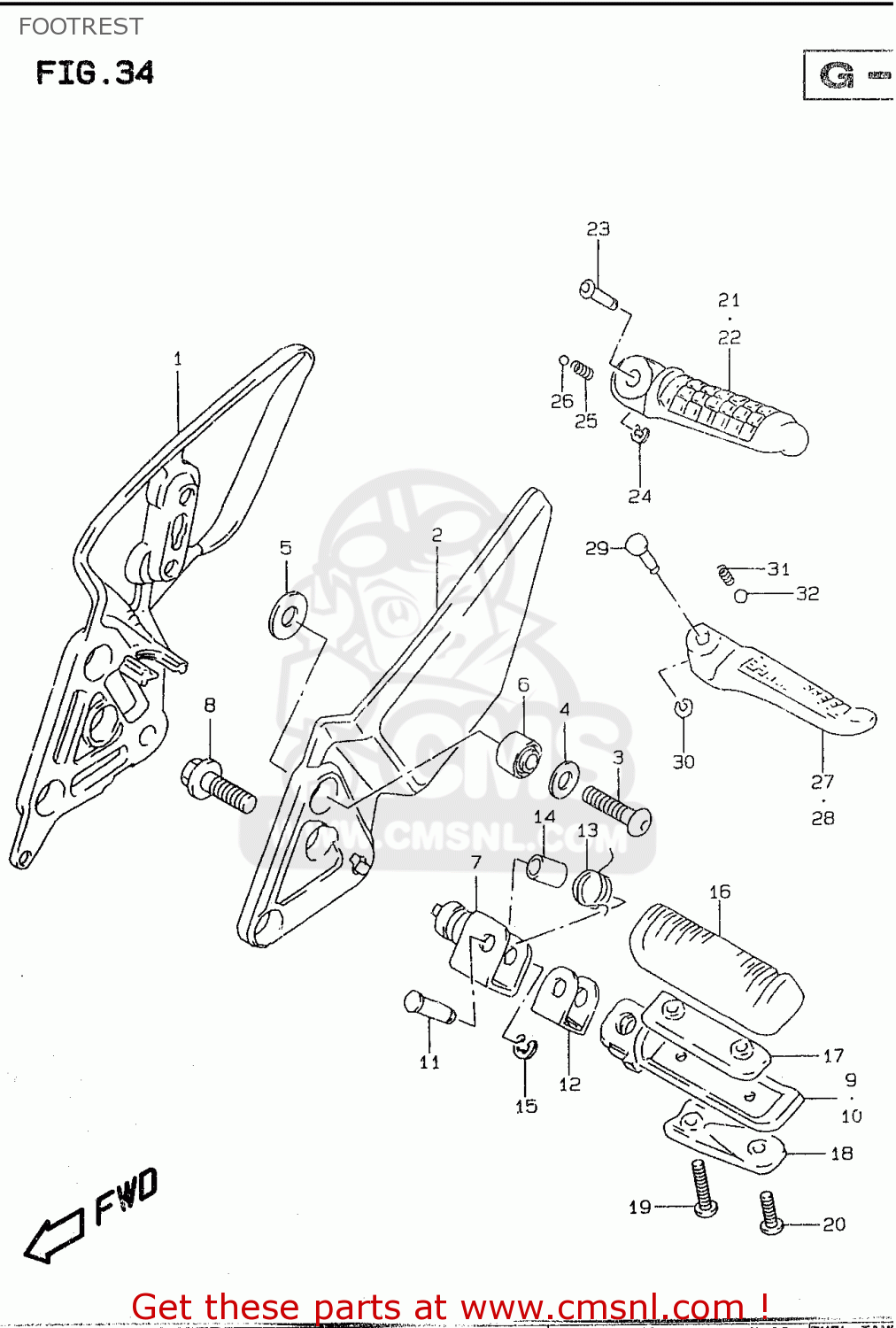

Footrest diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

FOOTREST GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37
FOOTREST GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37
FOOTREST GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1-1
4351126E00
ref: 1-1
MODEL S/T
BRACKET,FRONT FOOTREST
€ 218.00
1-2
4351126E01
ref: 1-2
MODEL V
BRACKET,FRONT FOOTREST
€ 218.00
1-3
4351127E50
ref: 1-3
MODEL W
BRACKET,FRONT FOOTREST
€ 218.00
2-1
4352126E00
ref: 2-1
MODEL S/T/V
BRACKET,FRONT FOOTREST
€ 218.00
2-2
4352127E50
ref: 2-2
MODEL W
BRACKET,FRONT FOOTREST
€ 218.00
3
0910608134
ref: 3
BOLT(8X28)
0910608134
€ 4.00
4-1
0916008021
ref: 4-1
MODEL S/T/V
WASHER (8.2X24X1.6)
0916008021
€ 2.00
4-2
0916008131
ref: 4-2
MODEL W
WASHER (8.5X24X1.6)
0916008131
€ 2.00
5
0916112009
ref: 5
WASHER(12.6X24X1.9)
0916112009
€ 4.50
6
0931908036
ref: 6
BUSH(12X20X16)
0931908036
€ 23.50
7
4353027E00
ref: 7
HOLDER,FOOTREST
4353027E00
€ 56.50
8
0910610064
ref: 8
BOLT(10X28)
0910610064
€ 4.50
9
4351140C00
ref: 9
BAR,FOOTREST,R
4351140C00
€ 37.50
10
4352140C00
ref: 10
BAR,FOOTREST,L
4352140C00
€ 37.50
11
0920808010
ref: 11
PIN(8X33.2)
0920808010
€ 3.00
12
4357046E20
ref: 12
CUSHION,FR FOOTREST
4357046E20
€ 18.50
13-1
0944819020
ref: 13-1
MODEL S
SPRING
0944819020
€ 3.50
13-2
0944818022
ref: 13-2
MODEL T/V/W
SPRING
0944818022
€ 3.50
14
0918008149
ref: 14
SPACER(8.1X12X22)
0918008149
€ 7.00
15
0833211063
ref: 15
E.RING
0833211063
€ 2.00
16
4355046E00
ref: 16
RUBBER,FOOTREST
4355046E00
€ 16.50
17
4353446E00
ref: 17
BAR,FR FOOTREST NO.2
4353446E00
€ 21.00
18-1
4353631E00
ref: 18-1
MODEL S
BALANCER,FRONT FOOTREST,LOWER
€ 25.50
18-2
4353631E01
ref: 18-2
MODEL T/V/W
BALANCER,FR FOOTREST LWR
4353631E01
€ 25.50
19
0214205303
ref: 19
SCREW
0214205303
€ 2.50
20
0214205253
ref: 20
SCREW
0214205253
€ 2.50
21
4361023E00
ref: 21
MODEL S/T
BAR,PILLION FOOTREST,R
4361023E00
€ 33.00
22
4371023E00
ref: 22
MODEL S/T
BAR,PILLION FOOTREST,L
4371023E00
€ 33.00
23
0920808011
ref: 23
MODEL S/T
PIN
0920808011
€ 3.00
24
0833211063
ref: 24
MODEL S/T
E.RING
0833211063
€ 2.00
25
0944005005
ref: 25
SPRING
0944005005
€ 1.50
26
0611107004
ref: 26
BALL
0611107004
€ 1.50
27
4361133E00
ref: 27
MODEL V/W
BAR,PILLION FOOTREST,RIGHT
4361133E00
€ 23.50
28
4362133E00
ref: 28
MODEL V/W
BAR,PILLION FOOTREST,LEFT
4362133E00
€ 23.50
29
8725985510
ref: 29
MODEL V/W
PIN
8725985510
€ 4.50
30
0833211043
ref: 30
MODEL V/W
E-RING
0833211043
€ 2.00
31
0944005005
ref: 31
SPRING
0944005005
€ 1.50
32
0611107004
ref: 32
BALL
0611107004
€ 1.50
