STARTER CLUTCH

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

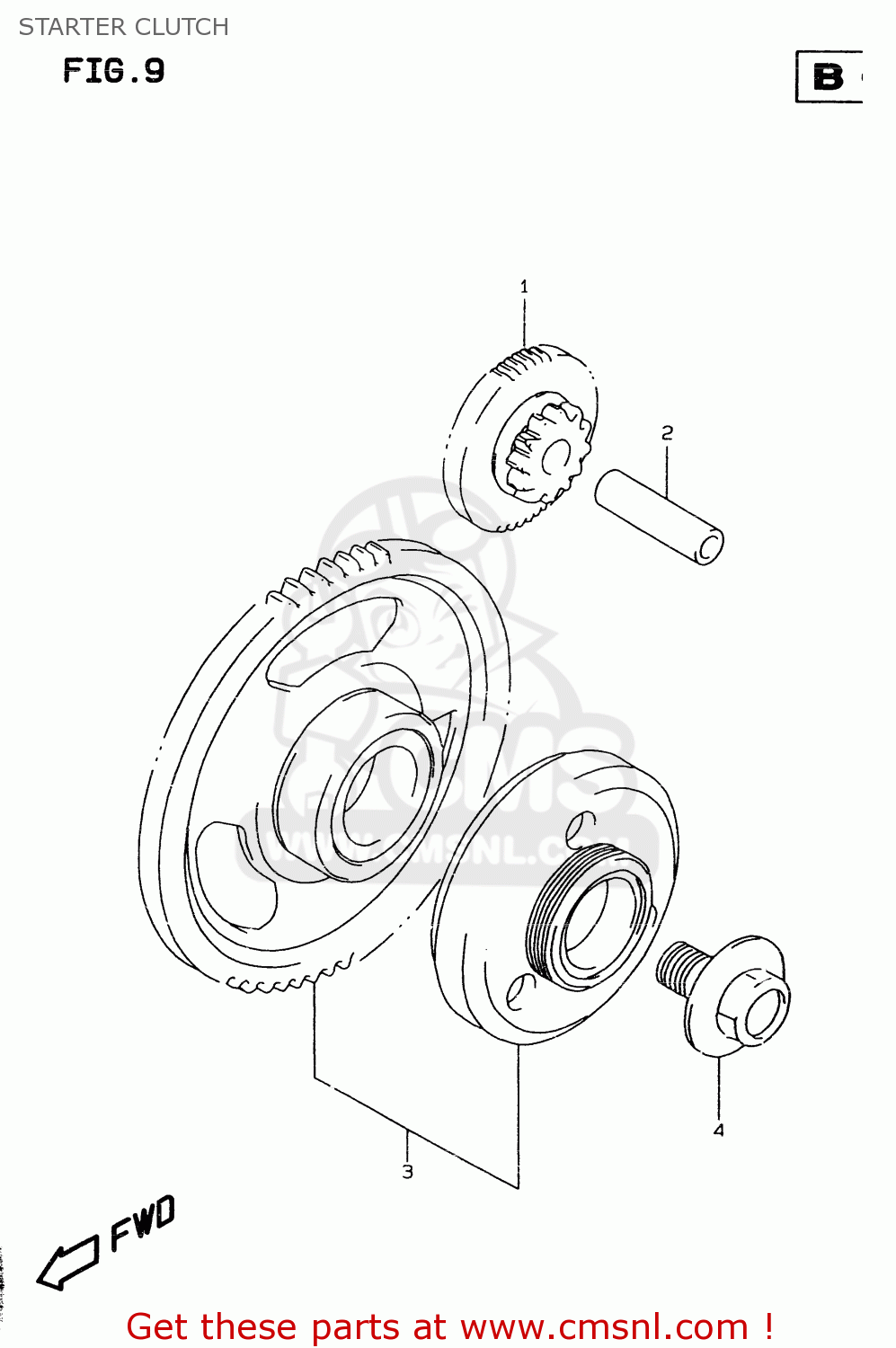

Starter clutch diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

STARTER CLUTCH GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

STARTER CLUTCH GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1261106B00
ref: 1

GEAR,STARTER IDLE(NT:12,53)

€ 68.50

2

0920611014
ref: 2

PIN(7X11X42)

€ 8.00

3

1260048811
ref: 3
<-12600-17811

CLUTCH SET,STARTER

€ 377.50

4

0910314005
ref: 4

BOLT(14X21)

€ 17.00
