HANDLEBAR (MODEL S)

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

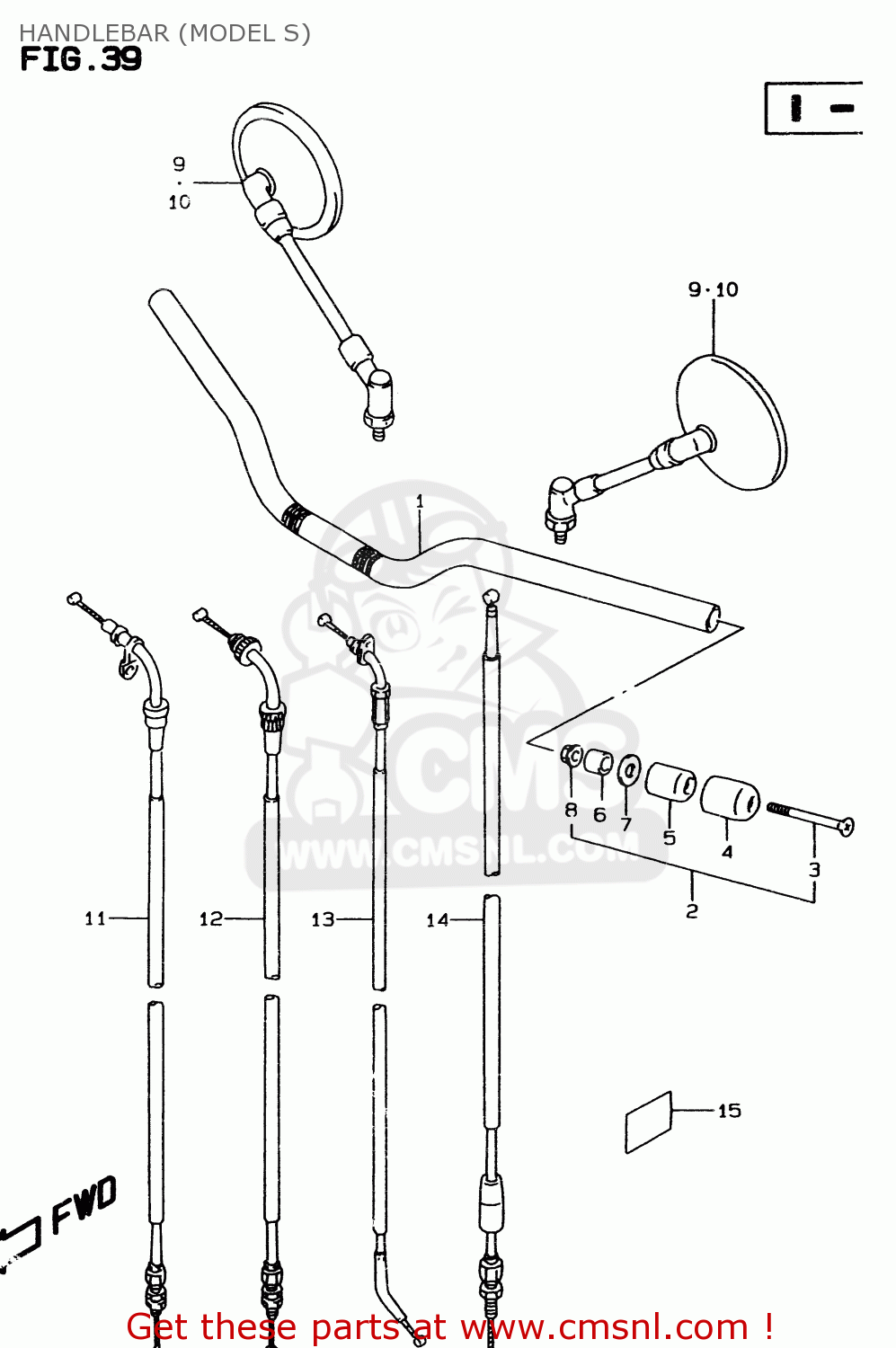

Handlebar (model s) diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

5611123E00
ref: 1

HANDLEBAR

€ 113.50

5620026850
ref: 2

BALANCER SET,HANDLEBAR

€ 95.50

0212206603
ref: 3

SCREW

€ 3.00

5627431300
ref: 4
<-56274-05350(BLACK)

CAP,BALANCER

€ 223.50

5627149400
ref: 5

BALANCER,HANDLE

€ 19.50

5627534401
ref: 6

SPACER,BALANCER

€ 2.50

5627244500
ref: 7

EXPANDER,HANDLE BALANCER

€ 3.00

0915906024
ref: 8

NUT

€ 2.00

5650038A70
ref: 9

MIRROR ASSY,RH

€ 356.00

5650038A80
ref: 10
E22,E25

MIRROR ASSY,RH

€ 356.00

5830026E00
ref: 11

CABLE ASSY,THROTTLE NO.1

€ 35.50

5830026E10
ref: 12

CABLE ASSY,THROTTLE NO.2

€ 32.00

5841026E00
ref: 13

CABLE COMP,STARTER

€ 23.50

5820026E00
ref: 14

CABLE ASSY,CLUTCH

€ 29.50

4726148B00
ref: 15

PROTECTOR,FRAME COVER FR

€ 5.50
