OIL COOLER

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

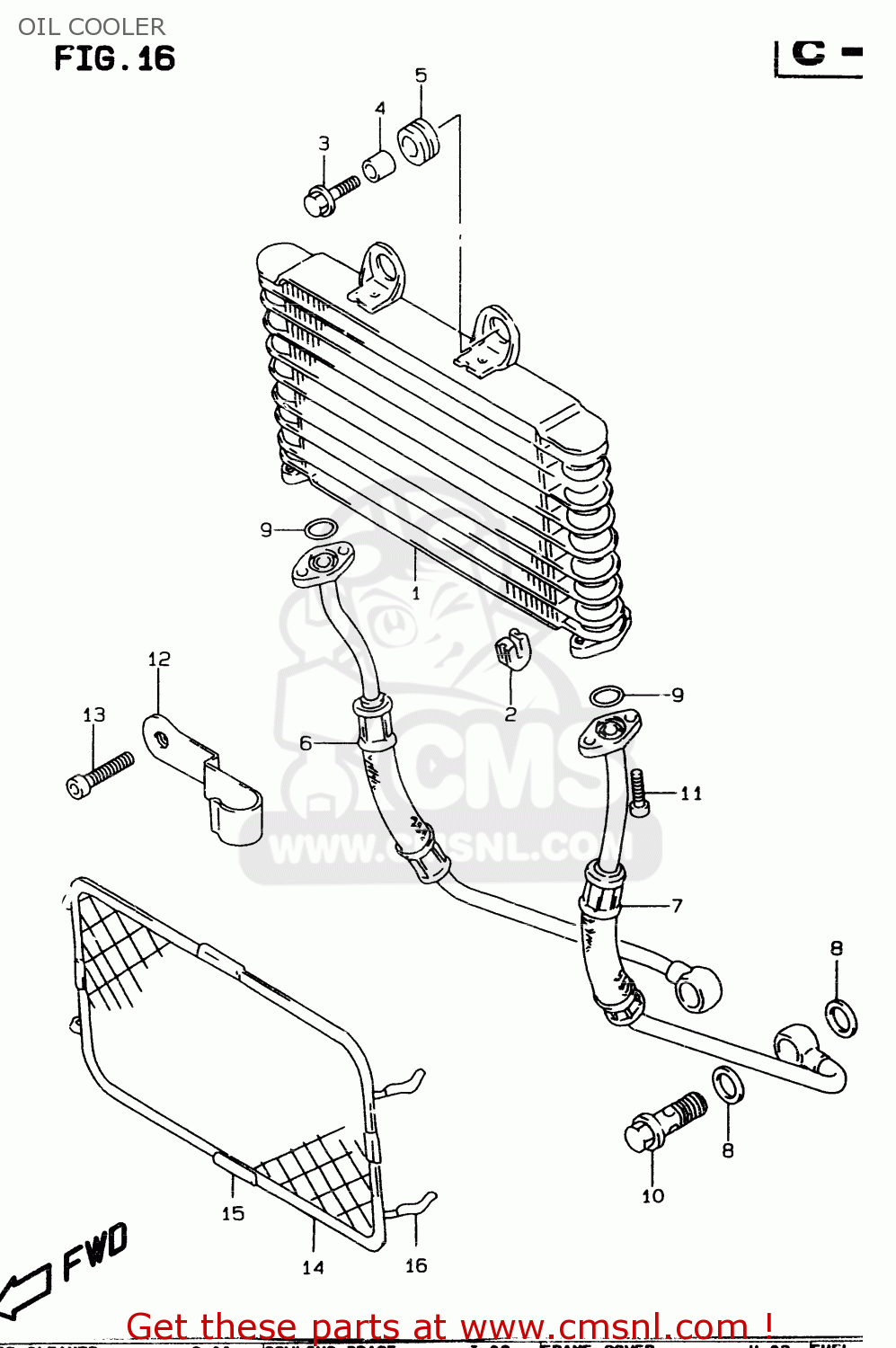

Oil cooler diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

OIL COOLER GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

OIL COOLER GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1660026E00
ref: 1

COOLER ASSY,OIL

€ 1,008.50

2

1662827A00
ref: 2

CUSHION,OIL COOLER NO.2

€ 3.00

3

0911606143
ref: 3

BOLT 6X20

€ 2.00

4

0918006310
ref: 4

SPACER(6.5X10X10)

€ 2.00

5

0932010015
ref: 5

CUSHION

€ 2.50

6-1

1646026E00
ref: 6-1
MODEL S/T

HOSE,OIL COOLER,RIGHT

€ 169.50

6-2

1646026E20
ref: 6-2
MODEL V/W

HOSE COMP,OIL COOLER,RIGHT

€ 169.50

7

1647026E00
ref: 7

HOSE,OIL COOLER,LEFT

€ 173.00

8

0916816002
ref: 8

GASKET(16X22X2) (NAS)

€ 2.00

9-1

0928012008
ref: 9-1
MODEL S/T

O RING(D:2.4,ID:12.3)

€ 3.00

9-2

0928012012
ref: 9-2
MODEL V/W

O RING(D:2.4,ID:11.8)

€ 5.00

10

0936016002
ref: 10

BOLT UNION

€ 12.00

11

0713006163
ref: 11

BOLT,OIL FILLE

€ 3.00

12

1649026E00
ref: 12
MODEL V/W

CLAMP,OIL HOSE

€ 6.00

13

0713006123
ref: 13
MODEL V/W

BOLT,STRANGER

€ 2.50

14

1665026E00
ref: 14
MODEL W

GUARD COMP,OIL COOLER

€ 59.00

15

1665427E00
ref: 15
MODEL W

PROTECTOR,CTR

€ 3.00

16

0935230503600
ref: 16
MODEL W,L:600->40

HOSE(3X5X600)

€ 8.00
