FRONT CALIPERS

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

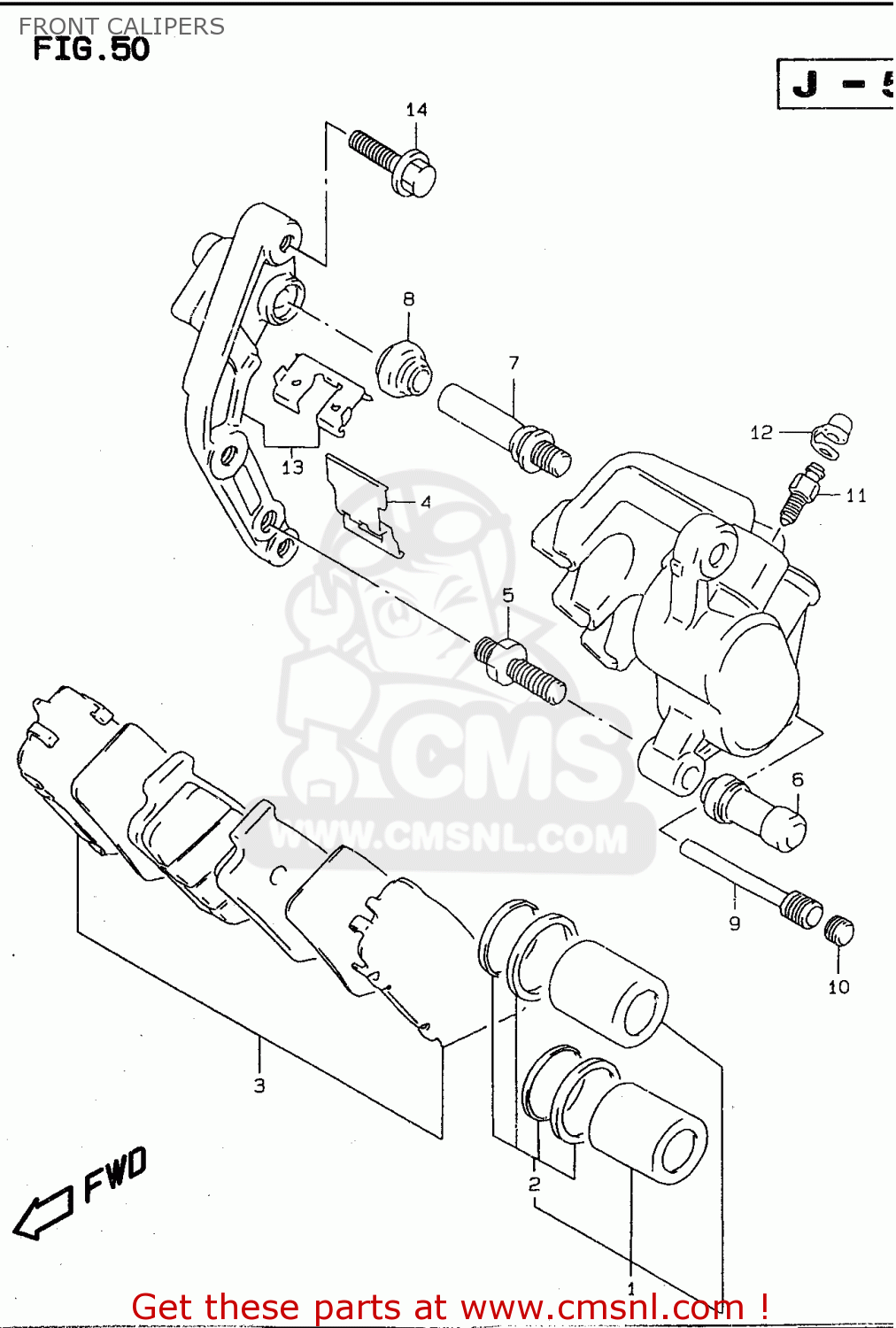

Front calipers diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

5910021E40
ref: 0

CALIPER ASSEMBLY,FRONT,RIGHT

€ 463.00

5930021E40
ref: 0

CALIPER ASSEMBLY,FRONT,LEFT

€ 409.00

5930021810
ref: 1

PISTON SET

€ 74.00

5930021860
ref: 2

SEAL SET,PISTON

€ 35.00

5930021850
ref: 3

PAD & RETAINER SET

€ 53.00

5911521E10
ref: 4

SPRING,PAD

€ 10.50

5938214500
ref: 5

PIN,BOLT

€ 7.50

5938613A00
ref: 6

BOOT

€ 6.50

5918721E10
ref: 7

PIN

€ 16.50

5930314500
ref: 8

BOOT

€ 5.50

5914521E10
ref: 9

PIN,HANGER

€ 15.00

5914621E10
ref: 10

PLUG,PIN

€ 6.50

5912101A00
ref: 11

BLEEDER

€ 8.50

5912201A00
ref: 12

CAP,BLEEDER

€ 4.50

13-1

5915121E10
ref: 13-1

BRACKET,R

€ 85.00

13-2

5935121E10
ref: 13-2

BRACKET,L

€ 99.00

0910308197
ref: 14

BOLT(8X30)

€ 2.00
