GEAR SHIFTING

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

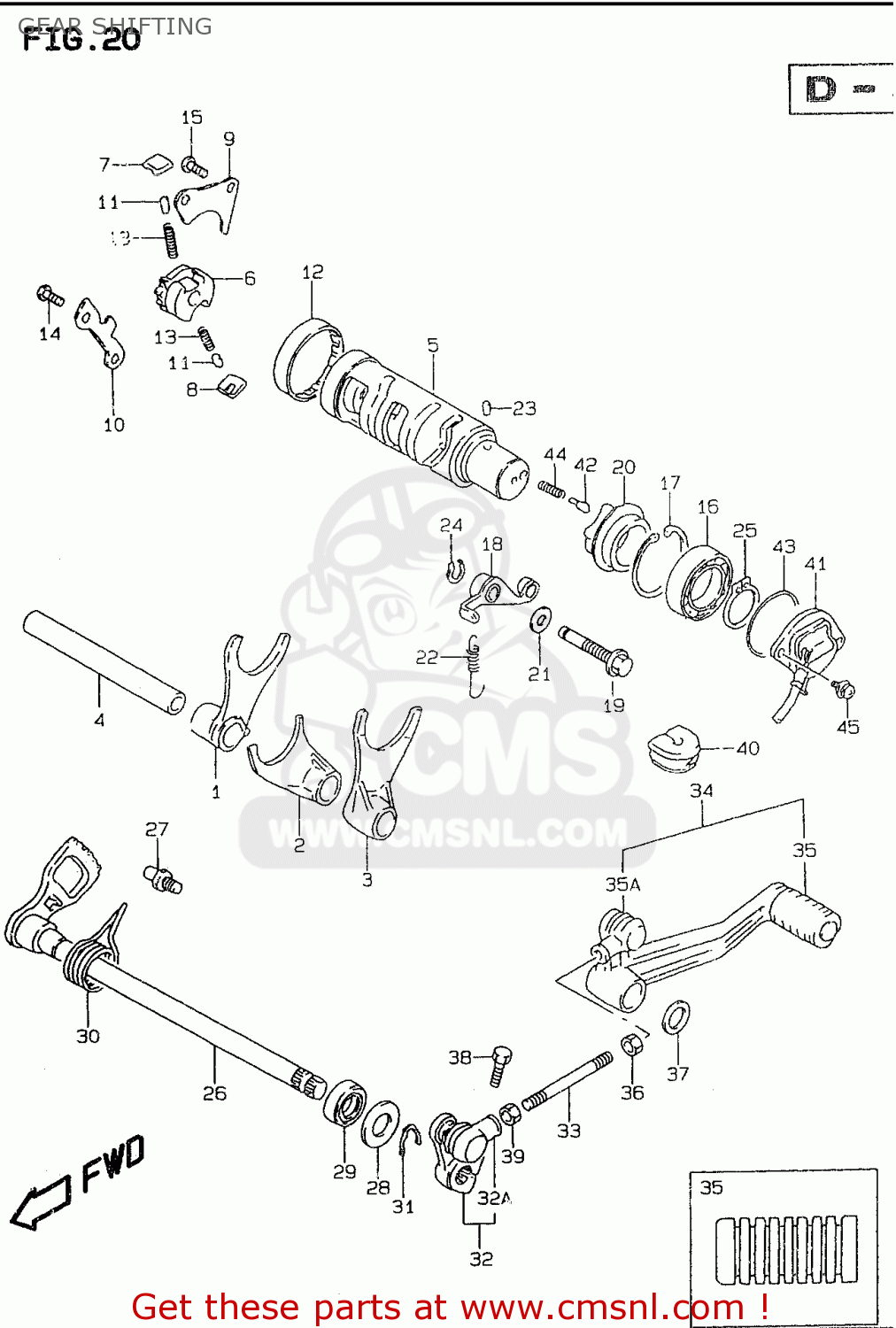

Gear shifting diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

GEAR SHIFTING GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37
GEAR SHIFTING GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37
GEAR SHIFTING GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
2521127A00
ref: 1
FORK,GEAR SHIFT NO.1
€ 108.50
2
2522127A01
ref: 2
FORK,GEAR SHIFT NO.2
2522127A01
€ 91.00
3
2523127A00
ref: 3
FORK,GEAR SHIFT NO.3
2523127A00
€ 88.50
4
2541127A00
ref: 4
SHAFT,GEAR SHIFT FORK(L:128)
2541127A00
€ 26.00
5
2531027A02
ref: 5
CAM,GEAR SHIFT
€ 214.50
6
2532231302
ref: 6
<-25322-31301
GEAR,GEARSHIFT CAM DRIVE
€ 15.50
7
2532334201
ref: 7
PAWL,GEAR SHIFT NO.1
2532334201
€ 7.00
8
2532434201
ref: 8
PAWL,GEAR SHIFT NO.2
2532434201
€ 7.00
9
2533131301
ref: 9
LIFTER,GEAR SHIFT PAWL
2533131301
€ 7.50
10
2534127A00
ref: 10
GUIDE,GEAR SHIFT CAM
2534127A00
€ 9.50
11
0926105003
ref: 11
PIN(5X8)
0926105003
€ 2.00
12
0926343001
ref: 12
BEARING(43X49X12)
0926343001
€ 32.50
13
0944004003
ref: 13
SPRING
0944004003
€ 2.00
14
0212206123
ref: 14
SCREW
0212206123
€ 3.50
15
0212206123
ref: 15
SCREW
0212206123
€ 3.50
16
0811369050
ref: 16
BEARING
0811369050
€ 42.00
17
0833141426
ref: 17
CIRCLIP
0833141426
€ 2.00
18
2535027A00
ref: 18
STOPPER,GEAR SHIFT CAM
2535027A00
€ 14.00
19
2535327A00
ref: 19
SHAFT,GEAR SHIFT CAM STOPPER
2535327A00
€ 5.50
20
2538138400
ref: 20
PLATE,STOPPER
2538138400
€ 22.00
21
0916810002
ref: 21
GASKET(10X14X3.6) (NAS)
0916810002
€ 3.00
22
0944309033
ref: 22
SPRING
0944309033
€ 7.50
23
0422104069
ref: 23
PIN
0422104069
€ 2.00
24
0833131086
ref: 24
CIRCLIP
0833131086
€ 2.00
25
0833131256
ref: 25
CIRCLIP
0833131256
€ 2.50
26
2551019C01
ref: 26
SHAFT,GEAR SHIFT
2551019C01
€ 91.50
27
2567101000
ref: 27
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.50
28-1
0916012020
ref: 28-1
MODEL T/V
WASHER (12.5X27X1.6)
0916012020
€ 2.00
28-2
0916012090
ref: 28-2
MODEL W
WASHER (12.5X26X1.6)
0916012090
€ 2.00
29
0928512002
ref: 29
OIL SEAL
0928512002
€ 7.00
30
0944426017
ref: 30
SPRING
0944426017
€ 6.00
31
0833131126
ref: 31
CIRCLIP,12 MM
0833131126
€ 2.00
32
2552022A00
ref: 32
ARM,GEAR SHIFT LINK
2552022A00
€ 50.50
32A
2552647000
ref: 32A
COVER,DUST
2552647000
€ 4.00
33
2552526E01
ref: 33
<-25525-26E00
ROD,GEAR SHIFT LINK
2552526E01
€ 16.00
34
2560010D10
ref: 34
<-25600-10D01
LEVER ASSY,GEAR SHIFT
2560010D10
€ 64.00
35
2565220C00
ref: 35
RUBBER,GEAR SHIFT PEDAL
2565220C00
€ 8.50
35A
2552647000
ref: 35A
COVER,DUST
2552647000
€ 4.00
36
0914006011
ref: 36
NUT
0914006011
€ 2.00
37
0916018022
ref: 37
18X24X1
WASHER(18X24X1)
0916018022
€ 3.00
38
0150006203
ref: 38
BOLT
0150006203
€ 2.50
39
0831000067
ref: 39
NUT
0831000067
€ 2.50
40
3388527A01
ref: 40
GROMMET,LEADWIRE
3388527A01
€ 22.00
41
3772048B00
ref: 41
TERMINAL BASE ASSY,NEUTRAL
3772048B00
€ 62.00
42
0920905011
ref: 42
PIN(5X15.5)
0920905011
€ 2.00
43
0928035006
ref: 43
O RING(D:2.4,ID:35.5)
0928035006
€ 4.50
44
0944004010
ref: 44
SPRING
0944004010
€ 2.00
45
0211275163
ref: 45
SCREW
0211275163
€ 2.50
