RIDER HANDLE

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

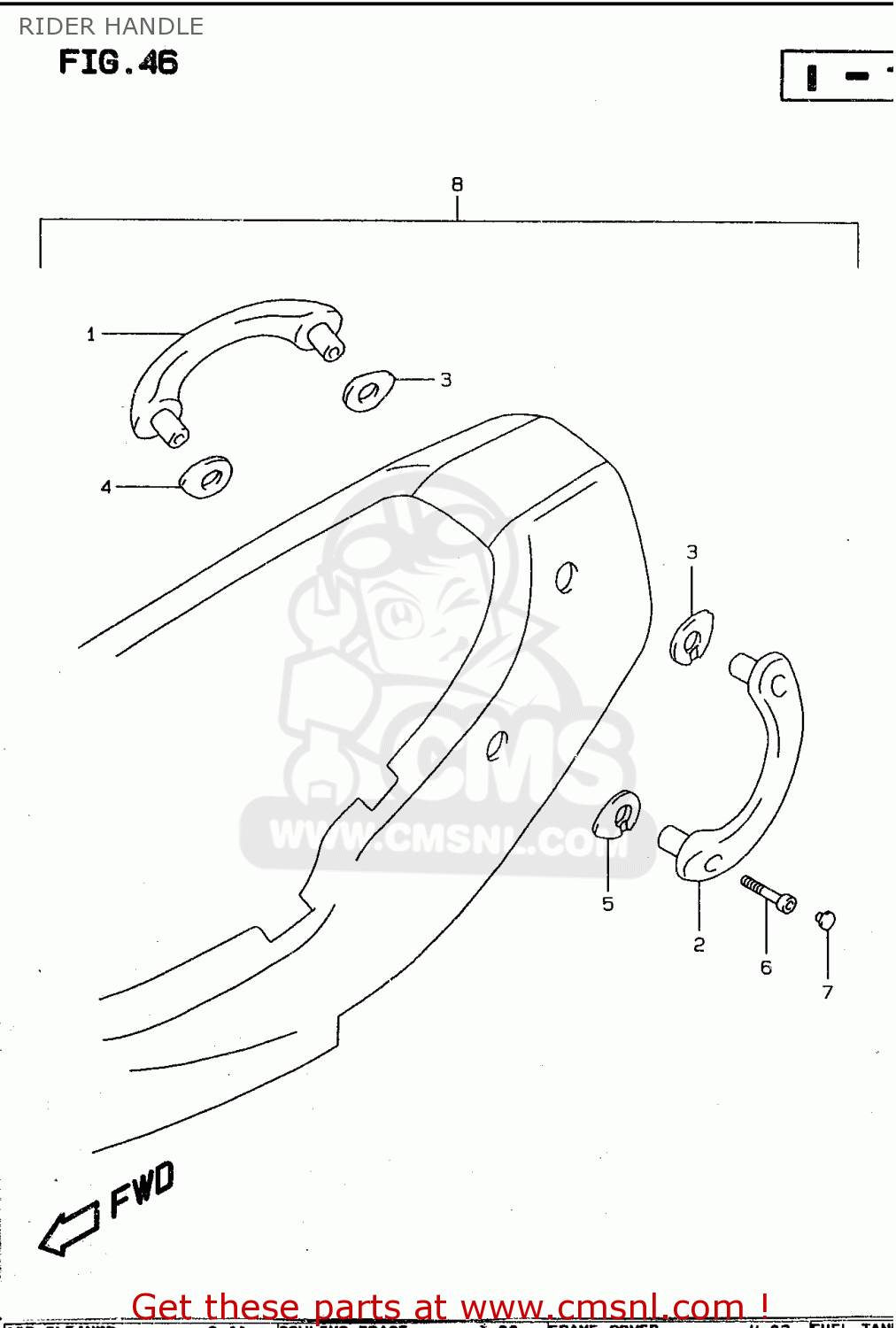

Rider handle diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

RIDER HANDLE GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

RIDER HANDLE GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1-1

4621126E00019
ref: 1-1
GSF600ST/SUT

HANDLE,PILLION RIDER,R

€ 87.50

1-2

4621126E0035W
ref: 1-2
GSF600SV/SUV MODEL W

HANDLE,PILLION RIDER,R

€ 83.00

2-1

4622126E00019
ref: 2-1
GSF600ST/SUT

HANDLE,PILLION RIDER,L

€ 87.50

2-2

4622126E0035W
ref: 2-2
GSF600SV/SUV MODEL W

HANDLE,PILLION RIDER,L

€ 101.00

3

4623626E00
ref: 3
GSF600ST/SUT/SV/SUV

CUSHION,PILLION HANDLE UPR

€ 7.50

4

4623826E00
ref: 4
GSF600ST/SUT/SV/SUV

CUSHION,PILLION HANDLE LWR,R

€ 14.00

5

4623926E00
ref: 5
GSF600ST/SUT/SV/SUV

CUSHION,PILLION HANDLE LWR,L

€ 7.50

6

0713008453
ref: 6
GSF600ST/SUT/SV/SUV

BOLT

€ 3.00

7

0925006004
ref: 7
GSF600ST/SUT/SV/SUV

CAP(OD:14.5)

€ 1.50

8-1

4620026810019
ref: 8-1
OPT GSF600S/US/T/UT

HANDLE SET,PILLION RIDER(BLACK

€ 159.50

8-2

462002681035W
ref: 8-2
OPT GSF600V/UV

HANDLE SET,PILLION RIDER(GRAY)

€ 154.50
