MUFFLER

GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

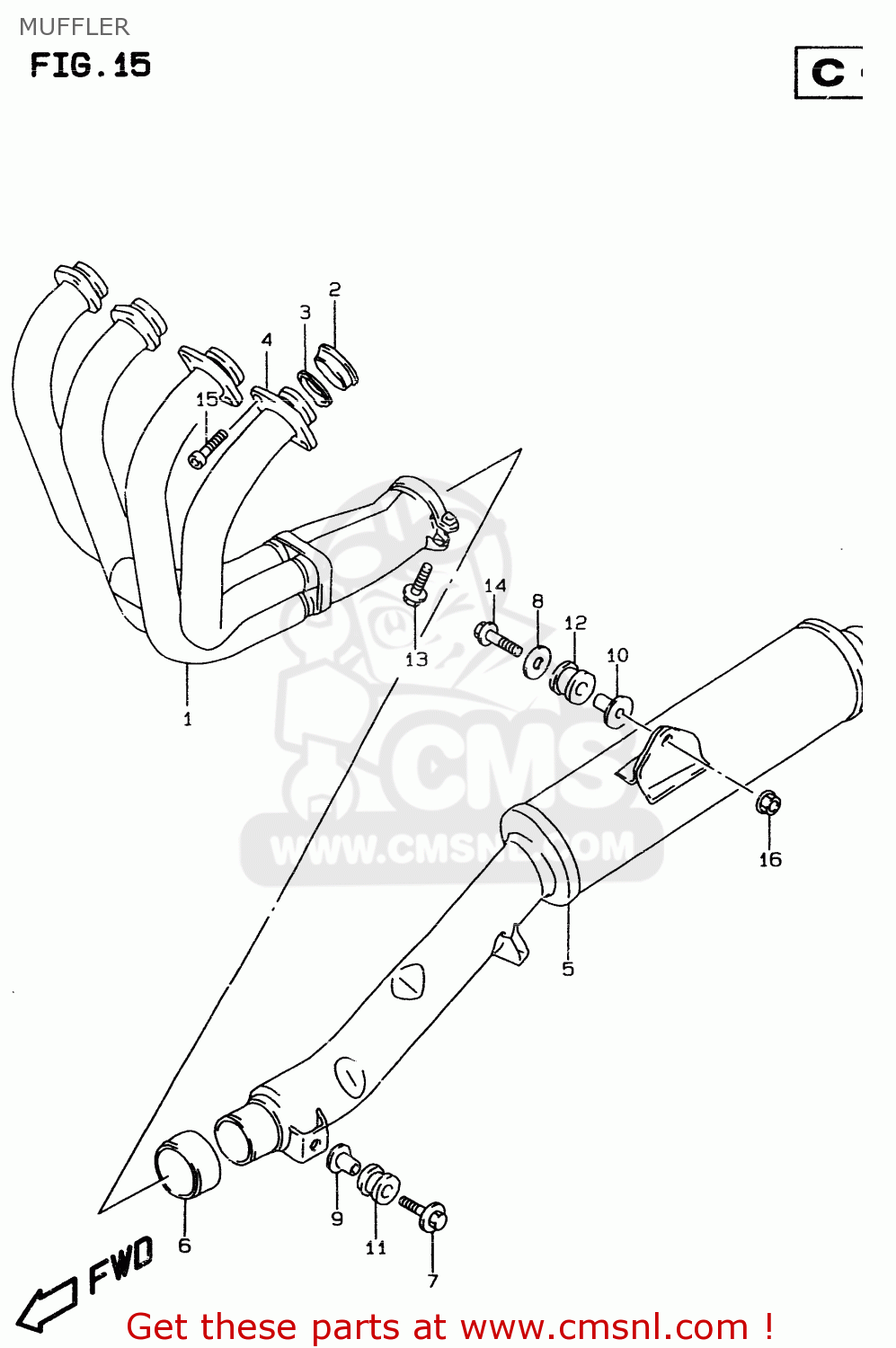

Muffler diagram GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

MUFFLER GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

MUFFLER GSF600 1997 (V) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

1410026E00
ref: 1

EXHAUST

€ 1,157.00

2

1415527A00
ref: 2
~F.NO.GN77A-101171 ~

PLATE,EXHAUST PIPE

€ 3.50

3

1418118C00
ref: 3

GASKET,EXHAUST (NAS)

€ 6.50

4

1418226D00
ref: 4
~F.NO.GN77A-101171 ~

CLAMP,EXHAUST PIPE

€ 21.00

5

1431026E00H01
ref: 5

BODY,MUFFLER

€ 781.50

6

1477127E00
ref: 6

CONNECTOR,MUFFLER

€ 29.00

7

0911808068
ref: 7

BOLT 8X40

€ 7.50

8-1

0916008106
ref: 8-1
MODEL S/T/V

WASHER (8.1X33X1.6)

€ 3.00

8-2

0916008140
ref: 8-2
MODEL W

WASHER (8.5X33X1.6)

€ 3.00

9

0918008152
ref: 9

SPACER(8.6X12X24.2)

€ 6.00

10

0918008156
ref: 10

SPACER(8.6X12X27.1)

€ 6.50

11

0932012048
ref: 11

CUSHION

€ 5.00

12

0932012049
ref: 12

CUSHION

€ 9.00

13

0155008403
ref: 13

BOLT

€ 3.50

14

0155008457
ref: 14

BOLT

€ 4.00

15

0713008257
ref: 15

BOLT

€ 3.50

16-1

0836125083
ref: 16-1
GREEN

NUT

€ 2.50

16-2

0836125088
ref: 16-2
WHITE

NUT

€ 2.50
