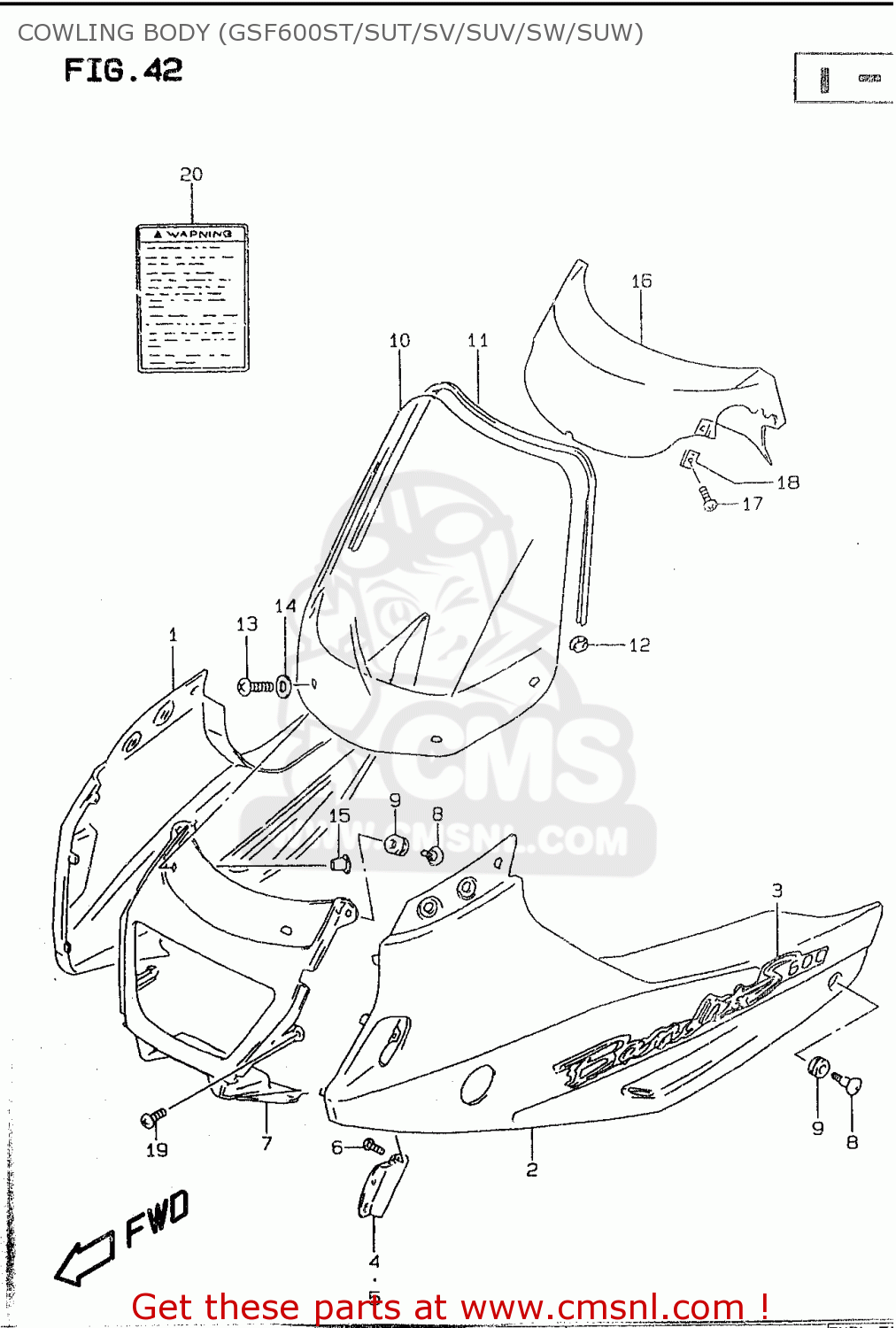

COWLING BODY (GSF600ST/SUT/SV/SUV/SW/SUW)

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

Cowling body (gsf600st/sut/sv/suv/sw/suw) diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

COWLING BODY (GSF600ST/SUT/SV/SUV/SW/SUW) GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
COWLING BODY (GSF600ST/SUT/SV/SUV/SW/SUW) GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
COWLING BODY (GSF600ST/SUT/SV/SUV/SW/SUW) GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1-1
9440126E1028V
ref: 1-1
MODEL S/T/V
COWLING ASSY,SIDE,R
€ 261.50
1-2
9440126E000WP
ref: 1-2
MODEL T
9440126E000WP
1-3
9440126E001ZV
ref: 1-3
MODEL T
COWLING ASSY,SIDE,R
€ 191.00
1-4
9440126E00Y0V
ref: 1-4
MODEL V/W
COWLING ASSY,SIDE,R
€ 241.50
1-5
9440126E0033J
ref: 1-5
MODEL V/W
COWLING ASSY,SIDE,R
9440126E0033J
€ 185.50
1-6
9440126E10Y3H
ref: 1-6
MODEL W
COWLING ASSY,SIDE,R
9440126E10Y3H
€ 246.00
2-1
9440226E1028V
ref: 2-1
MODEL S/T/V
COWLING ASSY,SIDE,L
€ 227.50
2-2
9440226E000WP
ref: 2-2
MODEL T
COWLING ASSEMBLY,SIDE,LEFT
€ 225.50
2-3
9440226E001ZV
ref: 2-3
MODEL T
COWLING, SIDE LH (GREEN)
9440226E001ZV
€ 225.50
2-4
9440226E00Y0V
ref: 2-4
MODEL V/W
COWLING ASSY,SIDE,L
€ 227.50
2-5
9440226E0033J
ref: 2-5
MODEL V/W
COWLING ASSY,SIDE,L
€ 241.50
2-6
9440226E10Y3H
ref: 2-6
MODEL W
COWLING ASSEMBLY,SIDE,LEFT (ORANGE)
9440226E10Y3H
€ 214.50
3-1
6868126E00E0D
ref: 3-1
FOR 28V
EMBLEM,COWLING SIDE
6868126E00E0D
€ 15.50
3-2
6868126E00E0E
ref: 3-2
FOR 0WP,33J
EMBLEM,COWLING SIDE
6868126E00E0E
€ 18.50
3-3
6868126E00F2R
ref: 3-3
FOR 1ZV,Y3H
EMBLEM,COWLING SIDE
6868126E00F2R
€ 15.00
3-4
6868126E00G8A
ref: 3-4
FOR Y0V
EMBLEM,COWLING SIDE
€ 18.50
4
9441326E00
ref: 4
COVER,COWLING INNER,R
9441326E00
€ 15.00
5
9442326E00
ref: 5
COVER,COWLING INNER,L
9442326E00
€ 11.00
6
0354105103
ref: 6
SCREW 5X10
0354105103
€ 1.50
7-1
9440326E1028V
ref: 7-1
MODEL S/T/V
COWLING ASSY,CTR
9440326E1028V
€ 77.00
7-2
9440326E000WP
ref: 7-2
MODEL T
COWLING ASSY,CTR
9440326E000WP
€ 77.00
7-3
9440326E001ZV
ref: 7-3
MODEL T
COWLING ASSY,CTR
9440326E001ZV
€ 77.00
7-4
9440326E00Y0V
ref: 7-4
MODEL V/W
COWLING ASSY,CTR
9440326E00Y0V
€ 73.00
7-5
9440326E0033J
ref: 7-5
MODEL V/W
COWLING ASSY,CTR
9440326E0033J
€ 73.00
7-6
9440326E10Y3H
ref: 7-6
MODEL W
COWLING ASSY,CTR
9440326E10Y3H
€ 77.00
8
0913906087
ref: 8
SCREW(6X20)
0913906087
€ 4.00
9
0932009016
ref: 9
CUSHION
0932009016
€ 2.50
10
9461026E01
ref: 10
WINDSCREEN SET
9461026E01
€ 229.00
11
9463133C01
ref: 11
MOLDING WINDSCREEN
9463133C01
€ 10.00
12
9463721E00
ref: 12
CLIP,WINDSCREEN MOLDING
9463721E00
€ 4.00
13
0913905025
ref: 13
SCREW(5X14)
0913905025
€ 2.00
14
0832201053
ref: 14
WASHER
0832201053
€ 2.50
15
0915905019
ref: 15
NUT
0915905019
€ 5.50
16
9464026E01
ref: 16
PANEL,INNER
€ 55.50
17
0324105123
ref: 17
SCREW L:12
0324105123
€ 1.50
18
0914805038
ref: 18
NUT
0914805038
€ 2.50
19
0214215163
ref: 19
SCREW
€ 3.00
20-1
6861248B00
ref: 20-1
LABEL (WARNING SCREEN)
6861248B00
€ 6.50
20-2
6861248B10
ref: 20-2
E4,E34
LABEL (WARNING SCREEN)
6861248B10
€ 6.50
20-3
6861248B20
ref: 20-3
E18,E22
LABEL (WARNING,SCREEN)
6861248B20
€ 6.50
