CRANKCASE COVER

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

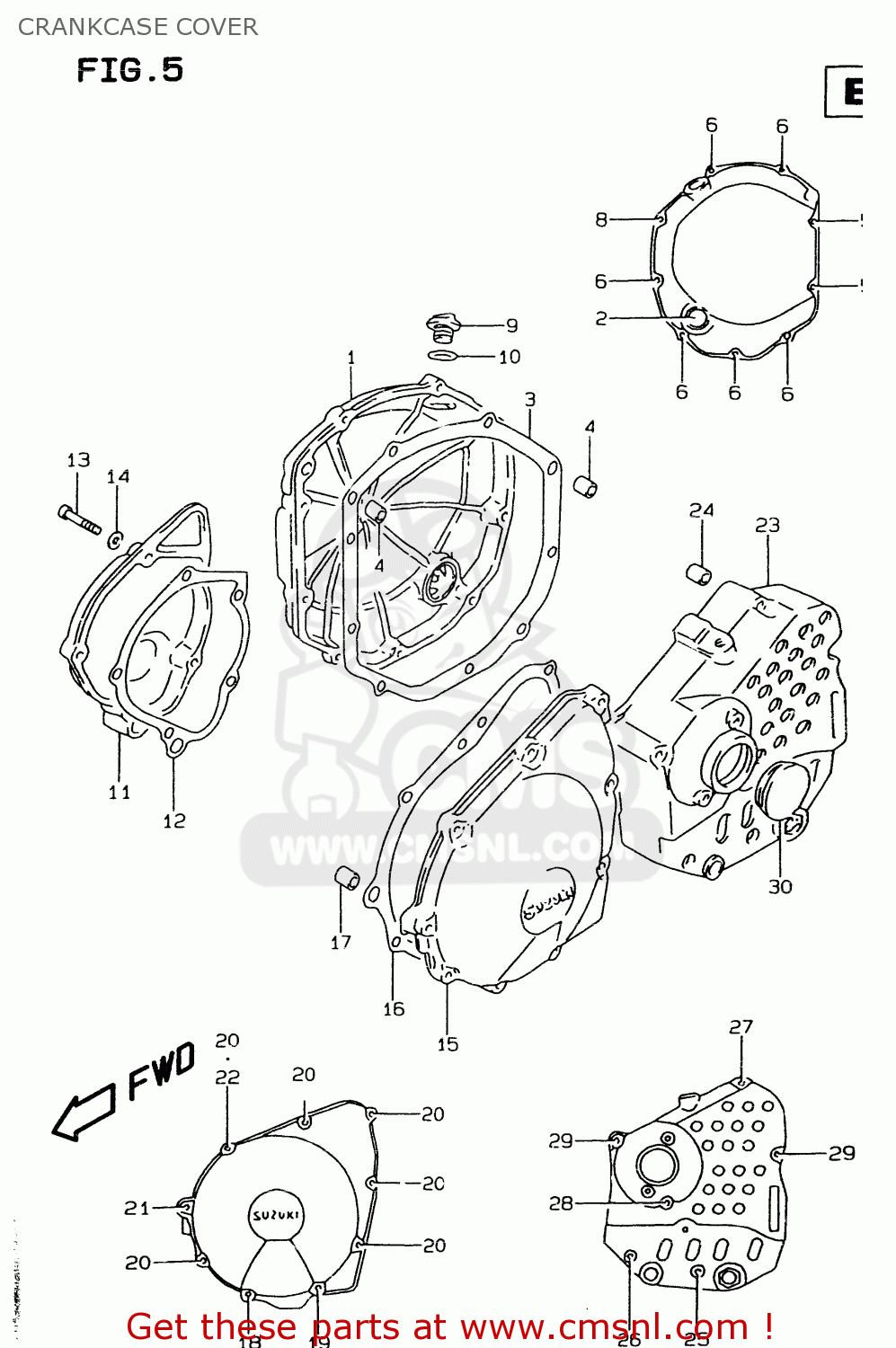

Crankcase cover diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

CRANKCASE COVER GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
CRANKCASE COVER GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
CRANKCASE COVER GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1
1134026E00
ref: 1
COVER,CLUTCH
1134026E00
€ 207.50
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
1197133210
€ 13.50
3
1148227A20
ref: 3
GASKET,CL COVER (NAS)
1148227A20
€ 18.00
4
0421109189
ref: 4
PIN
0421109189
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
6
0713006253
ref: 6
BOLT,CL.COVER
0713006253
€ 3.00
7
0713006303
ref: 7
BOLT
0713006303
€ 3.00
8
0713006353
ref: 8
BOLT
€ 3.50
9
0925920008
ref: 9
PLUG
0925920008
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
0928017003
€ 2.00
11
1138126D10
ref: 11
COVER,SIGNAL GENERATOR
€ 62.00
12
1149127A30
ref: 12
GASKET,SIGNAL GEN COVER (NAS)
1149127A30
€ 8.00
13
0910606082
ref: 13
BOLT(6X22)
0910606082
€ 3.00
14
0916806024
ref: 14
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
15
1135126E00
ref: 15
COVER,STARTER GEAR
1135126E00
€ 156.50
16
1148327A20
ref: 16
GASKET,STARTER GEAR COVER (NAS)
1148327A20
€ 14.50
17
0920611017
ref: 17
PIN(8.4X11X20)
0920611017
€ 6.50
18
0713006163
ref: 18
BOLT,OIL FILLE
0713006163
€ 3.00
19
0713006203
ref: 19
BOLT,CRKCASE,R
0713006203
€ 3.00
20
0713006253
ref: 20
BOLT,CL.COVER
0713006253
€ 3.00
21
0713006403
ref: 21
BOLT
0713006403
€ 3.50
22
0916806024
ref: 22
GASKET(5.8X11X1.2) (NAS)
0916806024
€ 2.00
23-1
1136126E00
ref: 23-1
MODEL S/T
COVER,ENGINE SPROCKET
€ 159.50
23-2
1136126E01
ref: 23-2
MODEL V/W
COVER,ENGINE SPROCKET
1136126E01
€ 159.50
24
0421109129
ref: 24
PIN
0421109129
€ 2.00
25
0713006403
ref: 25
BOLT
0713006403
€ 3.50
26
0713006303
ref: 26
BOLT
0713006303
€ 3.00
27
0713006503
ref: 27
BOLT,CL.COVER
0713006503
€ 3.00
28
0713006653
ref: 28
BOLT
0713006653
€ 4.00
29
0713006703
ref: 29
BOLT
0713006703
€ 4.00
30
0925030003
ref: 30
CAP(OD:36)
0925030003
€ 4.00
