CYLINDER HEAD

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

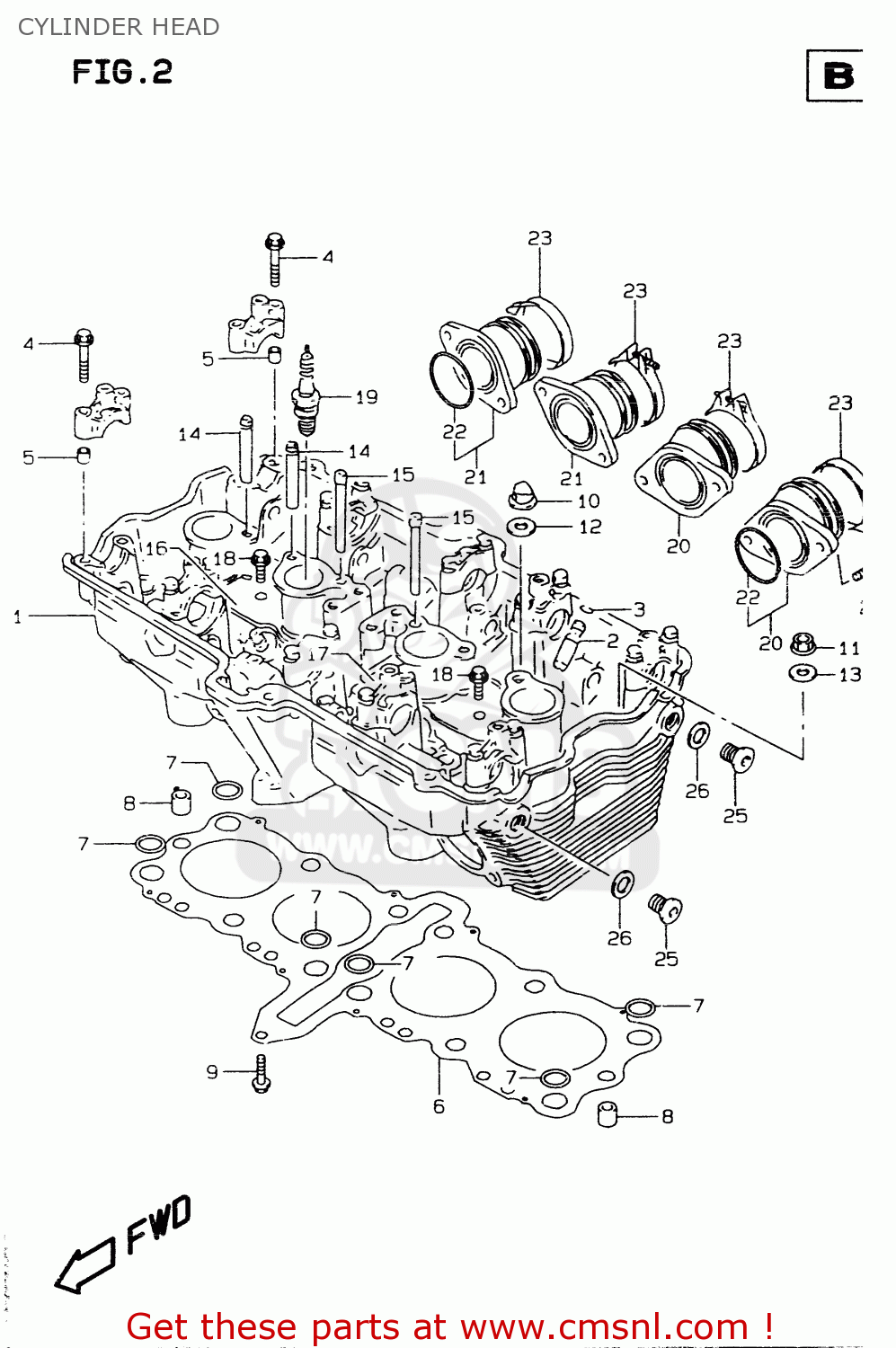

Cylinder head diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

CYLINDER HEAD GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
CYLINDER HEAD GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
CYLINDER HEAD GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1-1
1110026E00
ref: 1-1
HEAD ASSEMBLY,CYLINDER
€ 1,508.50
1-2
1110026E10
ref: 1-2
E18
HEAD ASSY,CYLINDER
€ 1,508.50
2
1111527A70
ref: 2
GUIDE,VALVE
1111527A70
€ 43.00
3
0938110004
ref: 3
RING,SNAP
0938110004
€ 1.50
4
0910306026
ref: 4
BOLT(6X39)
0910306026
€ 2.00
5
0920608001
ref: 5
PIN(6.2X8X11)
0920608001
€ 2.00
6
1114119C03
ref: 6
GASKET,CYLINDER HEAD (NAS)
1114119C03
€ 63.00
7
0928012013
ref: 7
O RING(D:2.6,ID:12.1)
0928012013
€ 7.50
8
0421111189
ref: 8
PIN
0421111189
€ 2.00
9
0155006303
ref: 9
BOLT
0155006303
€ 2.50
10
0915910054
ref: 10
NUT
0915910054
€ 7.50
11
0831610103
ref: 11
NUT
0831610103
€ 2.00
12
0916810031
ref: 12
GASKET(10.2X20X2).3 (NAS)
0916810031
€ 2.00
13
0916010060
ref: 13
WASHER (10.5X22X2.3)
0916010060
€ 2.50
14
1113127A00
ref: 14
PIPE,OIL NO.1
1113127A00
€ 6.00
15
1113327A00
ref: 15
PIPE,OIL NO.3
1113327A00
€ 7.00
16
1113527A02
ref: 16
PLATE,OIL PIPE,R
1113527A02
€ 4.00
17
1113627A02
ref: 17
PLATE,OIL PIPE,L
1113627A02
€ 4.00
18
0155006123
ref: 18
BOLT
0155006123
€ 2.50
19-1
0948200410
ref: 19-1
PLUG,SPARK(CR9EK)
0948200410
€ 10.50
19-2
0948200411
ref: 19-2
PLUG,SPARK(U27ETR)
€ 8.50
19-3
0948200412
ref: 19-3
OPT
PLUG,SPARK(CR8EK)
0948200412
€ 11.00
19-4
0948200413
ref: 19-4
OPT
PLUG,SPARK(U24ETR)
0948200413
€ 11.00
19-5
0948200462
ref: 19-5
OPT
PLUG,SPARK(CR10EK)
0948200462
€ 10.50
19-6
0948200463
ref: 19-6
OPT
PLUG,SPARK(U31ETR)
0948200463
€ 10.50
20
1310126E01
ref: 20
PIPE ASSY,INTAKE,L
1310126E01
€ 39.00
21
1310326E01
ref: 21
PIPE ASSY,INTAKE,R
1310326E01
€ 39.00
22
0928040010
ref: 22
O RING(D:2.4,ID:39.7)
0928040010
€ 3.50
23
0940248208
ref: 23
CLAMP
0940248208
€ 4.50
24
0712006163
ref: 24
BOLT MAGNETO S
0712006163
€ 2.50
25
0924814010
ref: 25
PLUG
0924814010
€ 5.00
26
0916814002
ref: 26
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
