CRANKCASE

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

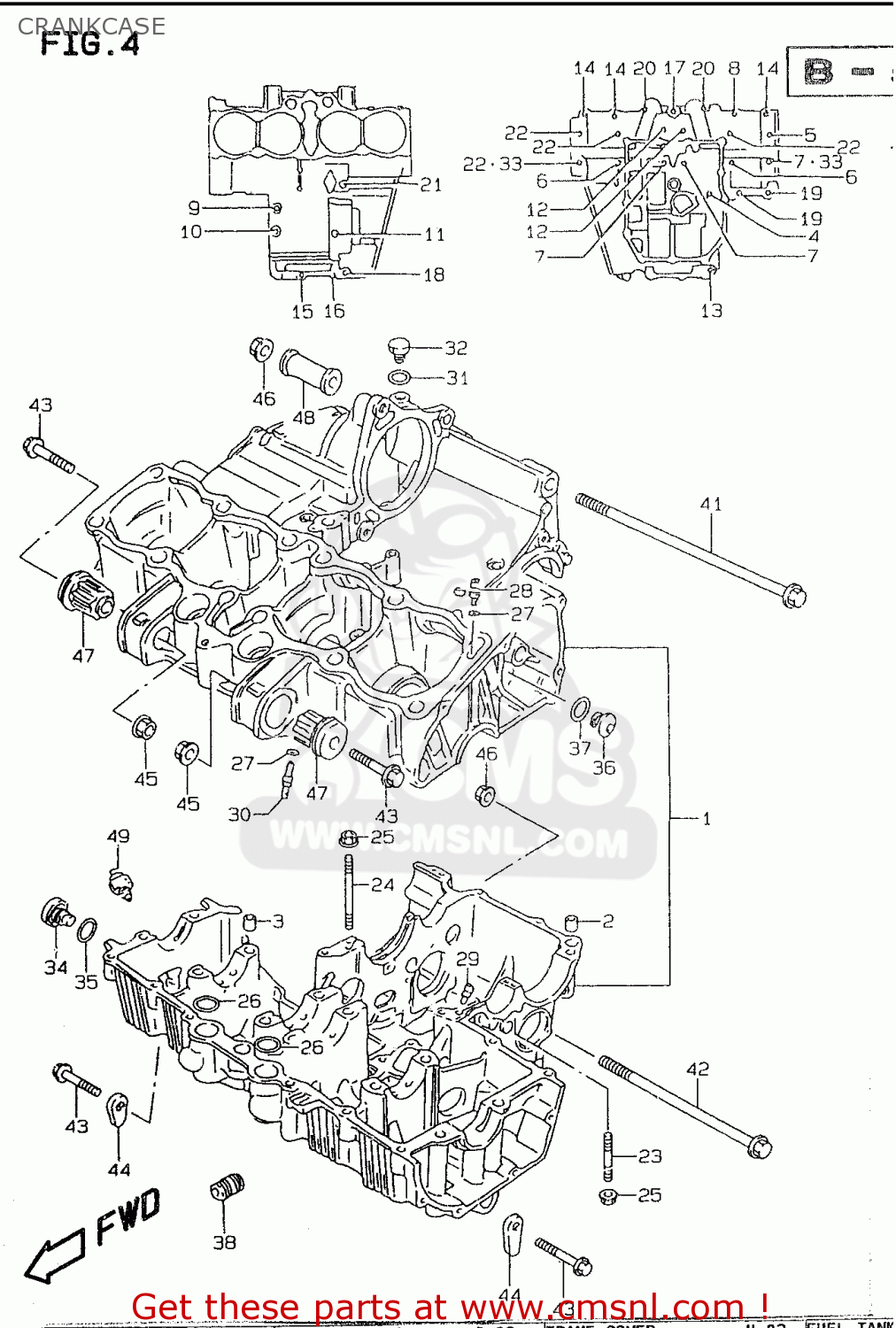

Crankcase diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

CRANKCASE GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
CRANKCASE GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
CRANKCASE GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37
prices are in EUR
ref
part #
description
quantity
1-1
1130126871
ref: 1-1
MODEL S/T
CRANKCASE SET
1130126871
€ 1,616.00
1-2
1130126872
ref: 1-2
MODEL V
CRANKCASE SET
€ 1,616.00
1-3
1130126873
ref: 1-3
MODEL W
CRANKCASE SET
1130126873
€ 1,616.00
2
0920613004
ref: 2
PIN(10.4X13X22)
0920613004
€ 3.00
3
0920611017
ref: 3
PIN(8.4X11X20)
0920611017
€ 6.50
4
0910306163
ref: 4
BOLT(6X105)
0910306163
€ 4.00
5
0910308097
ref: 5
BOLT(8X105)
0910308097
€ 3.00
6
0910308182
ref: 6
BOLT(8X125)
0910308182
€ 4.50
7
0910308098
ref: 7
BOLT(8X115)
0910308098
€ 3.00
8
0155006353
ref: 8
BOLT
0155006353
€ 2.50
9
0713006403
ref: 9
BOLT
0713006403
€ 3.50
10
0713006503
ref: 10
BOLT,CL.COVER
0713006503
€ 3.00
11
0713006653
ref: 11
BOLT
0713006653
€ 4.00
12
0713008653
ref: 12
BOLT
€ 3.50
13
0155008603
ref: 13
BOLT
€ 3.50
14
0155006353
ref: 14
BOLT
0155006353
€ 2.50
15-1
0155006403
ref: 15-1
MODEL S/T/V
BOLT
0155006403
€ 2.00
15-2
0155006407
ref: 15-2
MODEL W
BOLT
0155006407
€ 2.50
16
0155006407
ref: 16
BOLT
0155006407
€ 2.50
17
0155006503
ref: 17
BOLT
0155006503
€ 2.00
18
0155006603
ref: 18
BOLT
0155006603
€ 2.50
19
0155006553
ref: 19
BOLT, HYDRAULIC UNIT NO.2
0155006553
€ 2.00
20
0155006703
ref: 20
BOLT
€ 2.50
21
0155006803
ref: 21
BOLT
€ 2.50
22-1
0910308105
ref: 22-1
MODEL S/T/V
BOLT(8X95)
0910308105
€ 3.00
22-2
0910308066
ref: 22-2
MODEL W
BOLT(8X95)
€ 3.00
23
0142106408
ref: 23
STUD BOLT
€ 2.50
24
0142106608
ref: 24
STUD BOLT
€ 2.50
25
0831610063
ref: 25
NUT
0831610063
€ 2.50
26
0928021008
ref: 26
O RING(D:2.5,ID:21)
0928021008
€ 2.00
27
0928004004
ref: 27
O RING(D:1.2,ID:4)
0928004004
€ 2.00
28
0949314002
ref: 28
JET,AIR
0949314002
€ 8.00
29
0949324010
ref: 29
JET
0949324010
€ 12.00
30
0949380008
ref: 30
JET,OIL GALLERY
0949380008
€ 8.50
31
0916812002
ref: 31
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
32
0924712103
ref: 32
PLUG(12X9)
0924712103
€ 3.50
33
0916808021
ref: 33
GASKET(8.5X17X2.3) (NAS)
0916808021
€ 3.00
34
0924816003
ref: 34
PLUG
0924816003
€ 16.50
35
0928017002
ref: 35
O RING(D:2.4,ID:16.8)
0928017002
€ 3.50
36-1
0924814005
ref: 36-1
MODEL S/T
PLUG,14X12
0924814005
€ 5.00
36-2
0924814010
ref: 36-2
MODEL V/W
PLUG
0924814010
€ 5.00
37
0916814002
ref: 37
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
38
1659106B00
ref: 38
UNION,OIL STAND
1659106B00
€ 6.00
39
1222819C00
ref: 39
->12228-43414 SEE IL
PLATE,CRANK THRUST
1222819C00
€ 9.50
40-1
1222843411
ref: 40-1
SEE ILLUSTRATION ON
PLATE,CRANK THRUST
1222843411
€ 8.50
40-2
1222843412
ref: 40-2
PLATE,CRANK THRUST
1222843412
€ 8.50
40-3
1222843413
ref: 40-3
PLATE,CRANK THRUST
1222843413
€ 8.00
40-4
1222843414
ref: 40-4
PLATE,CRANK THRUST
1222843414
€ 9.50
40-5
1222843415
ref: 40-5
BEARING,THRUST
1222843415
€ 8.50
40-6
1222843416
ref: 40-6
PLATE,CRANK THRUST
1222843416
€ 9.50
41
0910310136
ref: 41
BOLT(10X180)
0910310136
€ 11.50
42
0910310122
ref: 42
BOLT(10X130)
0910310122
€ 9.50
43
0158010553
ref: 43
BOLT
€ 3.00
44
0915910020
ref: 44
NUT
0915910020
€ 7.50
45
0831610103
ref: 45
NUT
0831610103
€ 2.00
46
0915910058
ref: 46
NUT
0915910058
€ 4.00
47
1168106B00
ref: 47
BUSH,ENGINE MOUNTING
1168106B00
€ 26.00
48
1161020C00
ref: 48
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
49
3782033D00
ref: 49
SWITCH ASSEMBLY,OIL PRESSURE
€ 29.00
