STEERING STEM

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

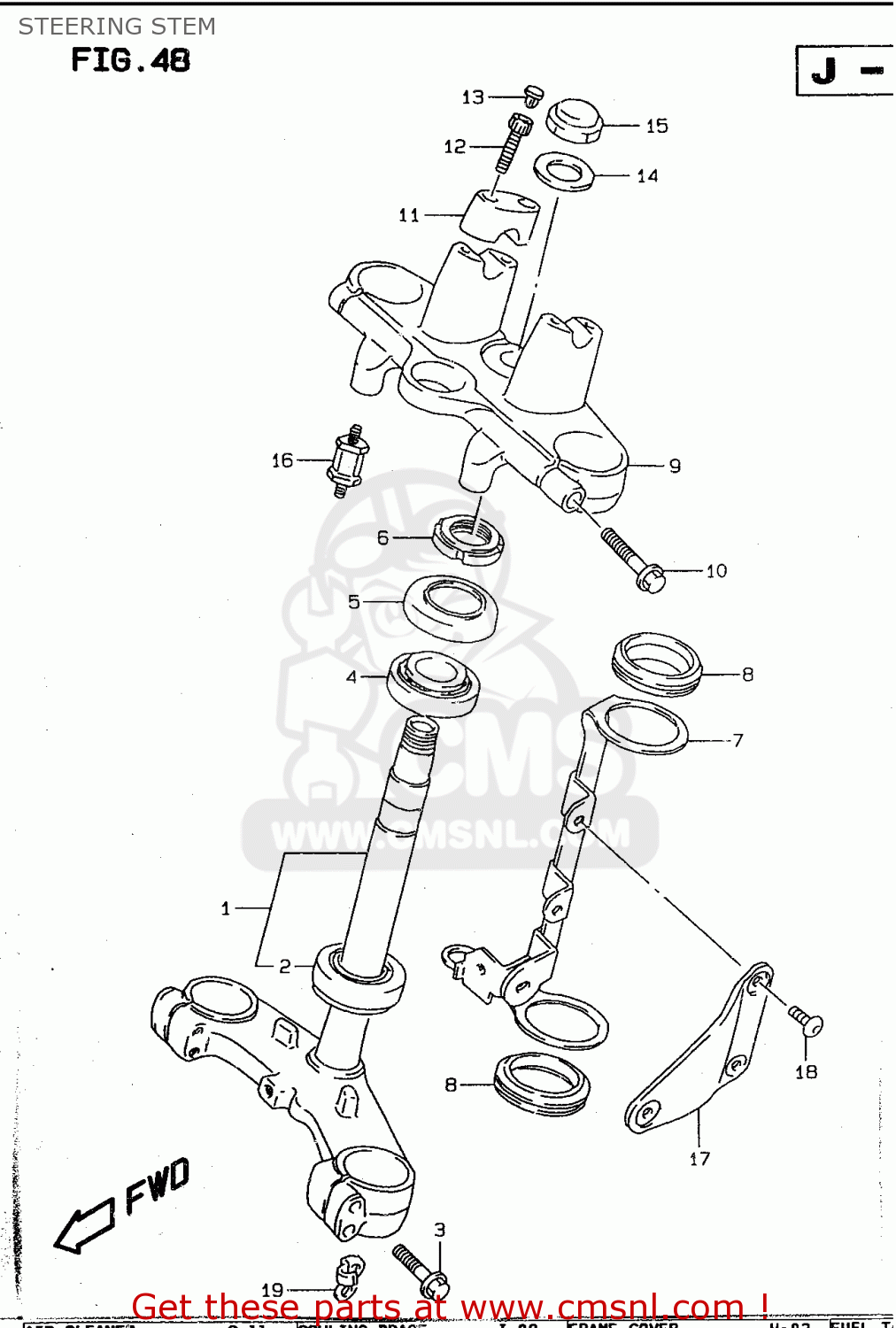

Steering stem diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

STEERING STEM GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

STEERING STEM GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1

5141026E00
ref: 1

STEM,STEERING

€ 411.00

2

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

3

0155008407
ref: 3

BOLT

€ 3.50

4

0926525019
ref: 4

BEARING(25X47X15)

€ 48.50

5

5164349002
ref: 5

SEAL,STEERING UPR DUST

€ 7.50

6

5163128000
ref: 6

NUT,STEERING STEM(25X44X10)

€ 12.50

7-1

5153026E00
ref: 7-1
GSF600S/US/T/UT/V/UV

BRACKET,HEADLAMP HOUSING,R

€ 132.50

7-2

5154026E00
ref: 7-2
GSF600S/US/T/UT/V/UV

BRACKET,HEADLAMP HOUSING,L

€ 32.50

8

5155338C00
ref: 8
GSF600S/US/T/UT/V/UV

DAMPER,HEADLAMP HSG BRACKET

€ 8.50

9

5131126E00
ref: 9

HEAD,STEERING STEM

€ 260.50

10

0155008407
ref: 10

BOLT

€ 3.50

11

5621111D100FP
ref: 11

HOLDER,HANDLE UPR

€ 16.00

12

0713008307
ref: 12

BOLT

€ 4.50

13

0925006011
ref: 13

CAP(OD:11)

€ 2.50

14

5135610D03
ref: 14

WASHER(22.5X35.9X1.6)

€ 3.00

15

5135324B00
ref: 15

NUT,CAP

€ 21.50

16

1778810D00
ref: 16

BOLT,SPEEDOMETER CUSHION

€ 8.50

17-1

5185126E00
ref: 17-1
GSF600S/US/T/UT/V/UV

STAY,HEADLAMP HOUSING,R

€ 40.00

17-2

5186126E00
ref: 17-2
GSF600S/US/T/UT/V/UV

STAY,HEADLAMP HOUSING,L

€ 35.50

18

0913906027
ref: 18
GSF600S/US/T/UT/V/UV

SCREW(6X12)

€ 3.00

19

3493826E20
ref: 19
GSF600ST/SUT/SV/SUV/

GUIDE,SPEEDOMETER CABLE

€ 7.00
