REAR CALIPER

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

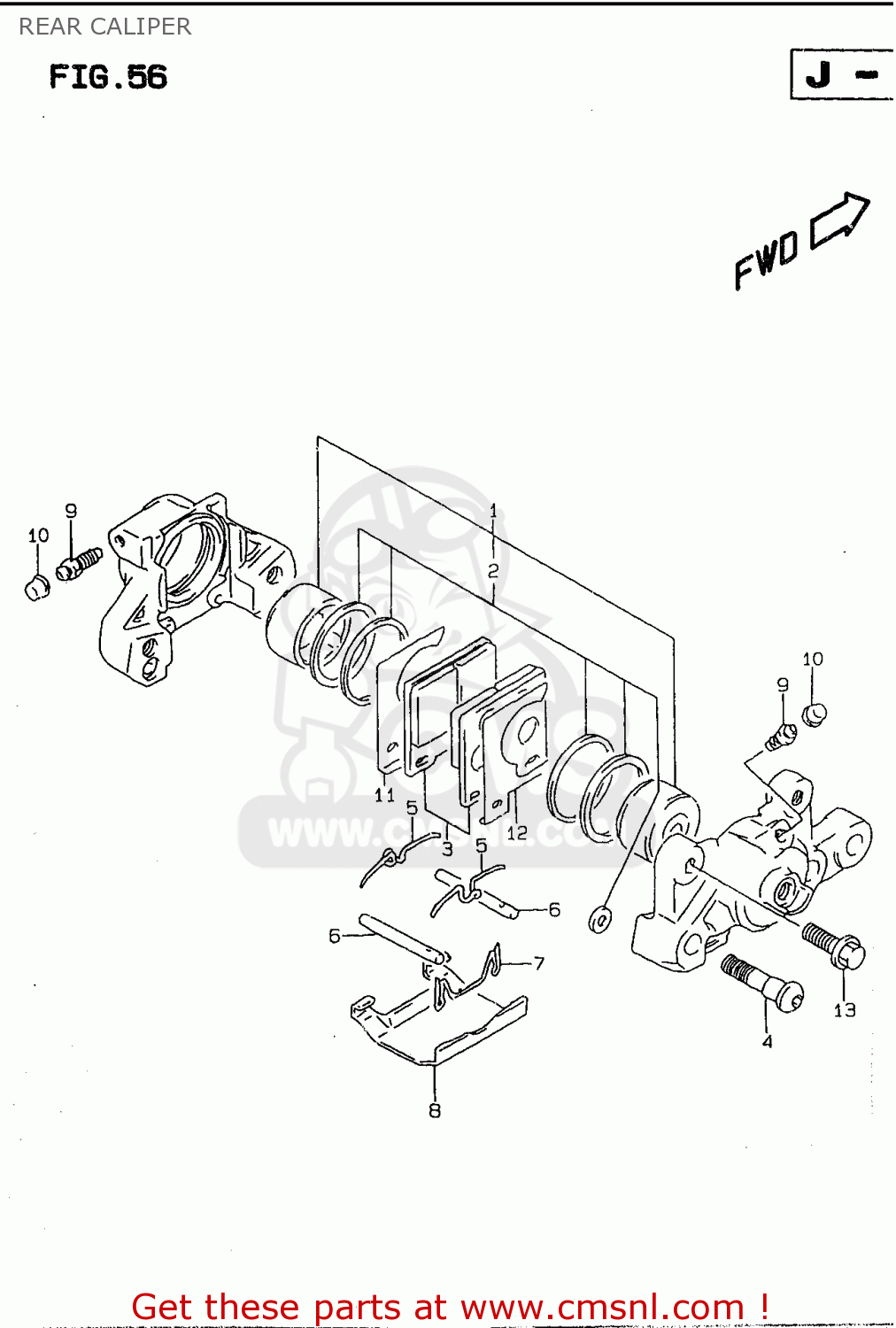

Rear caliper diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

REAR CALIPER GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

REAR CALIPER GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

0

6910005C41
ref: 0

CALIPER ASSEMBLY,REAR

€ 770.50

1-1

6910032810
ref: 1-1
MODEL S/T ~F.NO.GN77

PISTON SET

€ 122.50

1-2

6910005850
ref: 1-2
MODEL T F.NO.GN77A-1

PISTON SET

€ 122.50

2

6910032820
ref: 2

SEAL SET,PISTON

€ 26.00

3

6910005830
ref: 3

PAD SET (NAS)

€ 57.00

4-1

5914516700
ref: 4-1
MODEL S/T ~F.NO.GN77

BOLT,HOUSING

€ 8.00

4-2

5914505C50
ref: 4-2
MODEL T F.NO.GN77A-1

BOLT,HOUSING

€ 9.50

5

5914316700
ref: 5

SPRING

€ 7.50

6

6914146E01
ref: 6

PIN,PAD

€ 9.00

7

6914246E01
ref: 7

CLIP,PAD PIN

€ 14.00

8

5915116701
ref: 8

COVER

€ 13.50

9

5912118410
ref: 9

BLEEDER

€ 8.00

10

5515666310
ref: 10

CAP,BLEEDER PLUG

€ 6.00

11

5937120C00
ref: 11

SHIM,INNER

€ 7.50

12

5938120C00
ref: 12

SHIM,OUTER

€ 7.50

13

0155008303
ref: 13

BOLT

€ 3.00
