FRONT BRAKE HOSE

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

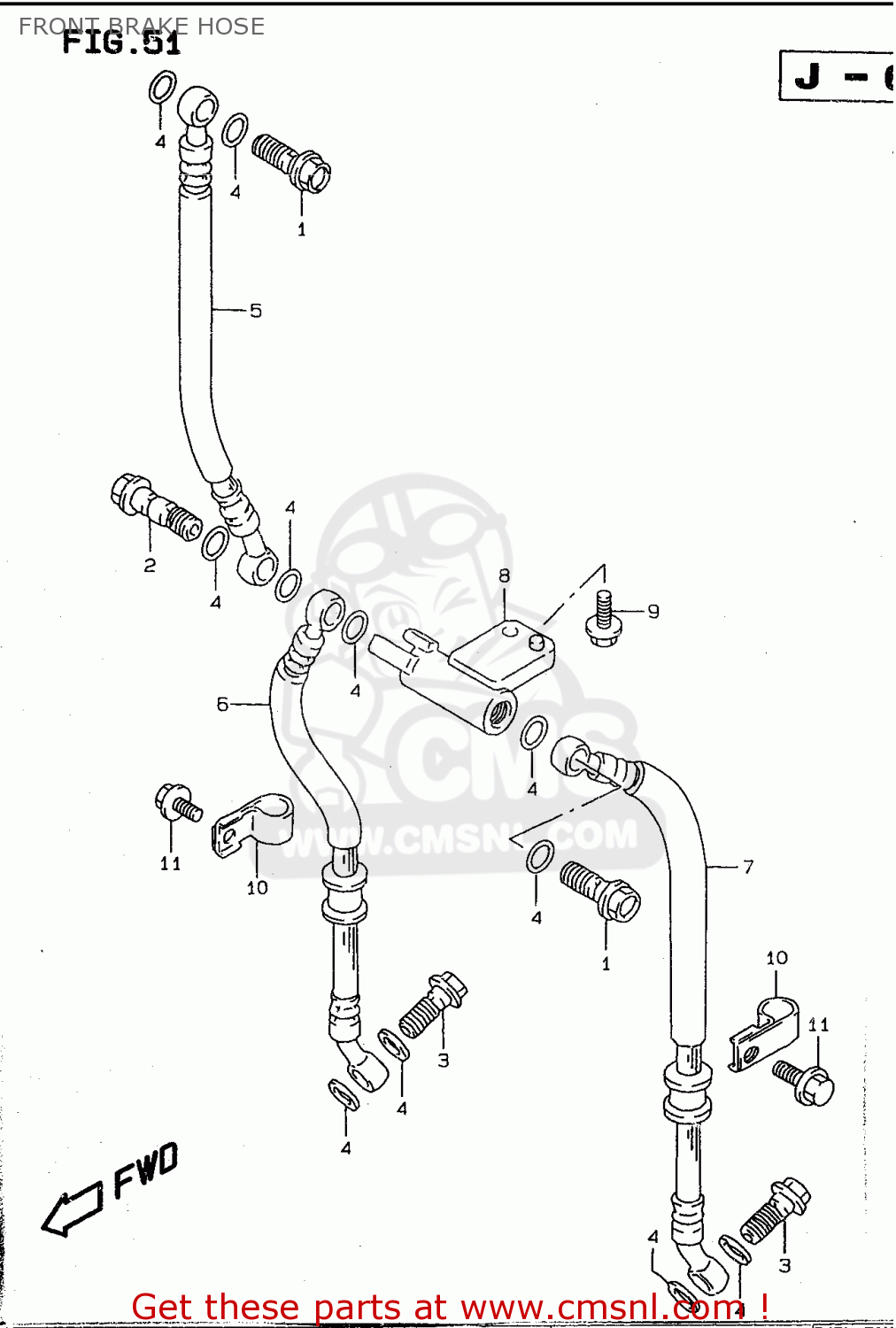

Front brake hose diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

FRONT BRAKE HOSE GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

FRONT BRAKE HOSE GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

1-1

0936010039
ref: 1-1
MODEL S/T

BOLT UNION

€ 6.50

1-2

0936010041
ref: 1-2
MODEL V/W

BOLT UNION

€ 6.50

2-1

0936010018
ref: 2-1
MODEL S/T

BOLT UNION

€ 7.00

2-2

0936010043
ref: 2-2
MODEL V/W

BOLT UNION

€ 6.50

3-1

0936010040
ref: 3-1
MODEL S/T

BOLT UNION

€ 5.00

3-2

0936010042
ref: 3-2
MODEL V/W

BOLT UNION

€ 5.00

4

0916110009
ref: 4

WASHER(10X15X1.5)

€ 2.00

5-1

5948026E00
ref: 5-1
GSF600S/US/T/UT/V/UV

HOSE,FR BRAKE NO.1

€ 48.00

5-2

5948026E10
ref: 5-2
GSF600ST/SUT/SV/SUV/

HOSE COMP,FRONT BRAKE

€ 65.00

6

5924026E00
ref: 6

HOSE,FR BRAKE NO.2,R

€ 70.50

7

5944026E00
ref: 7

HOSE,FR BRAKE NO.2,L

€ 81.00

8

5949117E00
ref: 8

JOINT,BRAKE HOSE

€ 68.50

9

0155006163
ref: 9

BOLT

€ 2.50

10

5926845D00
ref: 10

CLAMP,FR BRAKE HOSE NO.2

€ 9.00

11

0155006123
ref: 11

BOLT

€ 2.50
