SEAT (MODEL S)

GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

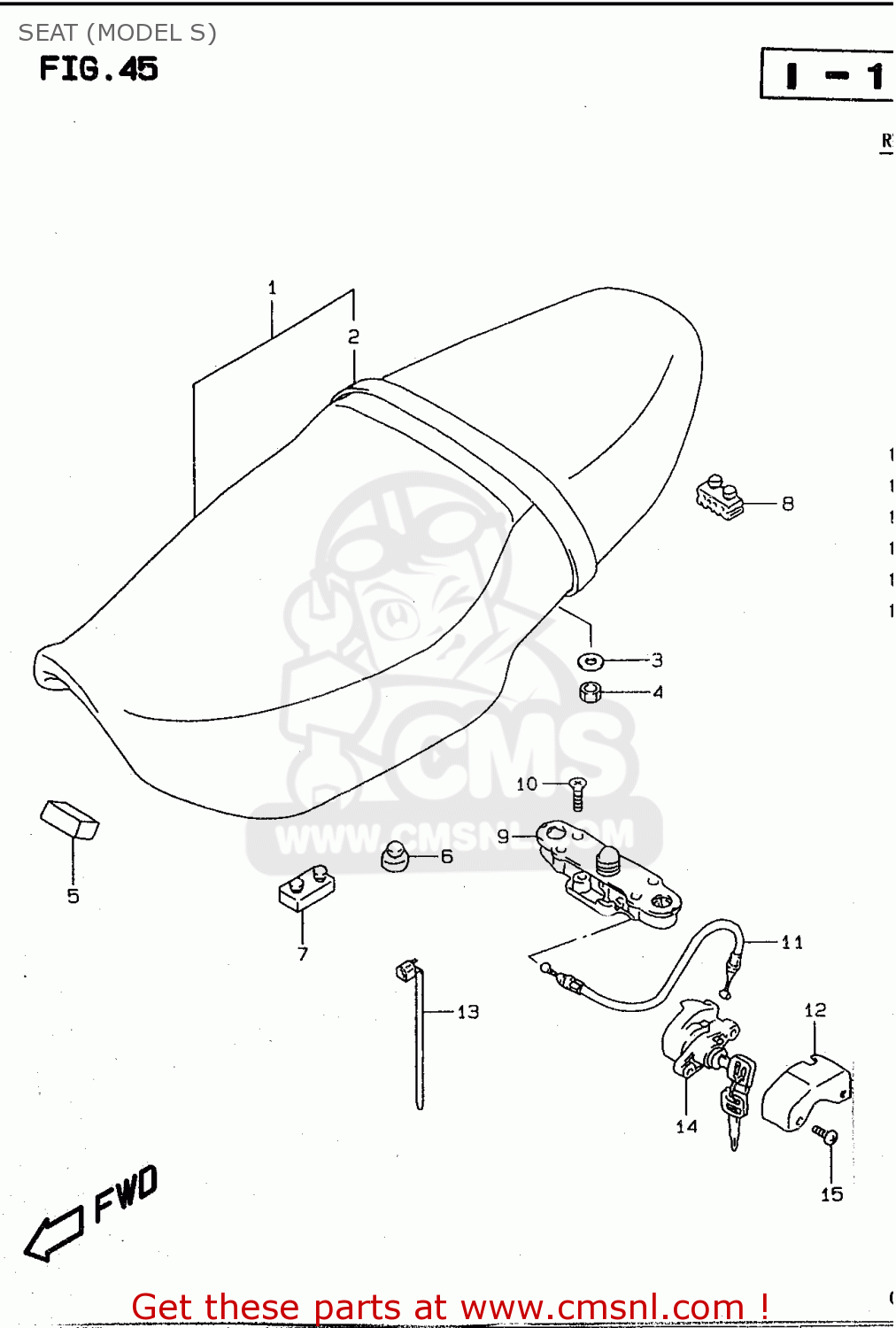

Seat (model s) diagram GSF600 1999 (X) (E02 E04 E17 E18 E22 E25 E34) / P37

prices are in EUR

ref

part #

description

quantity

4510026E00P21
ref: 1

SEAT ASSEMBLY

€ 392.50

4518026E00P21
ref: 2

BAND ASSEMBLY,SEAT

€ 29.50

0821206201
ref: 3

WASHER

€ 1.50

0831610063
ref: 4

NUT

€ 2.50

4525515510
ref: 5

CUSHION,TOOL(40X30X15)

€ 4.00

0932110012
ref: 6

CUSHION

€ 3.00

0932108006
ref: 7

CUSHION

€ 3.00

4514931300
ref: 8

CUSHION,SEAT(40X20X15)

€ 2.00

4522013601
ref: 9

LOCK ASSY,SEAT STRIKER

€ 47.00

0211206303
ref: 10

SCREW 6X30

€ 2.50

4528008A00
ref: 11

CABLE,SEAT LOCK

€ 13.00

4528926E00
ref: 12

GUARD,SEAT LOCK

€ 13.00

0940718403
ref: 13

CLAMP L:165

€ 2.50

9570012852
ref: 14

LOCK SET,SEAT

€ 110.50

0913906092
ref: 15

SCREW(6X14)

€ 3.50
