CLUTCH

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

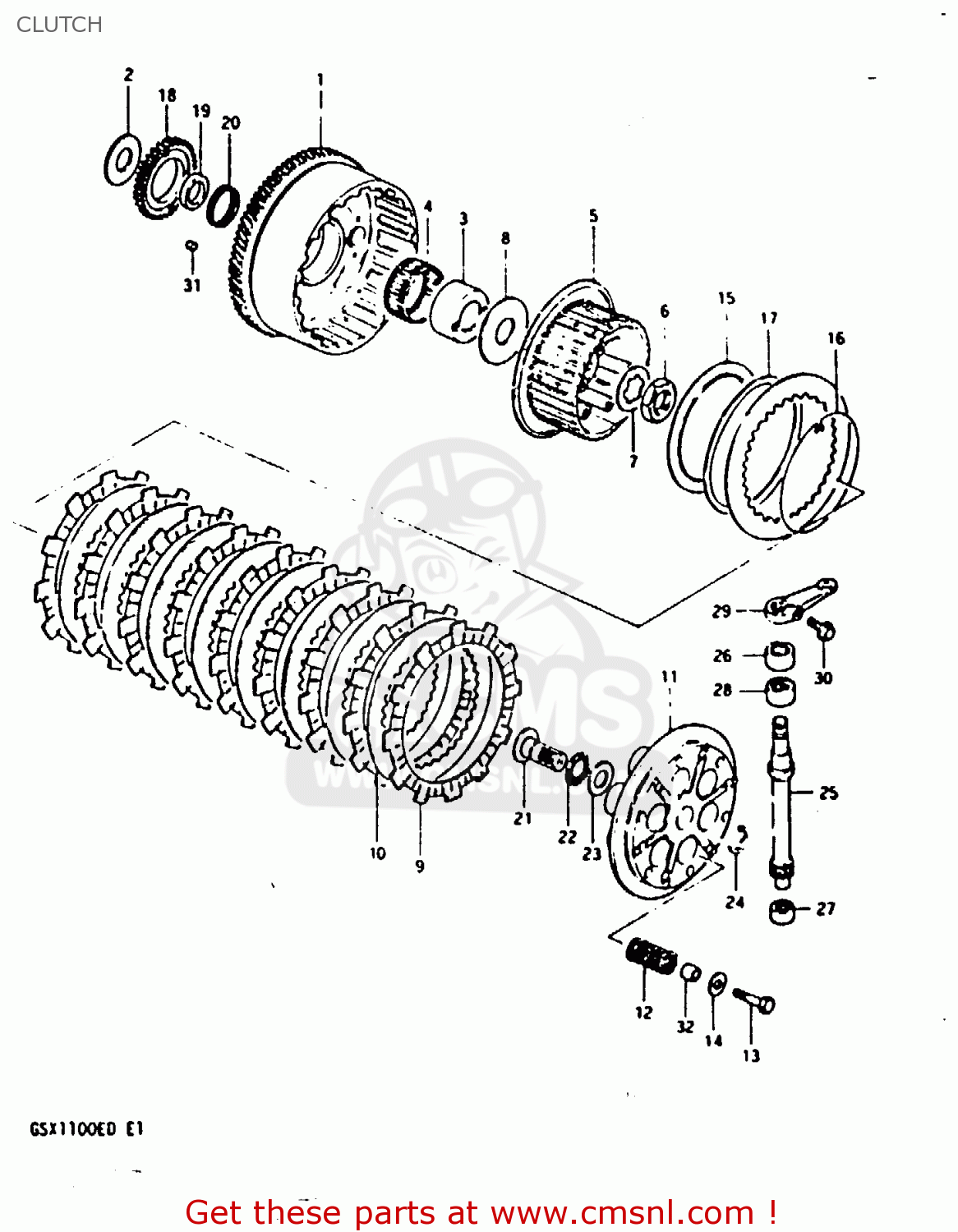

Clutch diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CLUTCH GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

CLUTCH GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

2120049202
ref: 1-1
NT:87, MODEL Z

GEAR ASSEMBLY,PRIMARY DRIVE

€ 381.50

1-2

2120049204
ref: 1-2
NT:87, MODEL D

GEAR ASSEMBLY,PRIMARY DRIVE

€ 381.50

2

0916025023
ref: 2

WASHER

€ 9.50

3

2125149200
ref: 3

SPACER

€ 65.50

4

0926351001
ref: 4

BEARING

€ 37.00

5

2141149203
ref: 5

HUB,CLUTCH SLEEVE

€ 151.50

6

0914024004
ref: 6

NUT

€ 4.50

7

0916725007
ref: 7

WASHER,LOCK

€ 7.50

8

0916025022
ref: 8

WASHER(25X66X3.5)

€ 13.50

9-1

2144149200
ref: 9-1
MODEL Z

PLATE,CLUTCH DRIVE (MCA)

€ 16.00

9-2

2144149210
ref: 9-2
MODEL D

PLATE,CLUTCH DRIVE (NAS)

€ 25.50

10-1

2145149200
ref: 10-1
MODEL Z

PLATE,CLUTCH DRIVEN (NAS)

€ 6.00

10-2

2145149200
ref: 10-2
MODEL D

PLATE,CLUTCH DRIVEN (NAS)

€ 6.00

11

2146249201
ref: 11

DISC,CLUTCH PRESSURE

€ 100.00

12-1

0944019007
ref: 12-1
MODEL Z

SPRING

€ 3.00

12-2

0944019014
ref: 12-2
MODEL D

SPRING

€ 4.50

13

0110706308
ref: 13

BOLT

€ 2.50

14

0916006020
ref: 14

WASHER

€ 2.00

15

2147149100
ref: 15

SEAT,WAVE WASHER

€ 8.00

16

2148145100
ref: 16

RING,STOPPER

€ 5.00

17

0916400003
ref: 17

WASHER

€ 9.00

18

1632149000
ref: 18

GEAR,ENG OIL PUMP DRIVE(NT:34)

€ 78.50

19

1632545001
ref: 19

SPACER,OIL PUMP DRIVE GEAR

€ 13.50

20

0926336002
ref: 20

BEARING(36X40X10)

€ 24.50

21

2316549200
ref: 21

RACK,CLUTCH RELEASE

€ 21.00

22

0926315003
ref: 22

BEARING(15X28X2)

€ 7.00

23

0916015015
ref: 23

WASHER

€ 4.00

24

0833211128
ref: 24

E RING 12MM

€ 2.00

25

2326145400
ref: 25

PINION,CLUTCH RELEASE

€ 475.50

26

0928512002
ref: 26

OIL SEAL

€ 7.00

27

0926312014
ref: 27

BEARING(12X19X12)

€ 11.00

28

0926315012
ref: 28

BEARING(15X22X12)

€ 11.50

29-1

2327149001
ref: 29-1
MODEL Z

ARM,CLUTCH RELEASE

€ 31.50

29-2

2327145400
ref: 29-2
MODEL D

ARM,CLUTCH RELEASE

€ 31.50

30

0154706208
ref: 30

BOLT (6X20)

€ 2.50

31

2121549000
ref: 31

CUSHION,PRIMARY DRIVEN GEAR

€ 3.00

32

0918006088
ref: 32

SPACER

€ 5.50
