HEADLAMP (GSX1100Z/EZ/D/ED/XD/EXD)

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

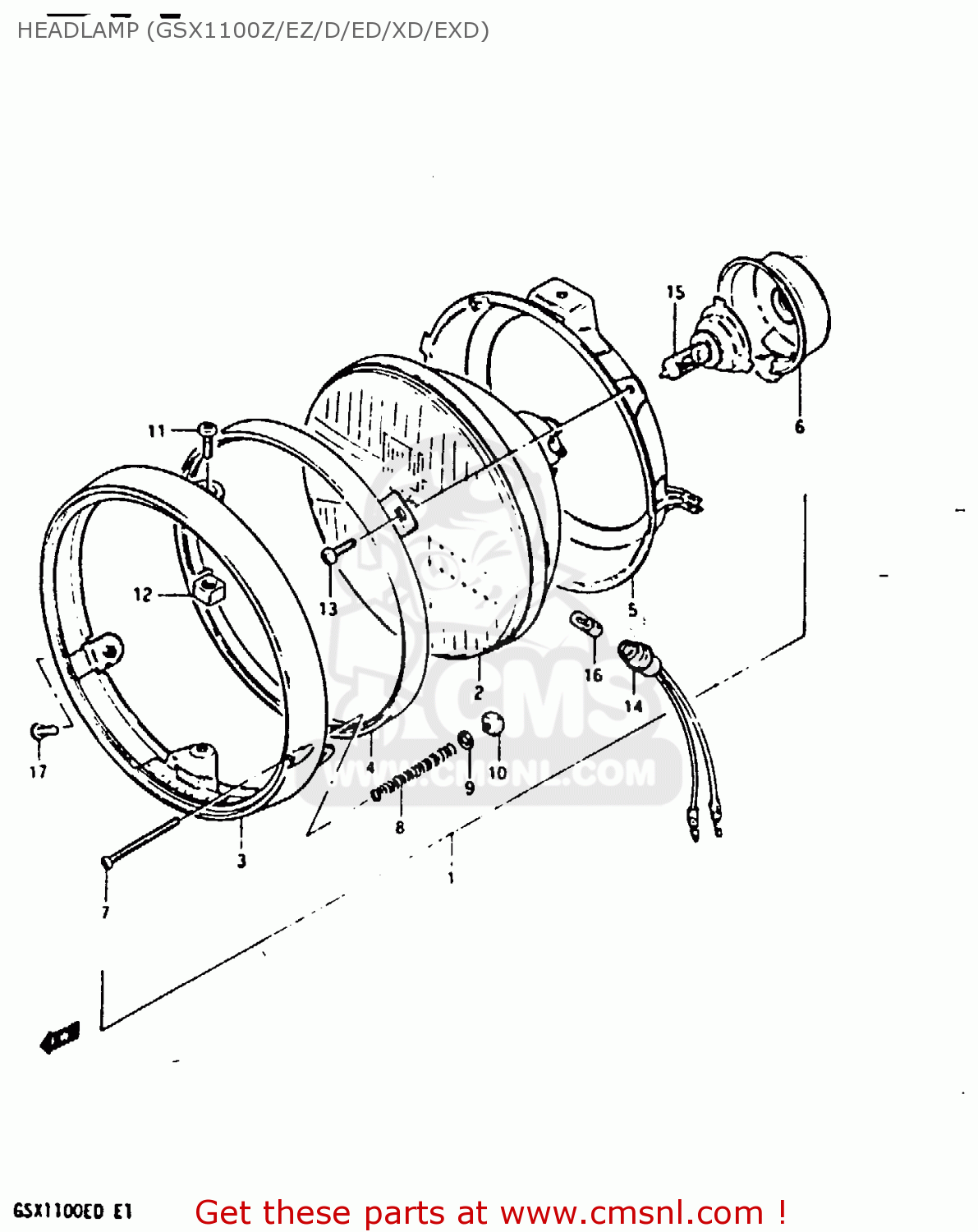

Headlamp (gsx1100z/ez/d/ed/xd/exd) diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

HEADLAMP (GSX1100Z/EZ/D/ED/XD/EXD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

HEADLAMP (GSX1100Z/EZ/D/ED/XD/EXD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1-1

NOTUSED
ref: 1-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-2

3510045920999
ref: 1-2
E2

HEADLAMP ASSY

€ 0.00

1-3

NOTUSED
ref: 1-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

1-4

NOTUSED
ref: 1-4

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-1

NOTUSED
ref: 2-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-2

3512145920
ref: 2-2
E2

UNIT

€ 164.50

2-3

NOTUSED
ref: 2-3

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

3511145900
ref: 3

RIM

€ 69.50

4

3512745900
ref: 4

RETAINER

€ 30.50

5

3513045900
ref: 5

RING,MOUNTING

€ 126.00

6

3517349200
ref: 6

COVER,HEADLAMP SOCKET

€ 12.50

7

3515145900
ref: 7

SCREW

€ 4.00

8

3515445900
ref: 8

SPRING,HEADLAMP ADJUST

€ 3.50

9

3515727630
ref: 9

WASHER

€ 2.50

10

3513545600
ref: 10

NUT

€ 3.00

11

0211205128
ref: 11

SCREW

€ 2.50

12

3513545900
ref: 12

NUT

€ 2.50

13

0211204088
ref: 13

SCREW

€ 1.50

14

3611845900
ref: 14
E2, E4, E15, E16, E1

SOCKET,PARKING

€ 13.00

15-1

0947112060
ref: 15-1
EXECUTED LOCALLY

BULB(12V60/55W,H4)

€ 8.00

15-2

NOTUSED
ref: 15-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

16

0947112063
ref: 16
E2, E4, E15, E16, E1

BULB(12V4W)

€ 6.00

17

0912705013
ref: 17

SCREW(5X12)

€ 2.50

all assemblies
