SIGNAL GENERATOR

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

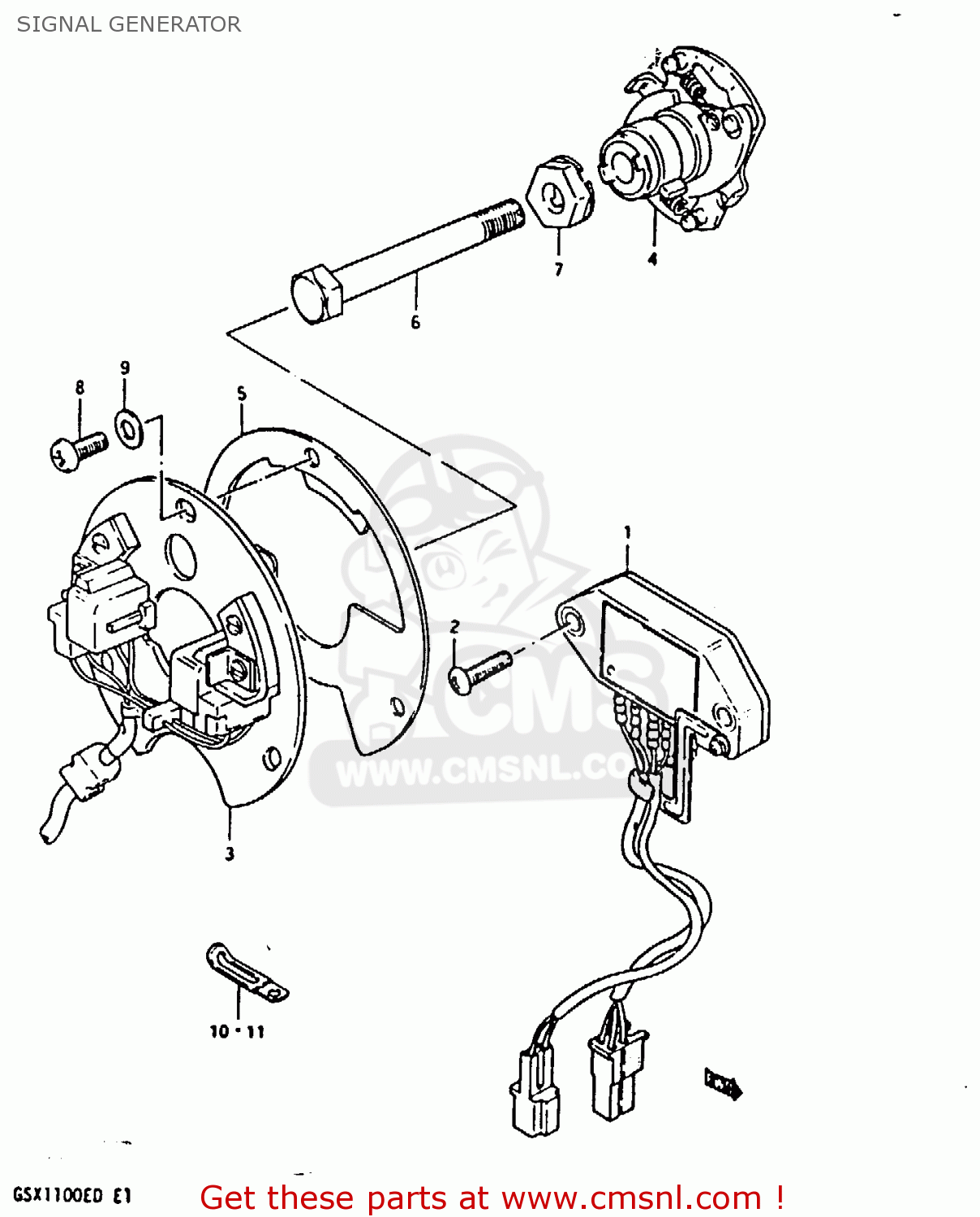

Signal generator diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

3290045411
ref: 1

IGNITER UNIT

€ 492.50

0211206258
ref: 2

SCREW

€ 2.00

3311045110
ref: 3

SIGNAL GENERATOR ASSEMBLY

€ 296.50

3312049210
ref: 4

GOVERNOR ASSEMBLY

€ 174.00

3337145100
ref: 5

PLATE,TIMING

€ 10.50

0110708658
ref: 6

BOLT

€ 3.00

3346547000
ref: 7

WASHER

€ 19.00

0912505024
ref: 8

SCREW(5X12)

€ 2.00

0916005027
ref: 9

WASHER

€ 2.50

0940406401
ref: 10

CLAMP L:35

€ 2.50

0940408401
ref: 11

CLAMP

€ 3.50
