STARTING MOTOR (GSX1100ESD)

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

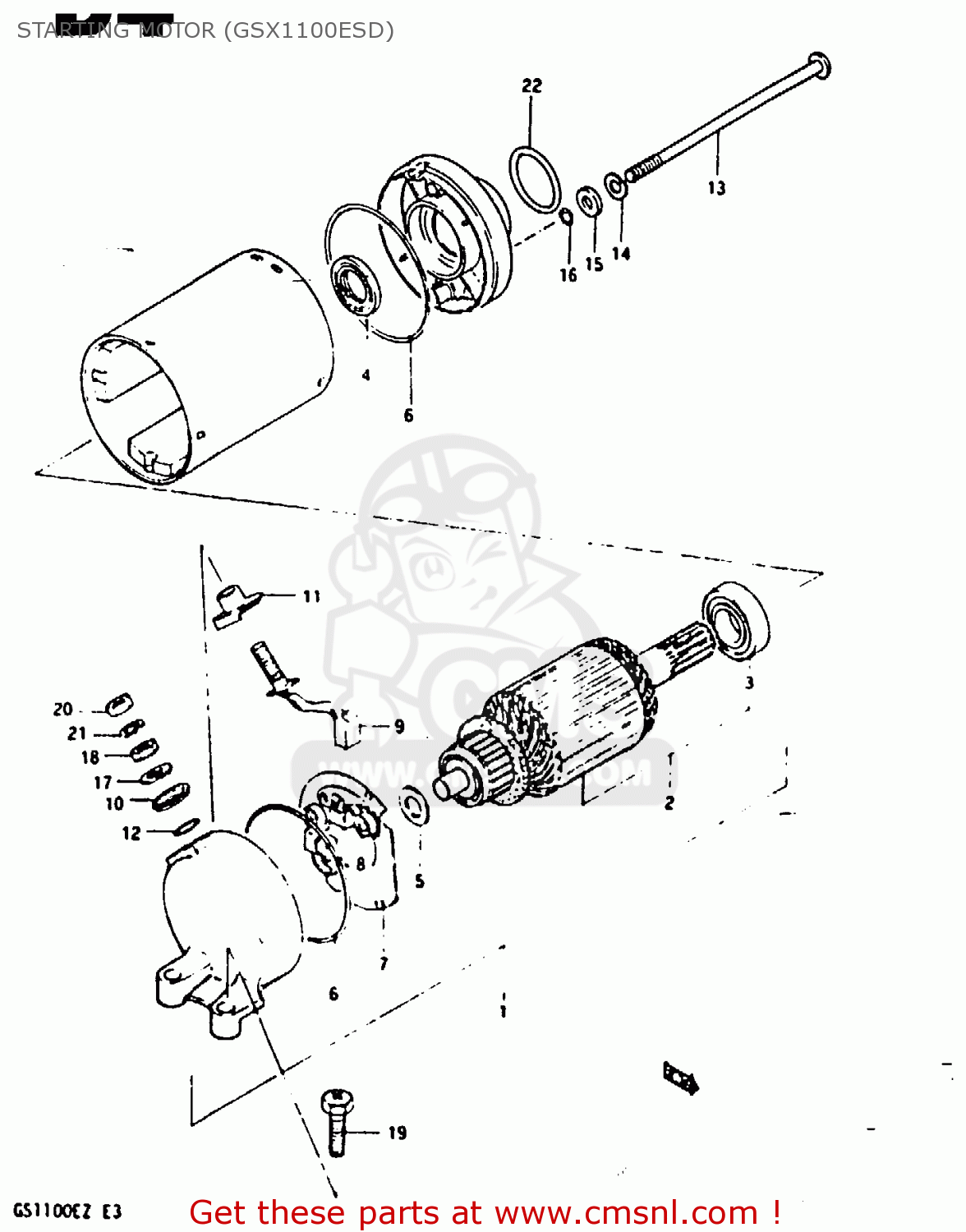

Starting motor (gsx1100esd) diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STARTING MOTOR (GSX1100ESD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

STARTING MOTOR (GSX1100ESD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

3110049500
ref: 1

MOTOR ASSEMBLY,STARTING

€ 704.50

2

3131049500
ref: 2

ARMATURE

€ 76.00

3

3115545010
ref: 3

BEARING

€ 21.00

4

3115349210
ref: 4

SEAL,OIL

€ 15.00

5

3136147010
ref: 5

SHIM,ARMATURE

€ 3.50

6

3126444110
ref: 6

O RING

€ 8.00

7

3113244110
ref: 7

HOLDER,BRUSH

€ 47.00

8

3113565010
ref: 8

SPRING

€ 3.00

9

3113038300
ref: 9

BRUSH SUB ASSY,STARTING MOTOR

€ 12.50

10

3117238300
ref: 10

BUSHING

€ 4.00

11

3117138300
ref: 11

BUSH,B

€ 5.50

12

3114338300
ref: 12

O RING

€ 3.50

13

3128105300
ref: 13

BOLT

€ 8.50

14

0832121058
ref: 14

LOCK WASHER

€ 2.00

15

3116138300
ref: 15

WASHER

€ 2.50

16

3115638300
ref: 16

O RING

€ 3.00

17

0832221068
ref: 17

WASHER

€ 2.00

18

0831022068
ref: 18

NUT 6MM

€ 2.50

19

0912806024
ref: 19

SCREW (6X25)

€ 2.50

20

0831022068
ref: 20

NUT 6MM

€ 2.50

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0928024003
ref: 22

O RING(D:3,ID:24.5)

€ 2.00
