GEAR SHIFTING

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

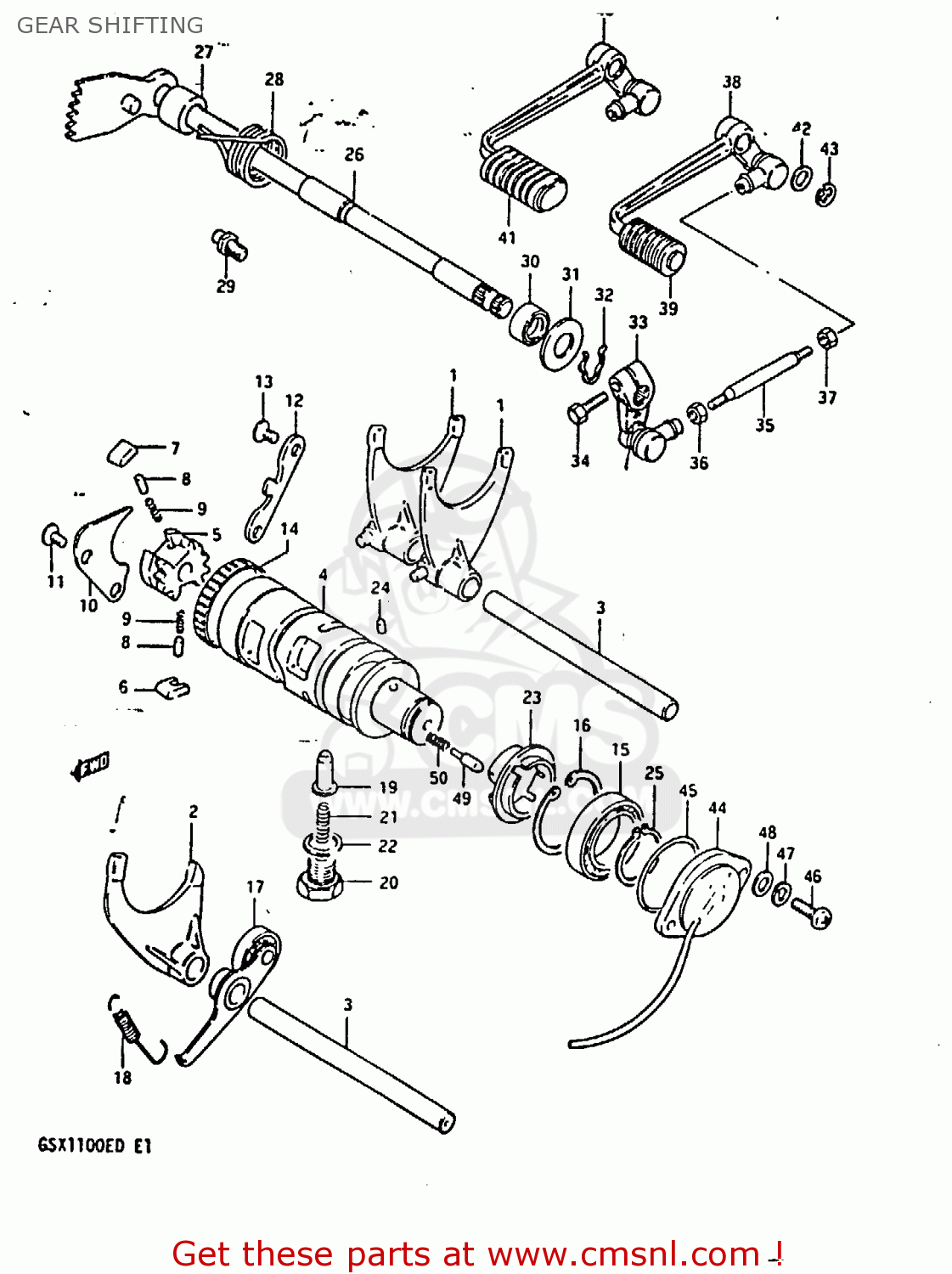

Gear shifting diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

GEAR SHIFTING GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
GEAR SHIFTING GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
GEAR SHIFTING GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)
prices are in EUR
ref
part #
description
quantity
1
2521149200
ref: 1
FORK,GEAR SHIFT NO.1
2521149200
€ 87.00
2
2523149201
ref: 2
FORK,GEAR SHIFT NO.2
2523149201
€ 106.00
3
2541149200
ref: 3
SHAFT,GEAR SHIFT FORK
€ 13.00
4
2531049200
ref: 4
CAM,GEAR SHIFT
€ 161.50
5
2532211000
ref: 5
RETAINER,GEAR SHIFT CAM
2532211000
€ 14.50
6
2532311000
ref: 6
PAWL,GEAR SHIFT NO.1
€ 6.00
7
2532411000
ref: 7
PAWL,GEAR SHIFT NO.2
2532411000
€ 6.00
8
0926105003
ref: 8
PIN(5X8)
0926105003
€ 1.50
9
0944004003
ref: 9
SPRING
0944004003
€ 1.50
10
2533149200
ref: 10
LIFTER,GEAR SHIFT PAWL
2533149200
€ 43.50
11
0212206128
ref: 11
SCREW
0212206128
€ 3.00
12
2534118000
ref: 12
GUIDE,GEAR SHIFT CAM
2534118000
€ 51.50
13
0212206128
ref: 13
SCREW
0212206128
€ 3.00
14
0926343001
ref: 14
BEARING(43X49X12)
0926343001
€ 30.00
15
0811069050
ref: 15
BALL BEARING
0811069050
€ 36.00
16
0833141428
ref: 16
CIRCLIP,42MM
€ 1.50
17
2535049200
ref: 17
TO 25350-49201
STOPPER,GEAR SHIFTING
2535049200
€ 9.00
18
0944308019
ref: 18
SPRING
0944308019
€ 2.50
19
2535130010
ref: 19
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
20
2535430000
ref: 20
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
21
0944006020
ref: 21
SPRING
0944006020
€ 14.00
22
0916814004
ref: 22
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
23
2538149200
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
2538149200
€ 19.00
24
0621104063
ref: 24
PIN 4X6
0621104063
€ 2.00
25
0833131258
ref: 25
CIRCLIP,25MM
€ 2.00
26
2551045400
ref: 26
SHAFT,GEAR SHIFT
2551045400
€ 88.00
27
0918012068
ref: 27
SPACER(12X20X15.3)
0918012068
€ 3.00
28
0944426017
ref: 28
SPRING
0944426017
€ 5.00
29
2567101000
ref: 29
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
30
0928512002
ref: 30
OIL SEAL
0928512002
€ 7.00
31
0916012020
ref: 31
WASHER (12.5X27X1.6)
0916012020
€ 2.00
32
0938412001
ref: 32
SPRING,RETAINER
0938412001
€ 2.00
33
2552047000
ref: 33
ARM,GEAR SHIFT LINK
€ 53.50
34
0110706208
ref: 34
BOLT
0110706208
€ 2.00
35
2552533200
ref: 35
ROD,GEAR SHIFT LINK
2552533200
€ 6.00
36
0914006011
ref: 36
NUT
0914006011
€ 1.50
37
0831011068
ref: 37
NUT
0831011068
€ 2.50
38
2560049500
ref: 38
MODEL Z
LEVER ASSEMBLY,GEAR SHIFTING
2560049500
€ 51.50
39
2565249000
ref: 39
MODEL Z
RUBBER,GEAR SHIFT PEDAL
€ 8.00
40
2560049510
ref: 40
MODEL D
LEVER ASSEMBLY,GEAR SHIFTING
€ 51.50
41
2565249300
ref: 41
MODEL D
RUBBER,PEDAL
2565249300
€ 5.50
42
0916012011
ref: 42
WASHER(12.5X20X1)
0916012011
€ 1.50
43
0833131128
ref: 43
CIRCLIP
0833131128
€ 2.00
44
3772049210
ref: 44
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 78.50
45
0928036001
ref: 45
O RING(D:2.4,ID:36.5)
0928036001
€ 4.50
46
0211205128
ref: 46
SCREW
€ 2.50
47
0832121058
ref: 47
LOCK WASHER
0832121058
€ 2.00
48
0832221058
ref: 48
WASHER
€ 2.50
49
0920905011
ref: 49
PIN(5X15.5)
0920905011
€ 2.00
50
0944004010
ref: 50
SPRING
0944004010
€ 1.50
