REAR FENDER

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

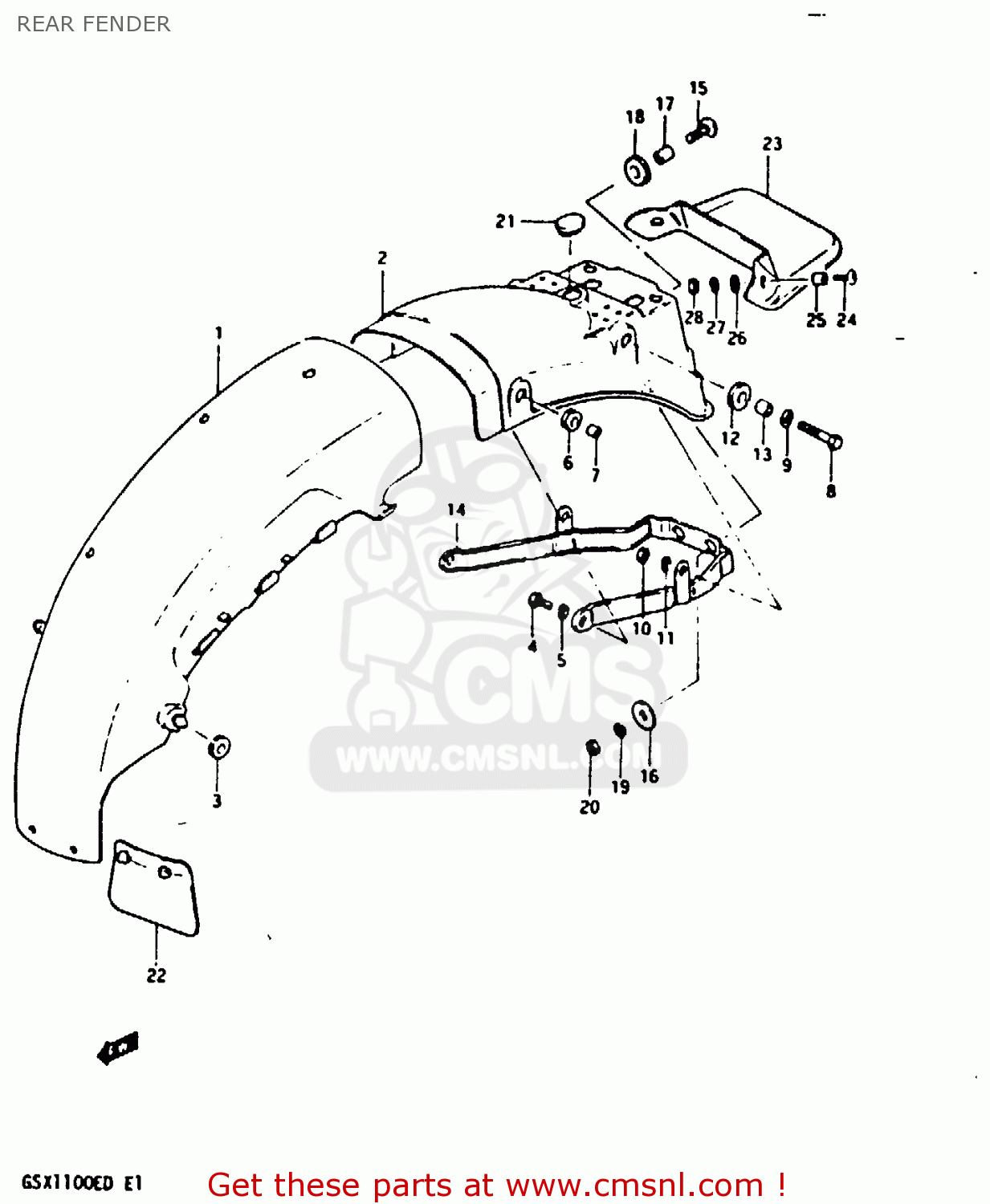

Rear fender diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR FENDER GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR FENDER GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

6311249003
ref: 1

FENDER,REAR

€ 82.50

2

6311349000291
ref: 2
BLACK

BODY,RR FENDER RR

€ 80.50

3

0932008013
ref: 3

CUSHION

€ 4.00

4

0110706208
ref: 4

BOLT

€ 2.00

5

0832121068
ref: 5

LOCK WASHER

€ 2.50

6

0932008007
ref: 6

CUSHION

€ 4.00

7

0918006038
ref: 7

SPACER(6.1X9X7.5)

€ 2.00

8

0120408307
ref: 8

BOLT

€ 2.50

9

0832221088
ref: 9

WASHER

€ 2.00

10

0831012088
ref: 10

NUT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

0932012011
ref: 12

CUSHION

€ 3.00

13

0918008021
ref: 13

SPACER (8.2X12X7.5)

€ 3.00

14

6312049000
ref: 14

REINFORCEMENT,REAR FENDER

€ 28.50

15

0214206207
ref: 15

SCREW

€ 2.00

16

0916006012
ref: 16

WASHER(6,5X22X1.6)

€ 2.00

17

0918006011
ref: 17

SPACER (6.1X9X9)

€ 2.00

18

0932008013
ref: 18

CUSHION

€ 4.00

19

0832121068
ref: 19

LOCK WASHER

€ 2.50

20

0831011068
ref: 20

NUT

€ 2.50

21

0925012008
ref: 21

CAP

€ 0.00

22

6341131900
ref: 22

GUIDE,RR FENDER MUD

€ 8.00

23

6331149030
ref: 23
OPT

EXTENSION,REAR FENDER

€ 38.50

24

0912506009
ref: 24
OPT

SCREW (6X15)

€ 3.00

25

0918006001
ref: 25
OPT

SPACER(6.2X8.3X5.7)

€ 2.00

26

0916006028
ref: 26
OPT

WASHER(6.5X18X1)

€ 1.50

27

0832121068
ref: 27
OPT

LOCK WASHER

€ 2.50

28

0831011068
ref: 28
OPT

NUT

€ 2.50
