REAR SWINGING ARM (GSX1100Z/D/XD)

GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

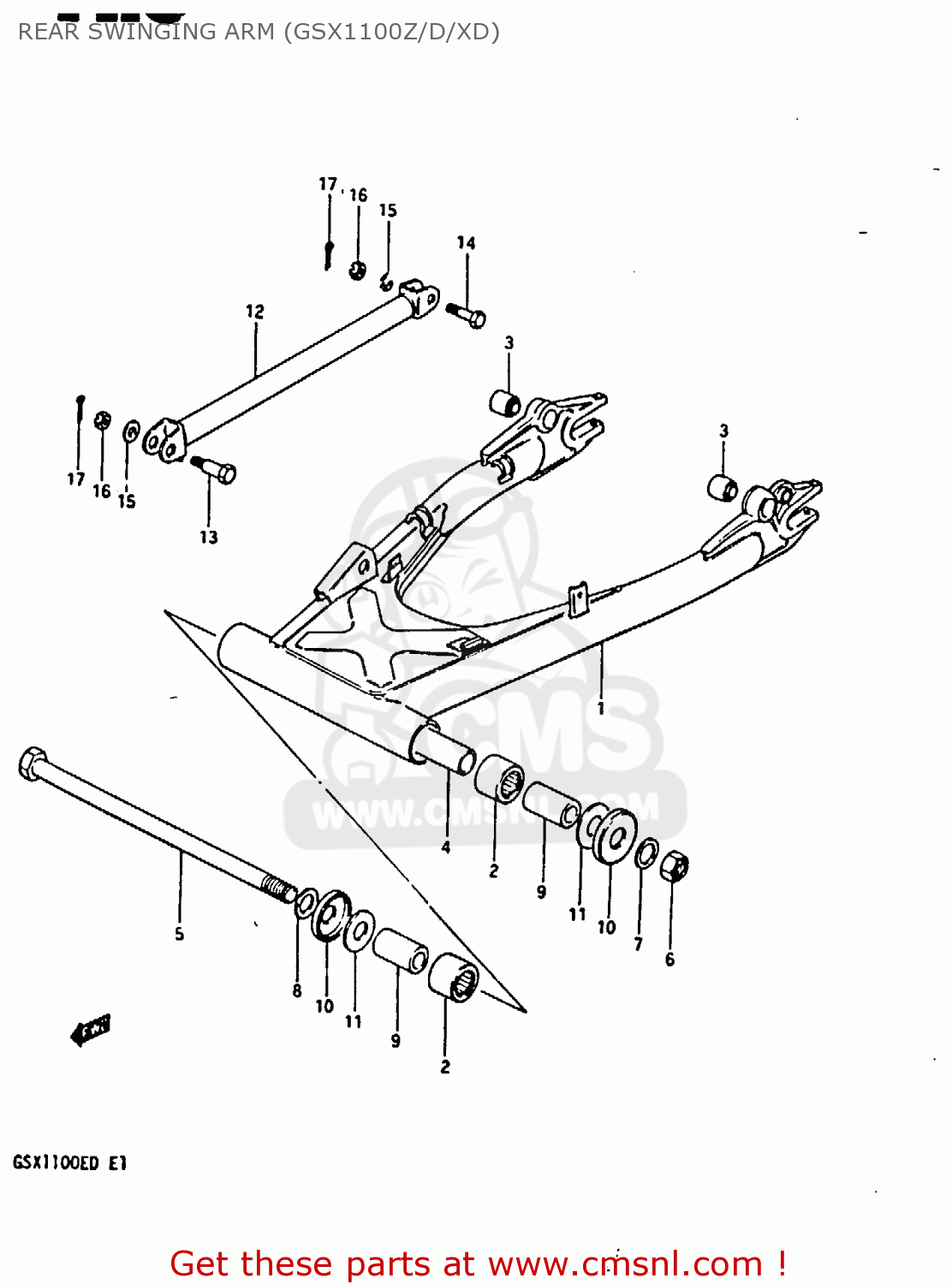

Rear swinging arm (gsx1100z/d/xd) diagram GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR SWINGING ARM (GSX1100Z/D/XD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

REAR SWINGING ARM (GSX1100Z/D/XD) GSX1100E 1982 (Z) GENERAL EXPORT UNITED KINGDOM (E01 E02)

prices are in EUR

ref

part #

description

quantity

1

6110049812019
ref: 1

SWING ARM ASSEMBLY,REAR

€ 261.50

2

0926325024
ref: 2

BEARING(25X33X30)

€ 31.50

3

0931910008
ref: 3

BUSH

€ 8.00

4

6128249000
ref: 4

SPACER,RR SWGARM PIVOT CTR

€ 24.00

5-1

6121149200
ref: 5-1
MODEL Z

SHAFT,REAR SWING ARM

€ 43.50

5-2

6121149000
ref: 5-2
MODEL D

SHAFT,REAR SWING ARM

€ 45.00

6

0831921168
ref: 6

NUT 16MM

€ 5.00

7

0832211168
ref: 7

WASHER

€ 2.00

8

0832211168
ref: 8
MODEL Z

WASHER

€ 2.00

9

6125149000
ref: 9

SPACER,RR SWGARM PIVOT

€ 17.50

10

6126249000
ref: 10

COVER,RR SWGARM DUST SEAL

€ 17.50

11

0821116381
ref: 11

WASHER

€ 2.50

12

6431049200019
ref: 12

LINK,RR TORQUE

€ 22.50

13

0911110011
ref: 13

BOLT

€ 8.00

14

0910110017
ref: 14

BOLT(10X39)

€ 5.00

15

0832211108
ref: 15

WASHER

€ 2.50

16

0831441108
ref: 16

NUT

€ 2.50

17

0411120208
ref: 17

PIN 20X20

€ 1.50
